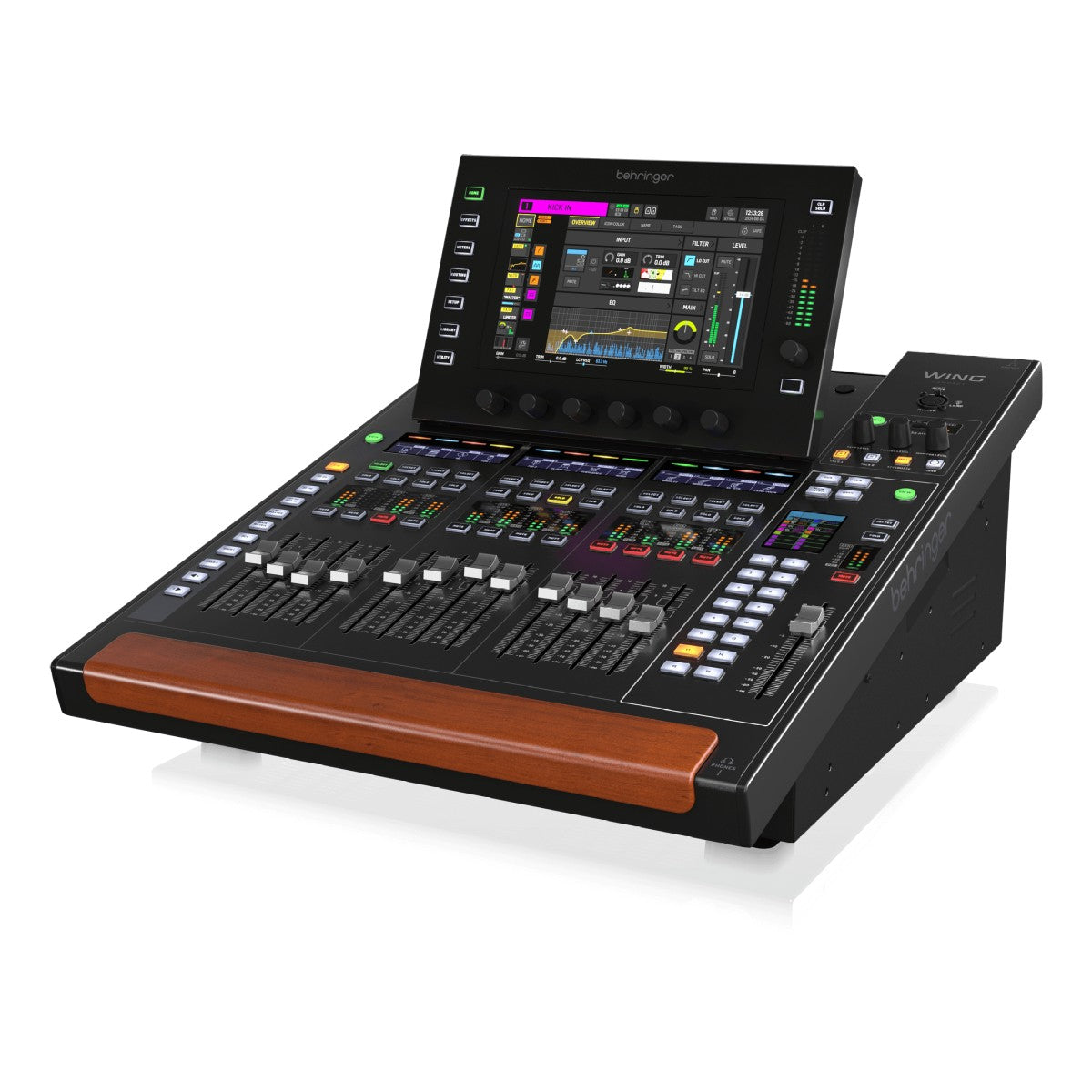

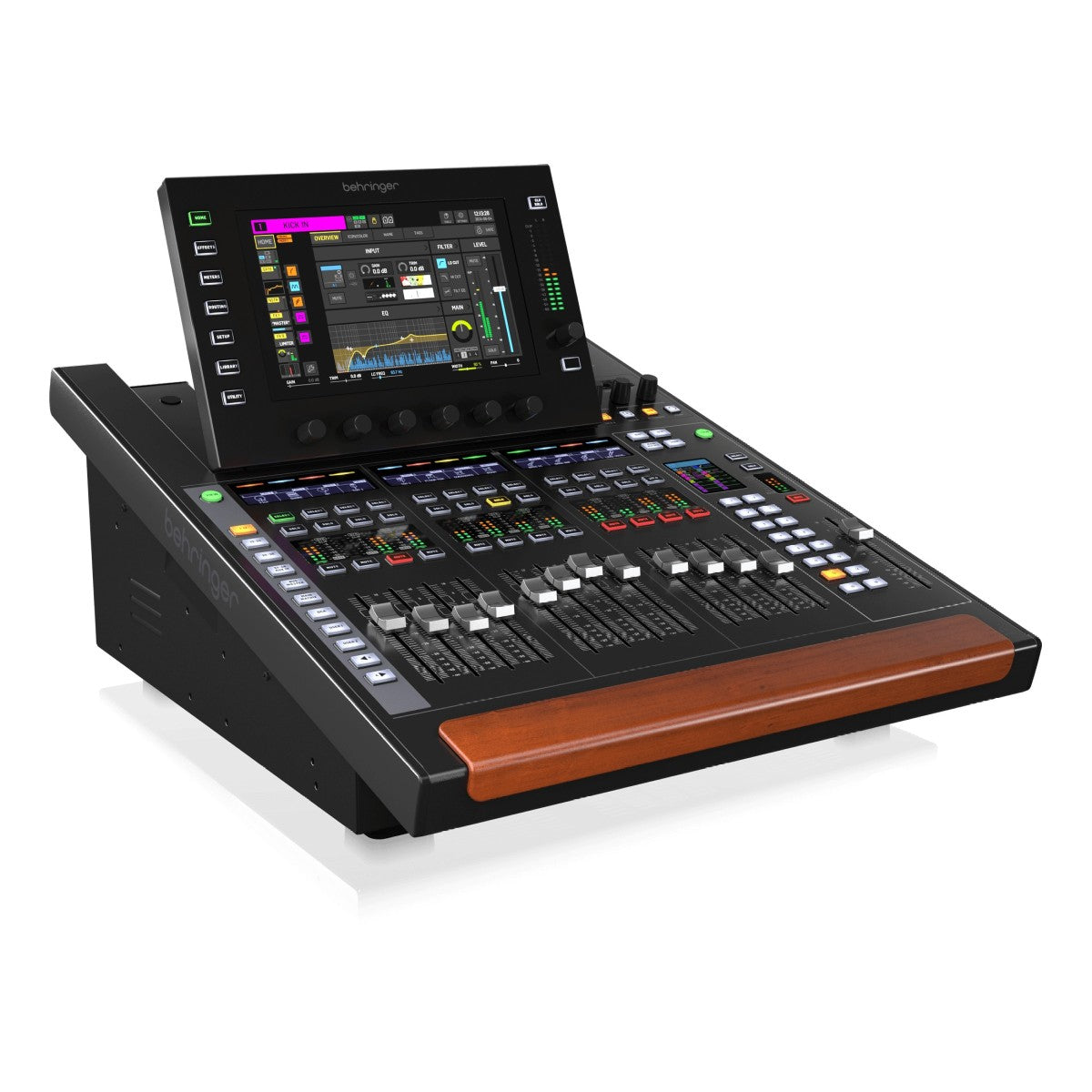

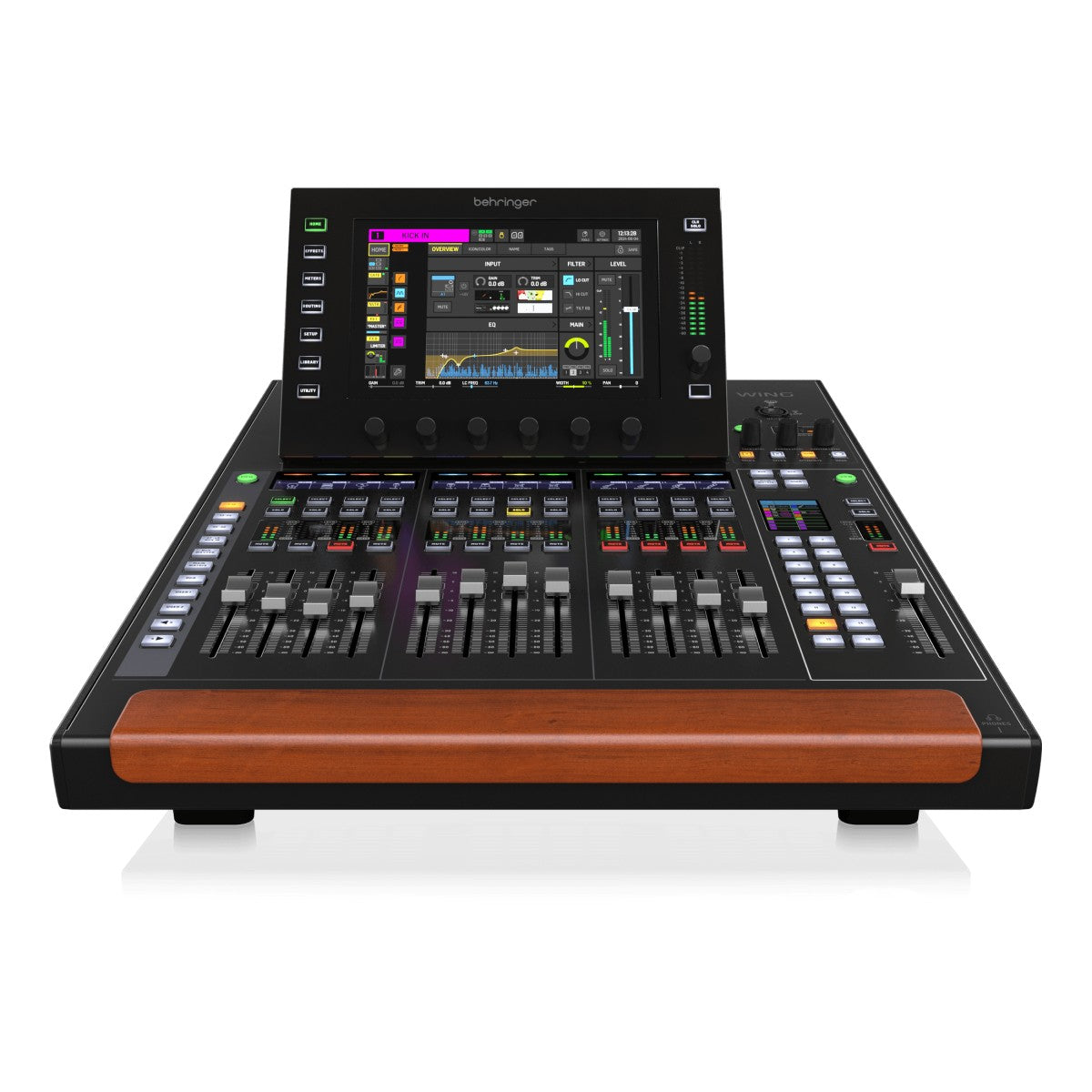

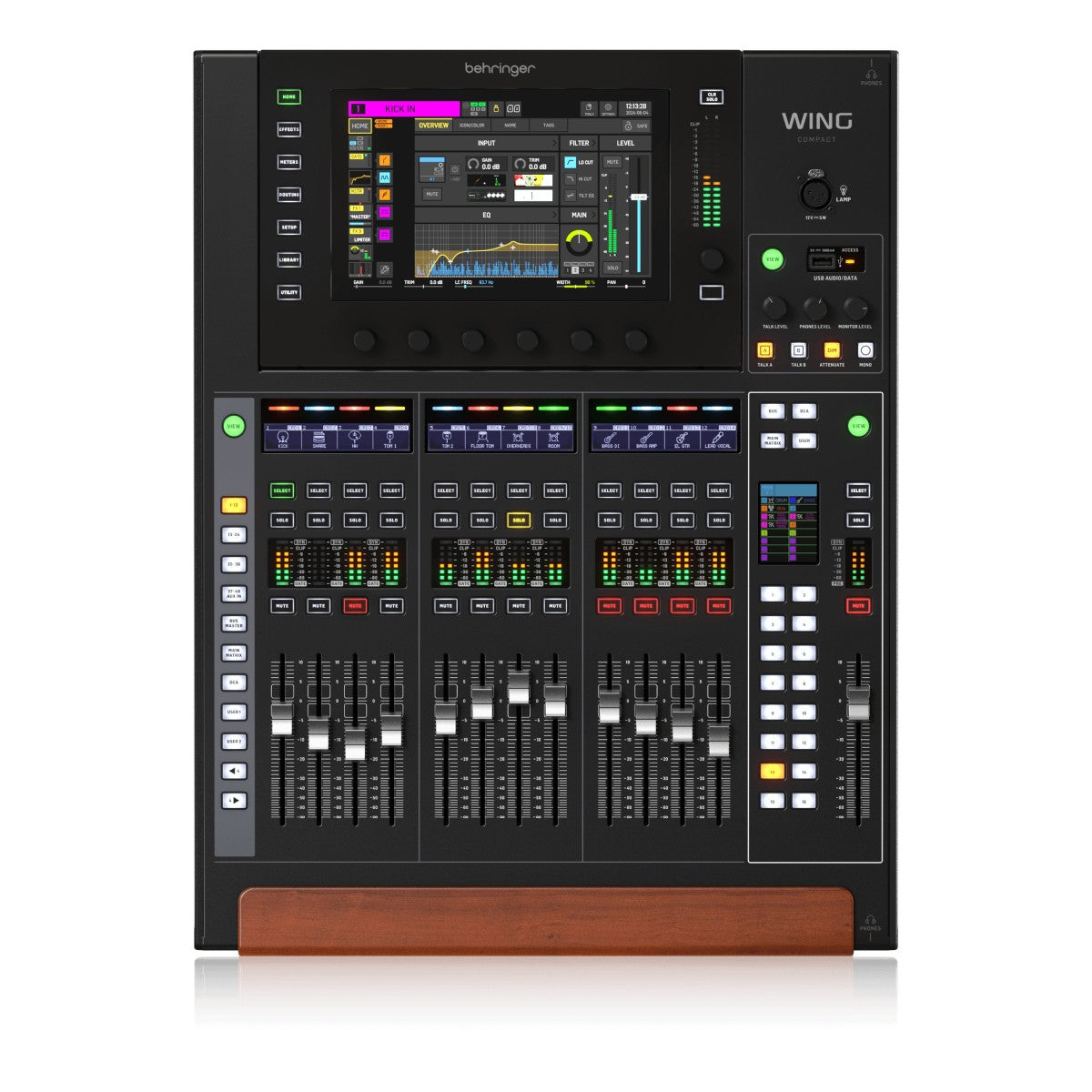

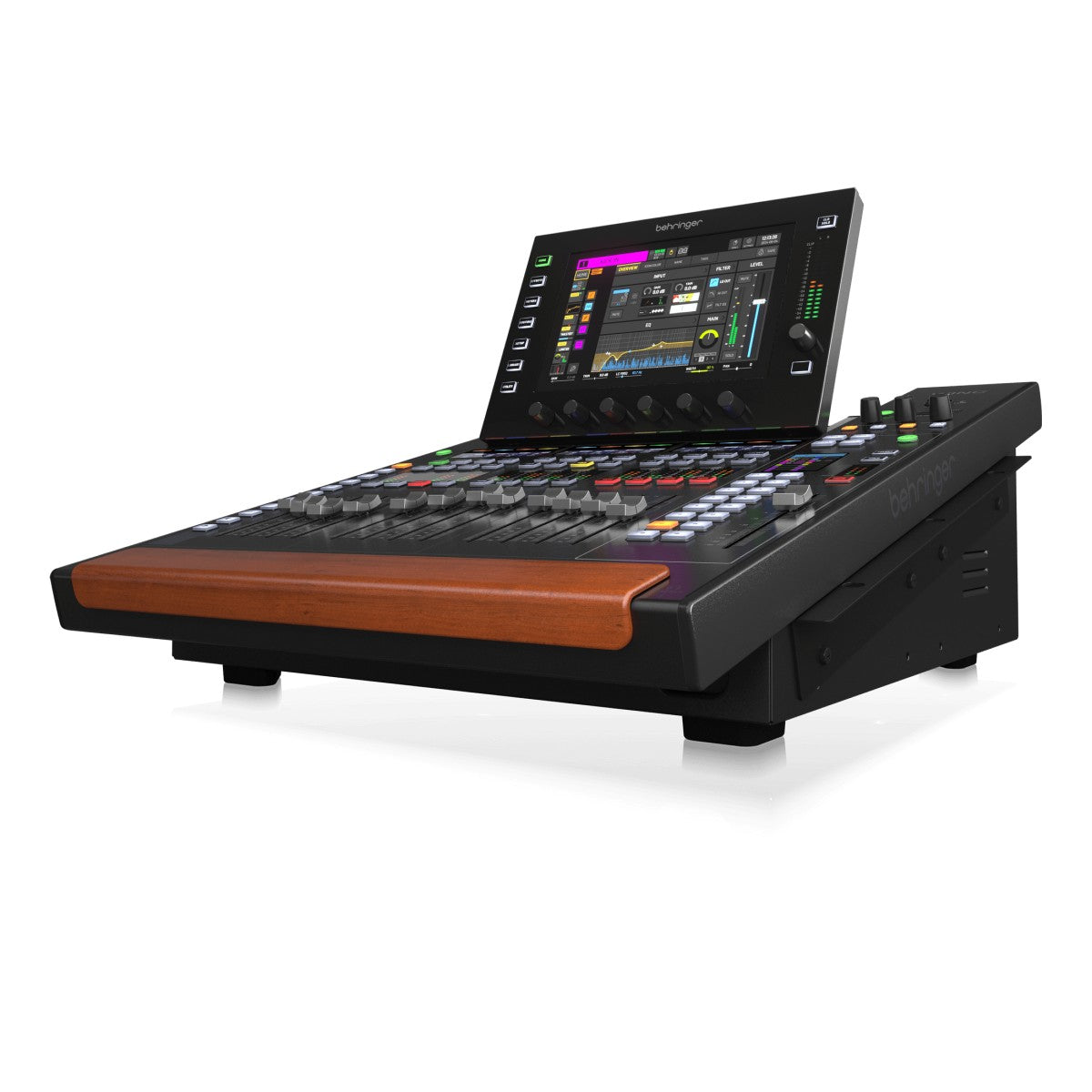

Behringer WING Compact 48-channel Digital Mixer - Enquire for Availability
Tax included.
Pro Mixing Power. Compact Form.
The Behringer WING Compact packs the core innovation and audio muscle of its full-sized counterpart into a sleek, portable design. Ideal for mobile rigs, compact venues, and on-the-go productions, it delivers professional-grade control and flexibility without the footprint.
WING Compact keeps the innovative “source-based” routing philosophy, allowing you to label, color, and iconize any signal source - mic, USB, Dante, etc. - and assign it to any fader or channel, freely. This flexibility makes it an ideal solution for worship teams, corporate AV, mobile events, and on-the-fly festival setups.
World-Class Effects & Processing
Equipped with 8 Premium FX Engines, 8 Standard FX Slots, and 5 Plug-in Racks, the WING Compact brings studio-grade audio shaping to every performance. Each bus and channel includes full dynamics, parametric EQs, and variable routing - all processed with powerful 40-bit floating-point DSP.
Built for Mobility & Integration
The rugged yet lightweight chassis makes it easy to transport without sacrificing professional-grade features. With its integrated USB interface, dual SD recording, and expansion port, WING Compact is ready to scale with your needs - from small gigs to networked audio productions.
Main features:
-
24 Fully Configurable Stereo Input Channels
-
16 MIDAS PRO Mic Preamps for pristine analogue gain structure
-
12 Mix Busses, 4 Mains, 8 Matrix Busses – all stereo
-
10” Capacitive Touchscreen with intuitive drag-and-drop interface
-
24 Motorised Faders in a compact chassis
-
Flexible Source-Oriented Workflow (assign any input to any channel)
-
Built-in 48x48 USB Audio Interface for DAW recording/playback
-
Dual SD Card Slots for onboard multitrack recording
-
AES50 Networking (96 input / 96 output channels via 2 ports)
-
StageCONNECT, AES/EBU, MIDI, and GPIO I/O
-
Optional Dante, MADI, or SoundGrid I/O via Expansion Slot
- Built-in WiFi Access Point for remote control

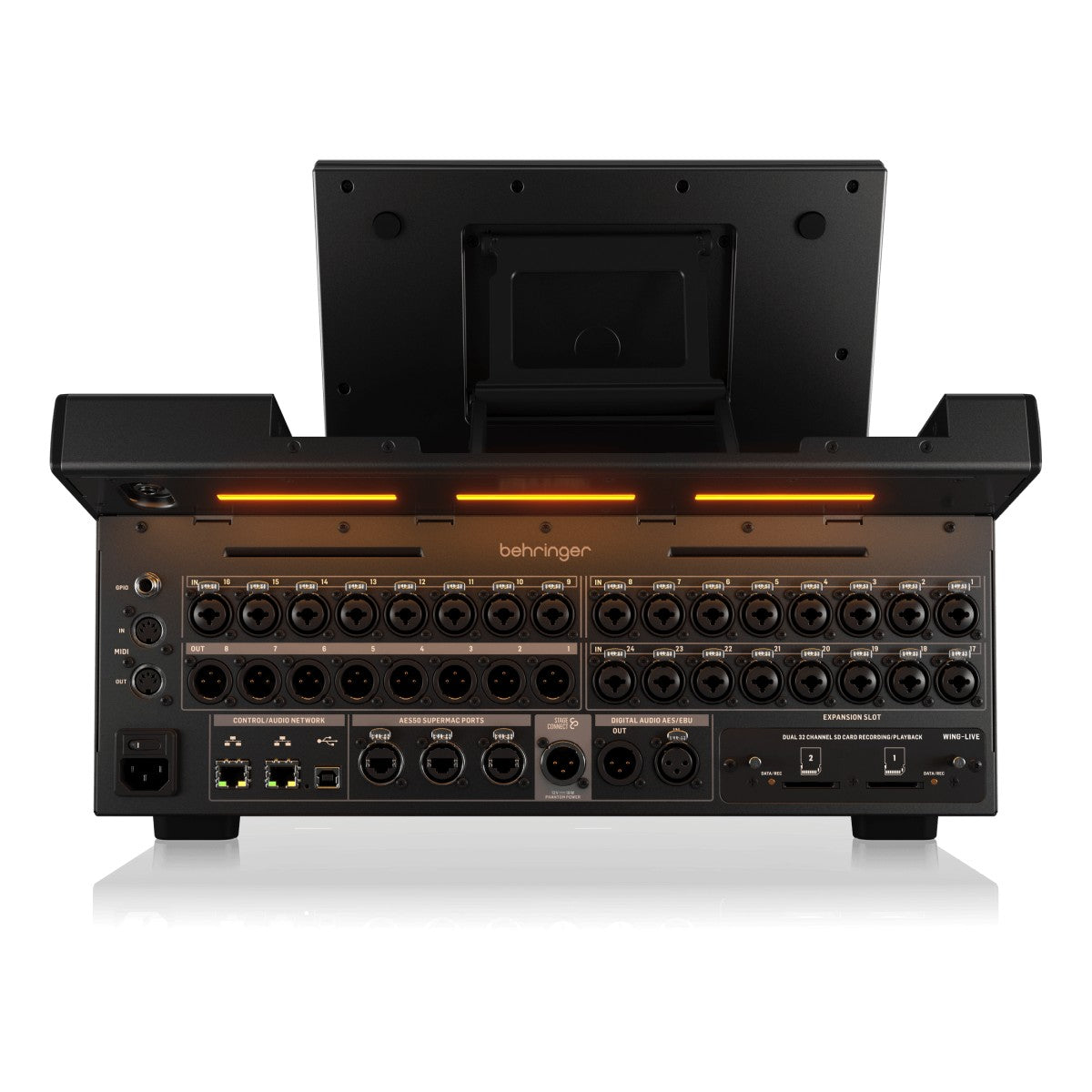

Tech Specs:
- Type: Digital Mixer
- Channels: 48 Stereo
- Inputs - Mic Preamps: 24 x XLR-1/4" combo (mic/line)
- Phantom Power: Yes
- Outputs - Main: 8 x XLR
- Inputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
- Outputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
- Send/Return I/O: 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
- Busses/Groups: 8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
- Inserts: Dual Inserts per Bus, FX Insert Slot
- MIDI I/O: In/Out
- Data I/O: 2 x Ethernet (control/audio network)
- Headphones: 2 x 1/4"
- USB: 1 x Type B, 1 x Type A
- Computer Connectivity: USB 2.0, 24-bit/48kHz (48 x 48)
- Remote: 1 x 1/4" (GPIO)
- I/O Expansion Slots: 1 x Expansion Slot
- Faders: 12 x 100mm Motorised
- EQ Bands: 6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
- Effects: 8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
- Signal Processing: Full Dynamics Processing
- DAW Control: Yes (HUI, Mackie)
- Screen: 10" Capacitive Touchscreen, Adjustable Swivel
- Storage: 2 x SD Card Slot (dual 32 track max)
- Rackmountable: Yes
- Power Source: Standard IEC AC cable
- Dimensions (WxHxD): 57.43 x 45.337 x 22.5 cm
- Weight: 15.92 Kg
- Explore more Behringer Mixing Consoles [COMPACT]: https://www.behringer.com/wing/wing-compact.html
But If you want to confirm availability first or inquire for possible discounts send us a quick mail.
