Audient Horizon 32 Thunderbolt 3 Audio Interface (Price on request)

Command Your Console and Outboard Gear with Uncompromising Precision

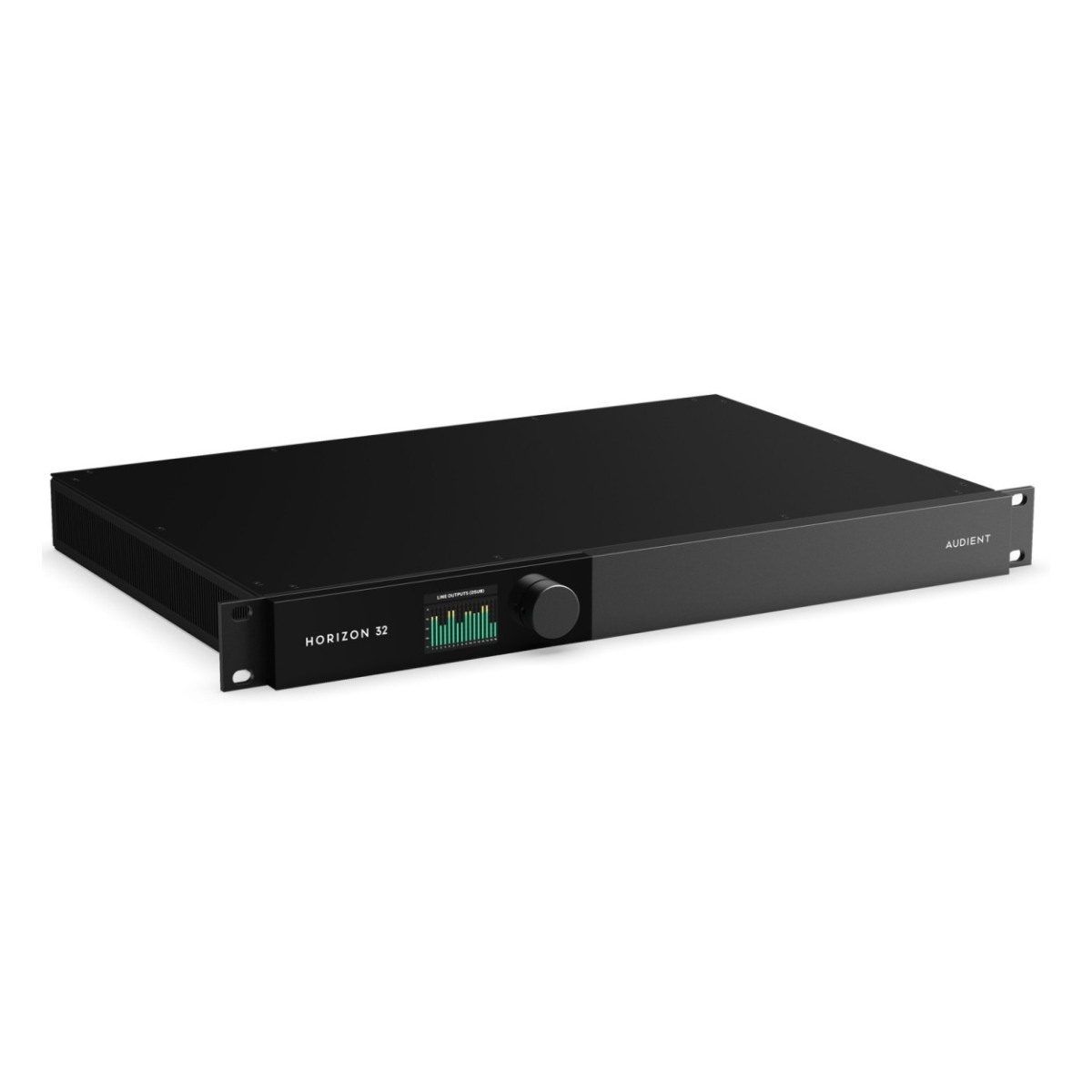

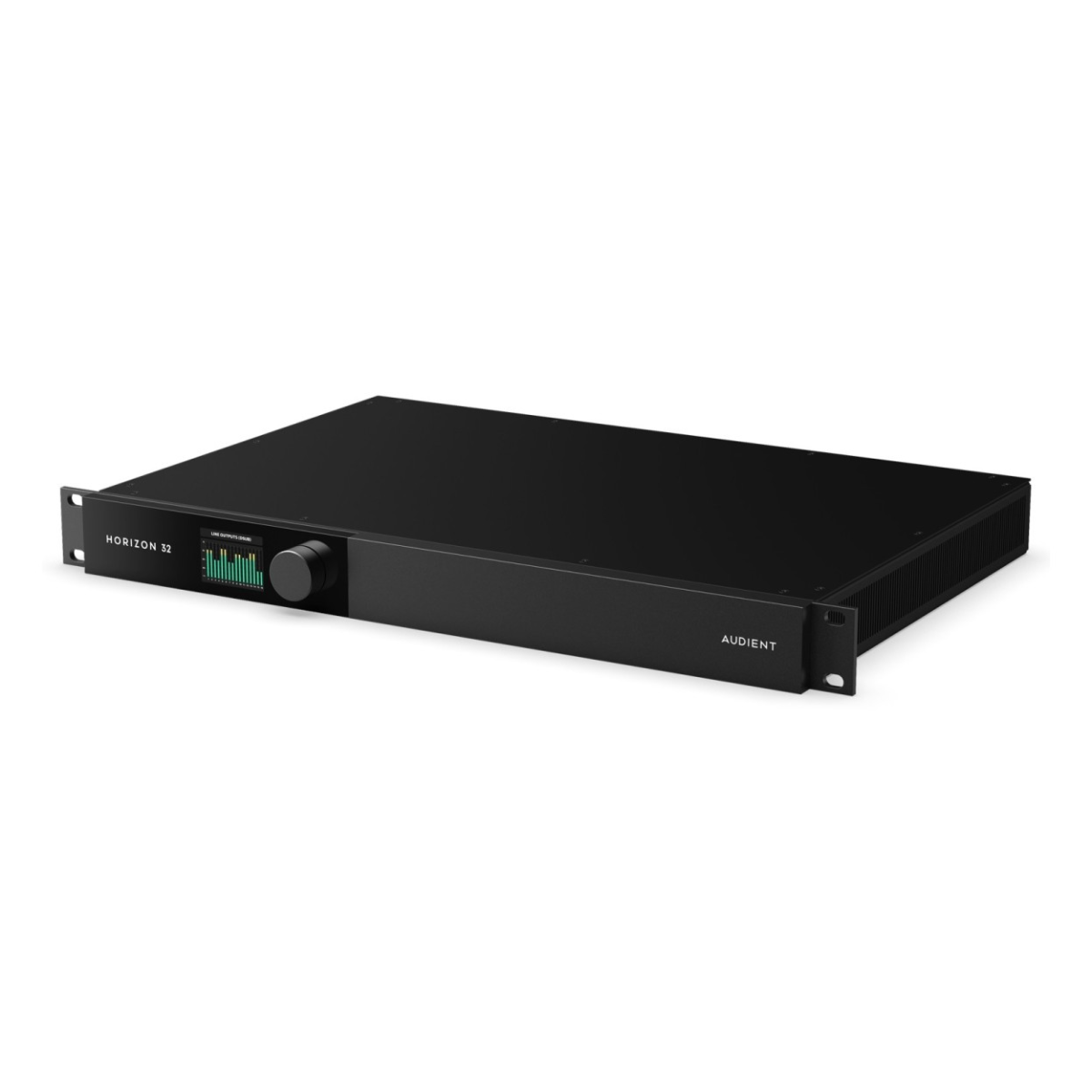

The Audient Horizon 32 is a flagship 50-in / 50-out Thunderbolt 3 audio interface built for high-channel-count studios, mixing facilities, and mastering suites. Delivering 32 analogue inputs and outputs via eight DB25 connectors, it bridges your DAW to large-format consoles and outboard gear with pristine, uncoloured conversion. This 1U rackmount unit offers mastering-grade 32-bit / 192 kHz resolution, sub-millisecond latency, and scalability for up to four daisy-chained units - ideal for engineers who demand precision without compromise.

Mastering-Grade 32-Bit Conversion and Unrivalled Transparency
The Horizon 32 features elite ESS ES9823PRO and ES9039 converters paired with ultra-low-noise op-amps, delivering 133 dB A-weighted dynamic range and 32-bit / 192 kHz resolution. This mastering-grade conversion captures every detail with surgical precision, while ultra-low jitter hybrid analogue/digital PLL clocking ensures rock-solid stereo imaging and reveals the pure, uncoloured character of your analogue hardware.

Sub-Millisecond Native Performance Without DSP Restrictions
Built on Thunderbolt 3, the Horizon 32 achieves 0.99 ms round-trip latency at 192 kHz with a 64-sample buffer. Engineers can leverage full Apple Silicon processing power for native VST, AU, or AAX plugins with zero perceptible lag. Selectable +18 dBu and +24 dBu reference levels enable precise headroom calibration for outboard gear.

Workflow-First Connectivity and Massive System Scalability
The Horizon 32 includes dedicated stereo mix-bus inputs on channels 33–34 for printing finished analogue mixes without occupying primary DB25 line inputs. Independent stereo monitor outputs keep reference listening separate from tracking paths. Up to four Horizon units daisy-chain over Thunderbolt with BNC Word Clock synchronization, creating a unified 200 x 200 channel rig controlled via Horizon Control software and Motion UI display.

Main features:

• 50-in / 50-out total audio connectivity over high-bandwidth Thunderbolt 3.

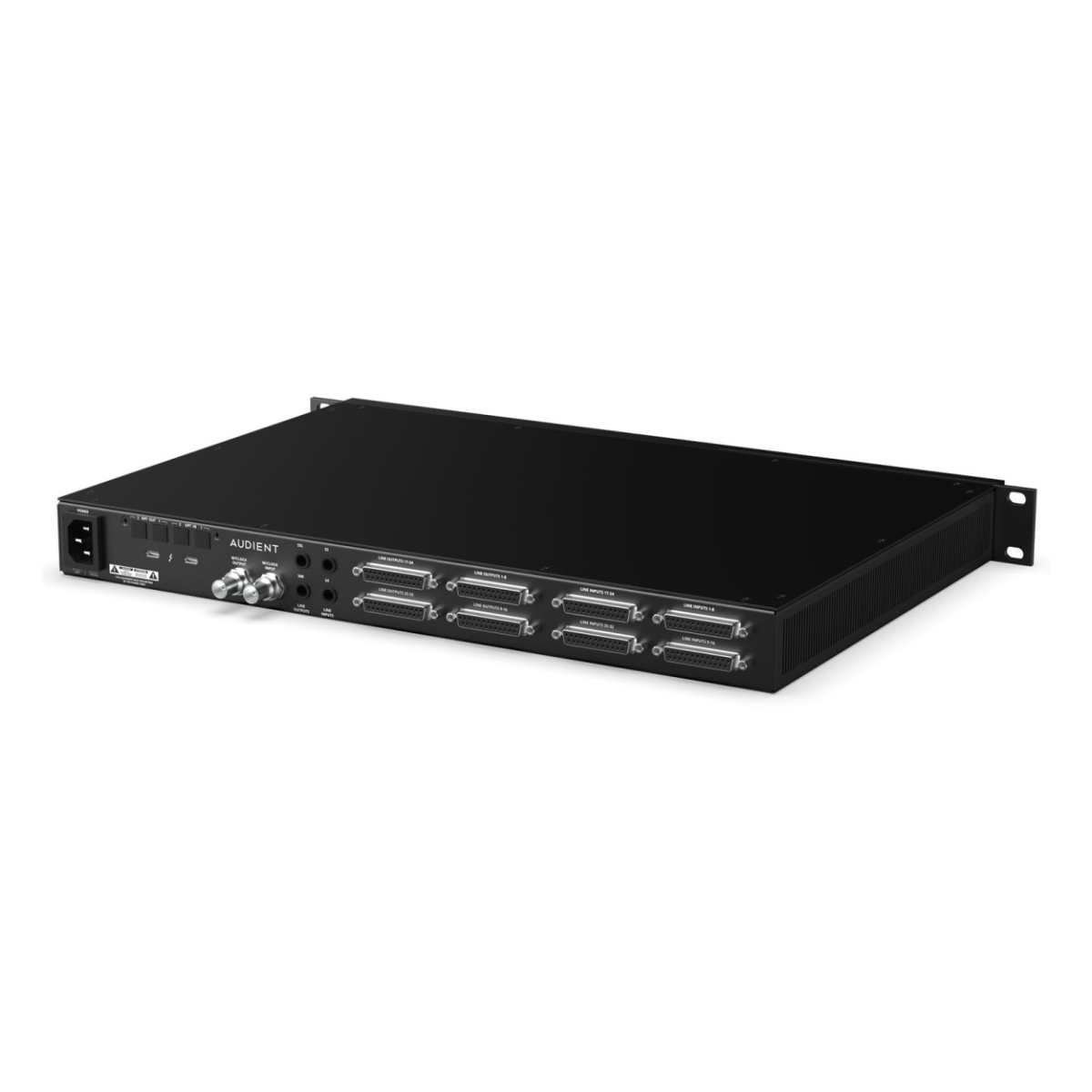

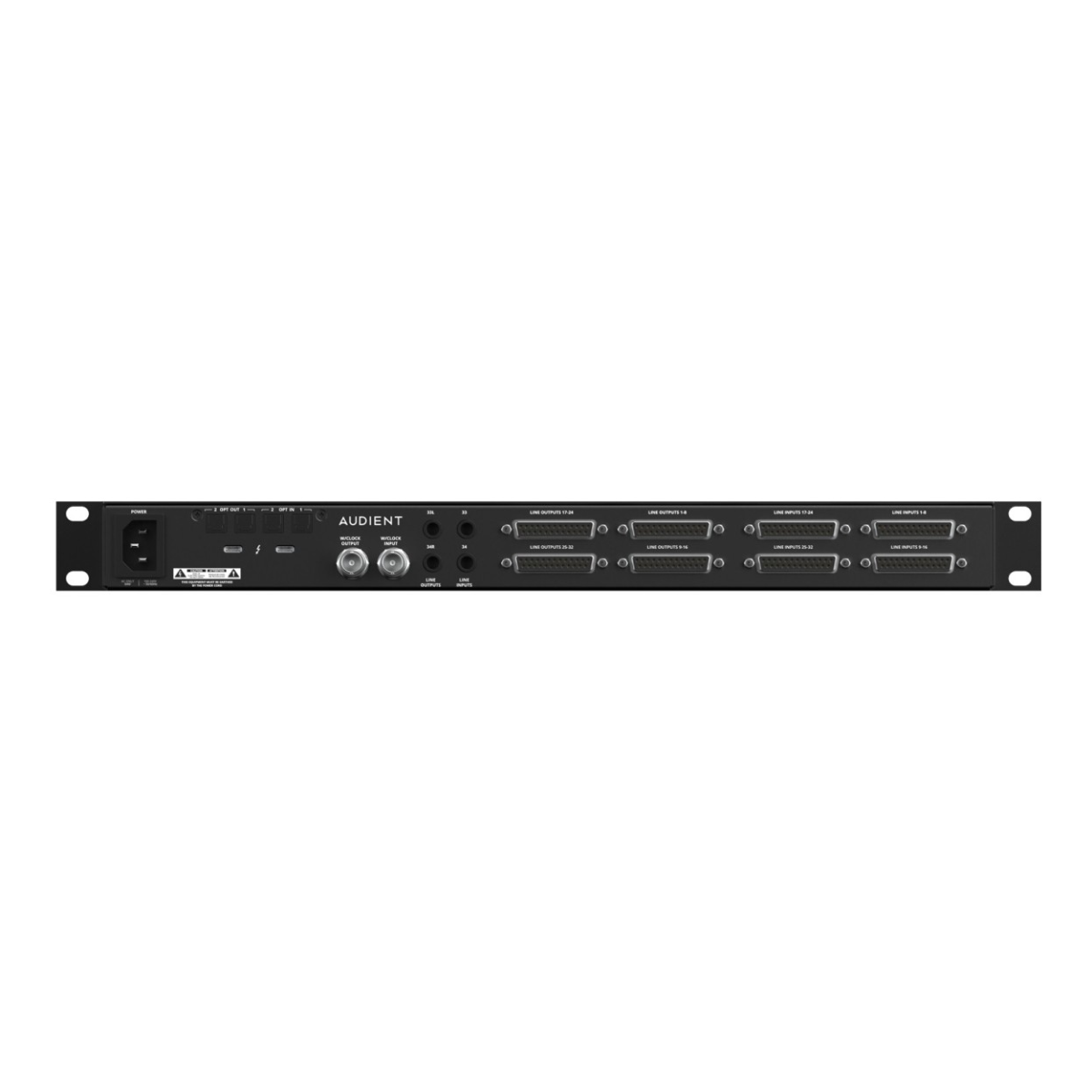

• 32 analogue line inputs and 32 analogue line outputs via eight Tascam/AES59 DB25 connectors.
• High-performance 32-bit / 192 kHz AD/DA conversion delivering up to 133 dB dynamic range.
• Sub-millisecond round-trip latency of 0.99 ms at 192 kHz with a 64-sample buffer.
• Dedicated stereo mix-bus inputs for printing master mixes without occupying primary line inputs.
• Dedicated stereo monitor outputs with custom profile routing and advanced monitor controls.
• Dual optical I/O banks providing up to 16 channels of ADAT digital expansion.
• Selectable +18 dBu and +24 dBu analogue reference levels for precise gain staging.
• BNC Word Clock input and output with switchable 75 Ohm internal termination.
• Scalable multi-interface architecture allowing up to four units to daisy-chain for a 200 x 200 I/O system.
• Centralised Horizon Control software featuring a virtual patchbay, custom monitoring, and metering.

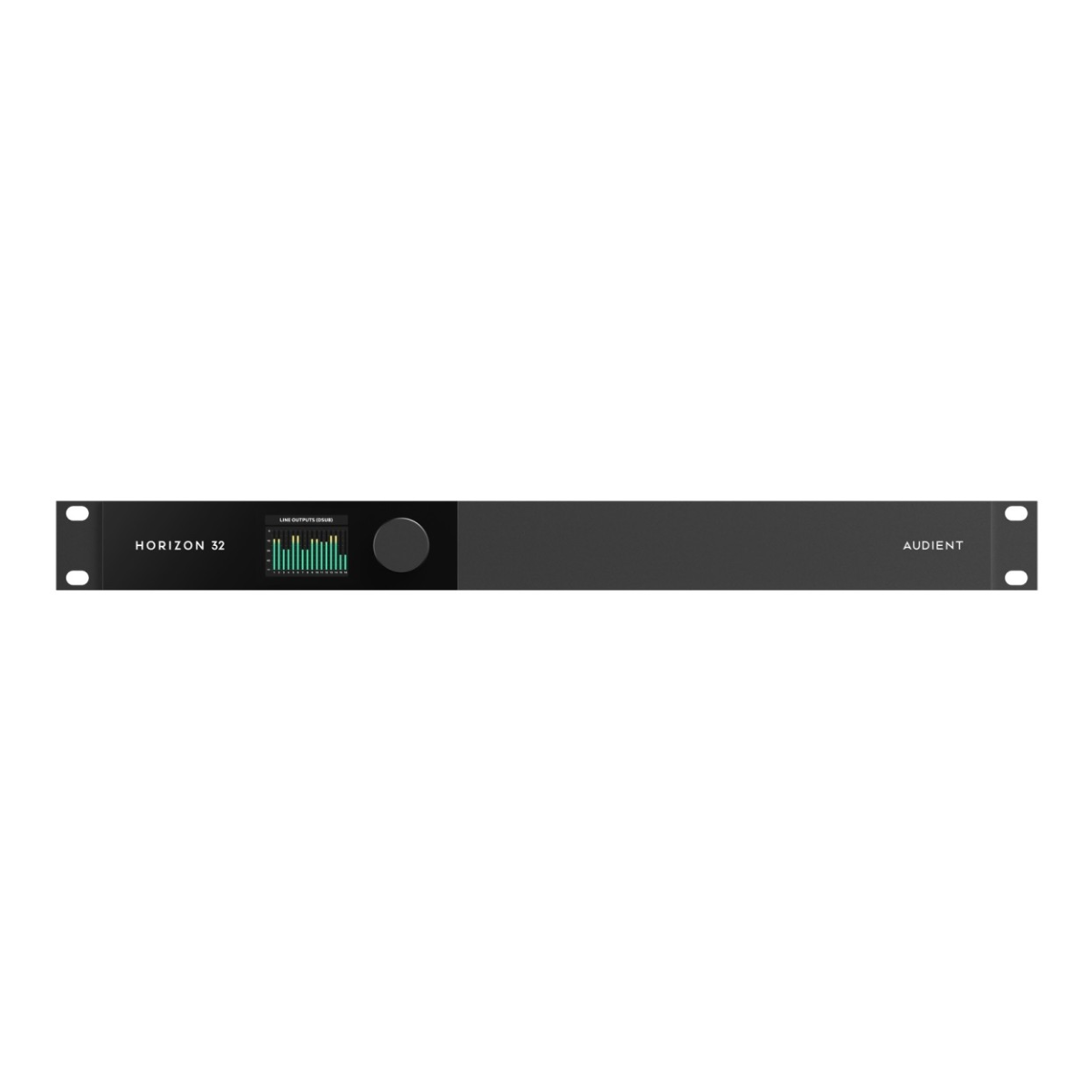

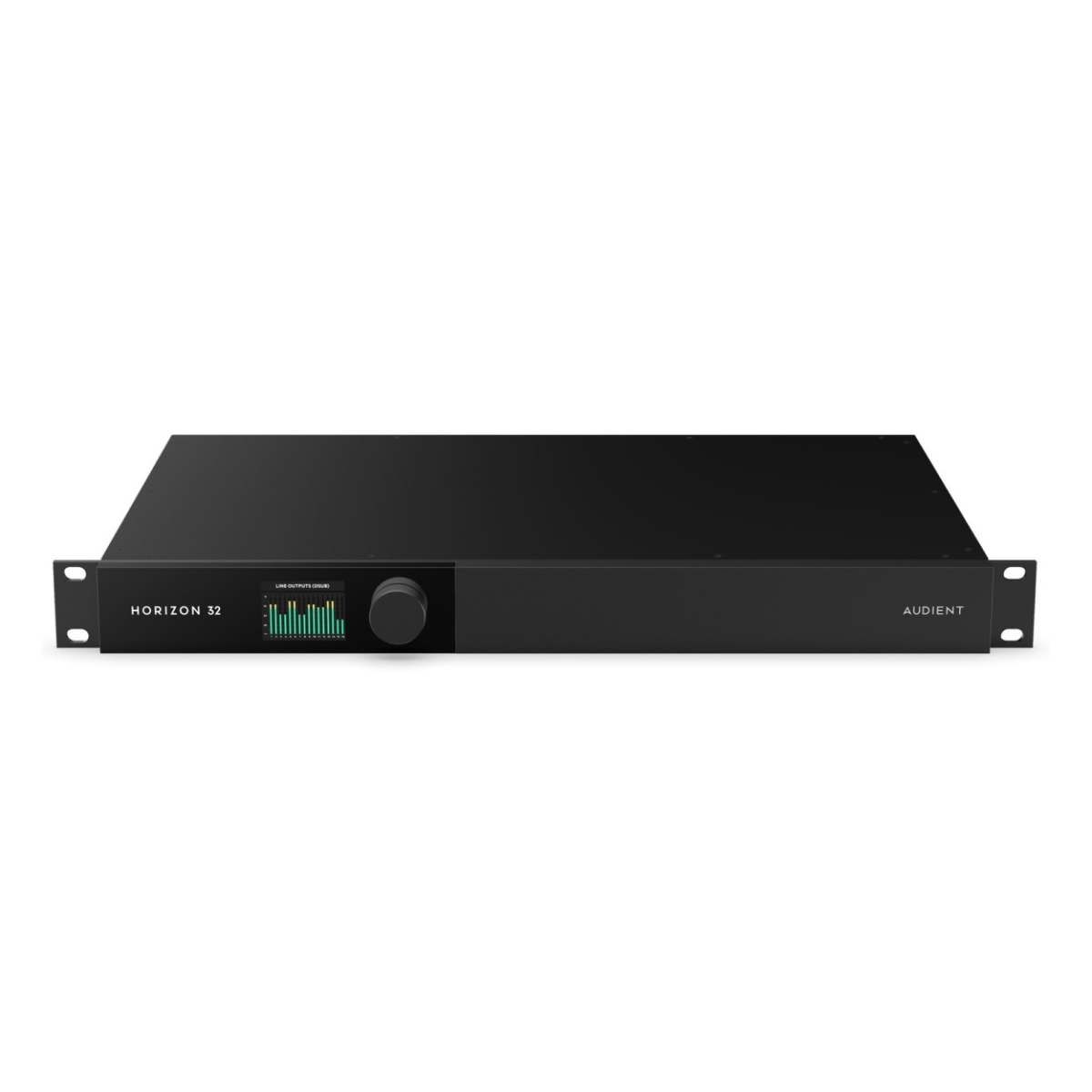

• High-resolution Motion UI front-panel display and rotary Control Wheel for direct hardware feedback.
• Quiet 1U all-metal rackmount chassis engineered with fanless thermal cooling.

Tech Specs:

• Total Audio I/O: 50 Inputs / 50 Outputs
• Primary Analogue I/O: 32 Line Inputs / 32 Line Outputs via 8 x DB25 (Tascam/AES59 Standard)
• Mix-Bus Inputs: 2 x 1/4" TRS Line Inputs (Channels 33–34)
• Monitor Outputs: 2 x 1/4" TRS Line Outputs (Channels 33–34)
• Digital I/O: 2 x Optical TOSLINK Inputs / 2 x Optical TOSLINK Outputs (ADAT / S/PDIF)
• Conversion Resolution: 32-bit / 192 kHz
• Dynamic Range: 127 dB A-weighted (Analogue In) | 132 dB A-weighted (Line Out) | 133 dB A-weighted (Monitor Out)
• Round-Trip Latency: 0.99 ms @ 192 kHz (64-sample buffer)
• Reference Levels: Selectable +18 dBu / +24 dBu
• Clock Synchronization: BNC Word Clock Input & Output with Switchable Termination
• Host Connectivity: 2 x Thunderbolt 3 Ports (macOS compatible)
• System Scalability: Up to 4 Horizon units daisy-chained (Maximum 200 x 200 I/O)
• Control Hardware & Software: Motion UI Display, Control Wheel, Horizon Control Software
• Power Supply: Internal AC 100–240 V AC, 50/60 Hz (84 W maximum power consumption)
• Form Factor & Cooling: 1U Rackmount, All-Metal Chassis, Silent Fanless Thermal Design
• Dimensions (WxDxH): 483 x 330 x 44.5 mm
• Weight: 4.4 kg
