AMS Neve 33609/N Stereo Limiter/Compressor - On Request

Class-A Stereo Compressor/Limiter with Handwired Transformers, Diode-bridge Topology, Discrete Output Stage, Independent Limiter I/O and Compressor I/O Selection, and Dual-mono Mode.

AMS Neve 33609/N Discrete Stereo Compressor/Limiter Features:

• Meticulously designed according to exacting 1970s specifications
• Discrete Class-A design provides low-distortion performance and unmatched fidelity
• Made with handwired Neve transformers in Burnley, England
• Independently selectable limiter and compressor
• Limiter and compressor sections can be used independently or in series
• Brickwall-style limiter with variable recovery times (stepped at 50ms, 100ms, 200ms, 800ms) and 2 AUTO modes
• Versatile compressor with 5 ratio settings (1.5:1. 2:1, 3:1, 4:1, and 6:1) and 6 recovery settings (100ms, 400ms, 800ms, 1.5s, and 2 AUTO modes)
• Fast and slow attack options
• Pre-limiter gain makeup control
• Use in stereo or dual-mono during tracking and mixdown
• Moving coil meters for monitoring input, output, and gain-reduction levels

Specifications:

• Type:Diode-Bridge Compressor/Limiter
• Number of Channels:2
• Controls:Threshold, Ratio, Attack, Recovery
• Threshold:Limit: +4dBu to +15dBu, Compress: -20dBu to +10dBu
• Ratio:1:5:1 to 6:1
• Frequency Response:20Hz-20kHz (±0.5dB)

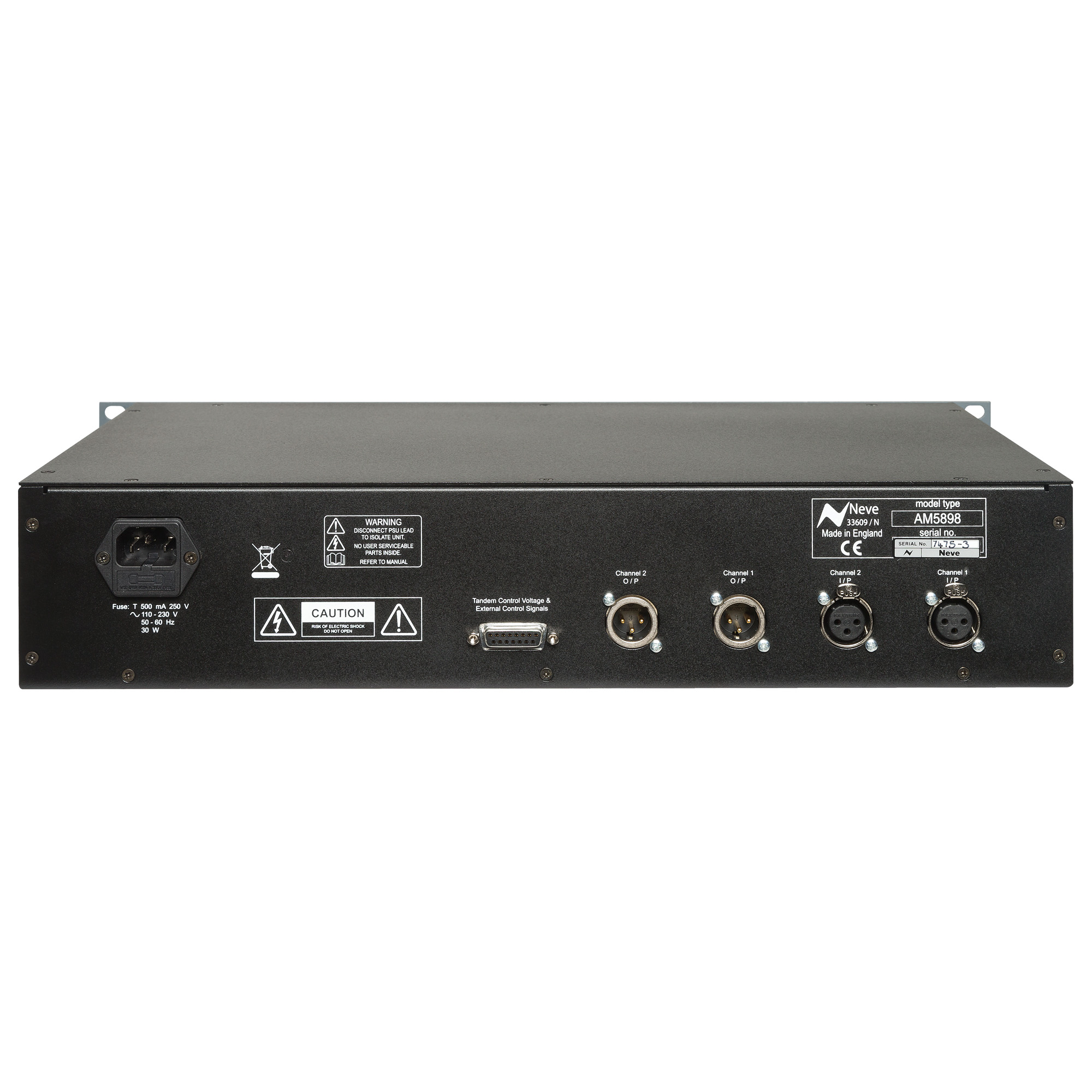

• Inputs:2 x XLR
• Outputs:2 x XLR
• Sidechain I/O:1 x 15-pin (tandem control voltage)
• Rack Spaces:2U
• Power Source:Standard IEC AC cable
• Height:3.5"
• Depth:10"
• Width:19"
