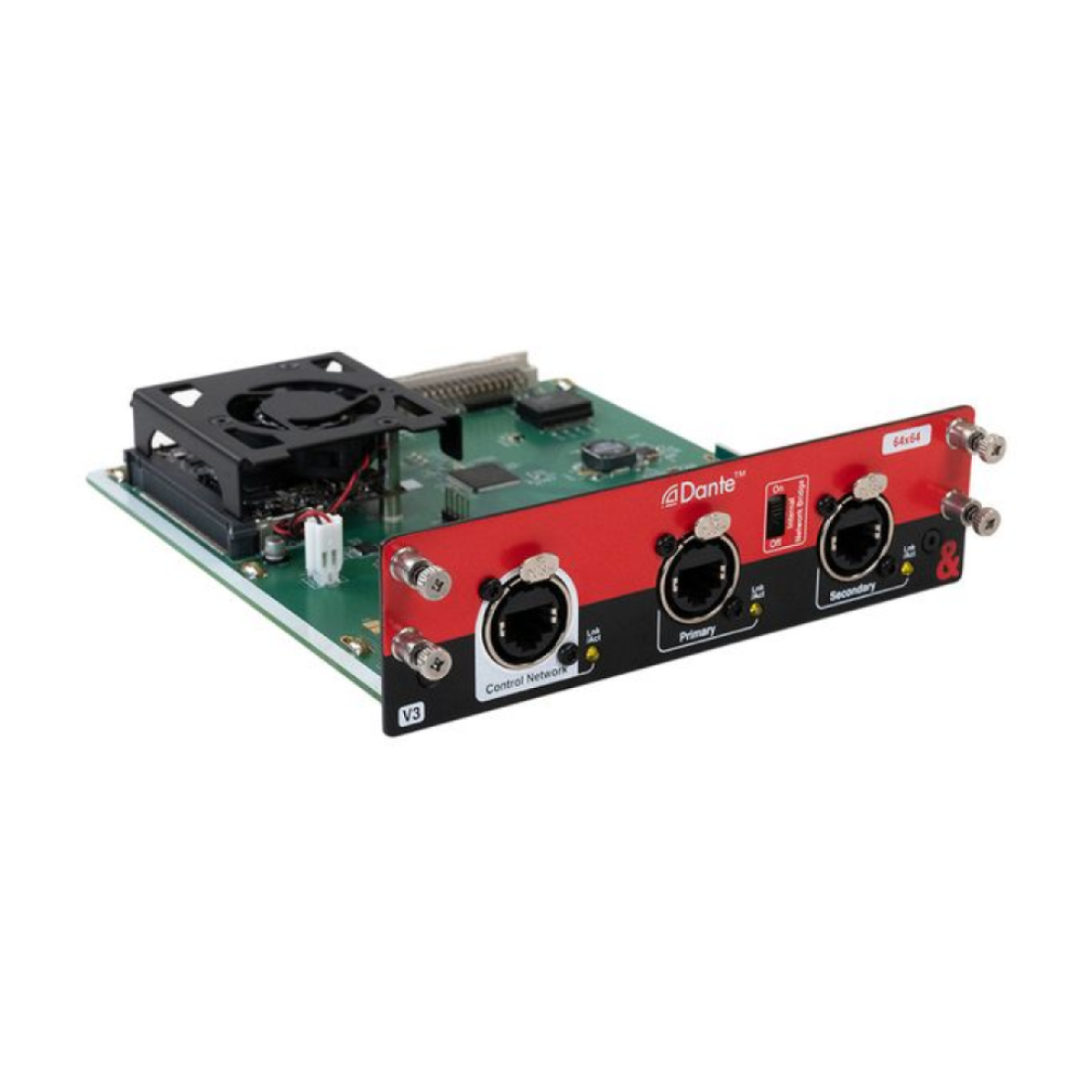

Allen & Heath M-DL-DANT64-A Dante card for dLive / Avantis
Tax included.
Your Gateway to World-Class Audio Networking
The Allen & Heath M-DL-DANT64-A is a 64-channel Dante networking card for dLive and Avantis consoles. It delivers sample-accurate audio with ultra-low latency over standard IP networks, supporting both 48kHz and 96kHz operation. Features dual redundant EtherCon ports, integrated network bridge for remote control, and includes a Dante Virtual Soundcard license for DAW recording. Built for live sound, touring, and studio environments requiring professional-grade reliability.
High-Definition 96kHz Versatility
Full 64x64 channel count at 48kHz and 96kHz preserves pristine signal integrity across the Dante network. Standard CAT5e cabling delivers sample-accurate synchronization and professional headroom without proprietary hardware.
Fail-Safe Redundancy & Workflow Integration:
Dual redundant ports enable automatic failover with zero audio interruption. Integrated network bridge routes console control and audio data together, allowing remote management from a single laptop.
Main features:
- 64x64 channels of bidirectional audio plus control distributed over a single CAT5e cable
- Seamless hardware compatibility with Allen & Heath dLive and Avantis I/O expansion slots
- Dual locking EtherCon ports configured for Primary and Secondary redundant network links
- Full operational support for Dante Domain Manager (DDM) security and AES67 interoperability
- Dedicated Control Network port for bridging host console control data over the Dante network
- Integrated Internal Network Bridge to simplify remote software management and patch routing
- Includes one complimentary license token for Dante Virtual Soundcard (DVS) for direct DAW multitrack recording
Tech Specs:
- Type: Audio Networking Card
- Channel Capacity: 64 x 64 Bidirectional
- Operating Sample Rates: 48kHz / 96kHz
- Bit Depth: 24-bit
- System Latency: Ultra-low (user-configurable via Dante Controller software)
- Standards Compliance: AES67 Supported (Rev3+ modules) & Dante Domain Manager (DDM) Ready
- Interface: Layer 3 Ethernet IP

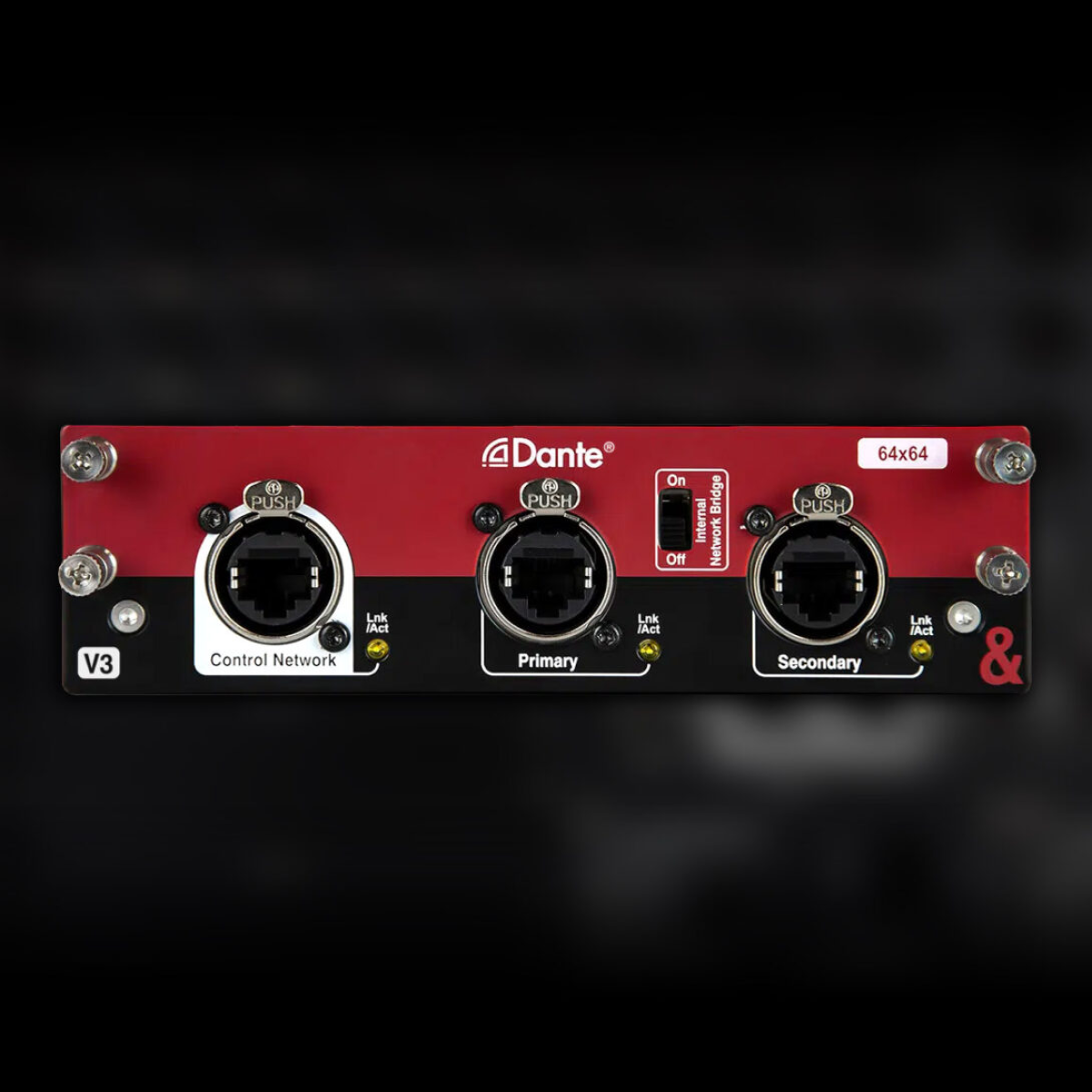

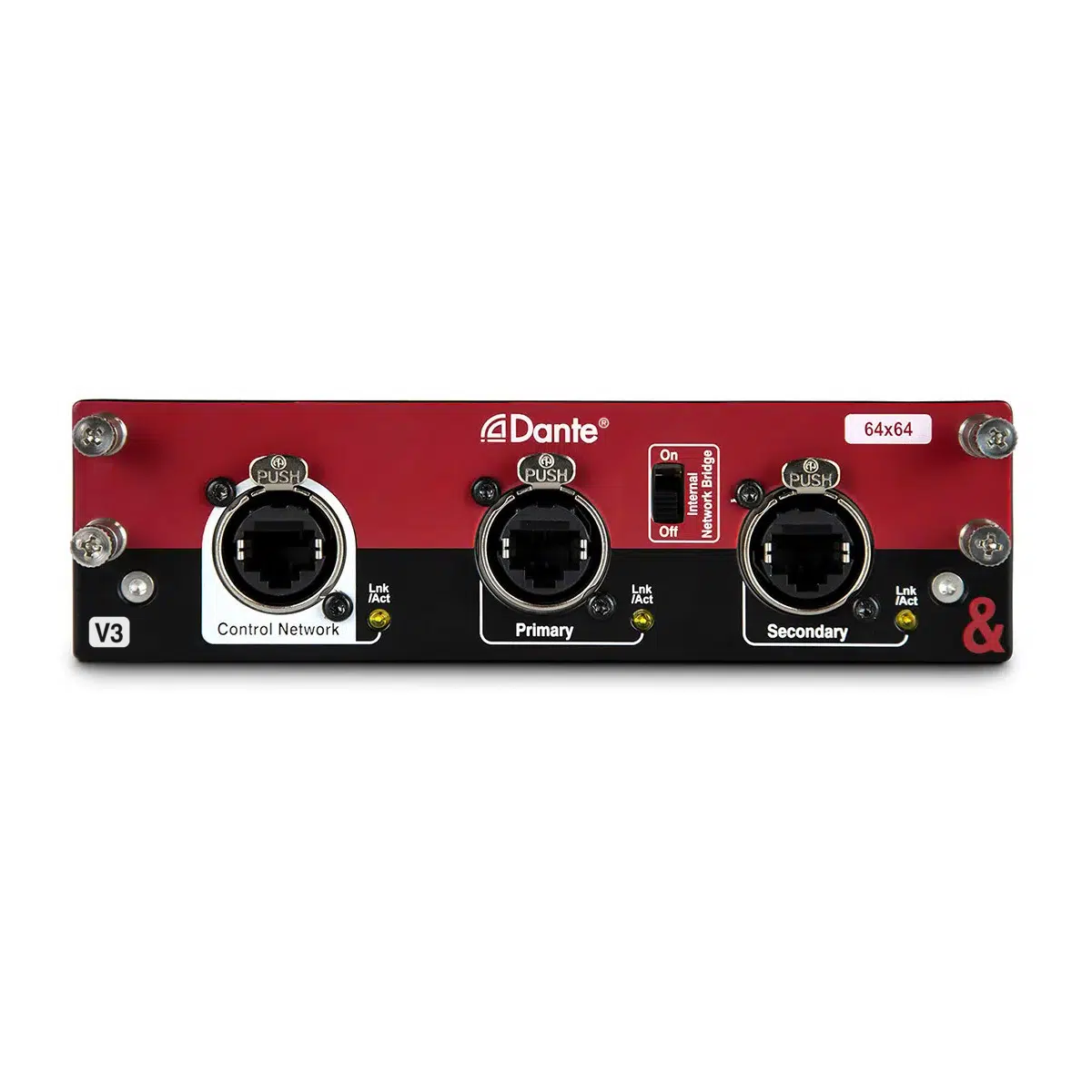

- Physical Connectors: 2 x Locking EtherCon (Primary/Secondary), 1 x RJ45 (Control)
- Cable Requirements: CAT5e or higher (up to 100 meters)
- Operating Modes: Redundant or Switched
- Network Support: Gigabit Ethernet standard
- Compatibility: Allen & Heath dLive and Avantis Platforms
