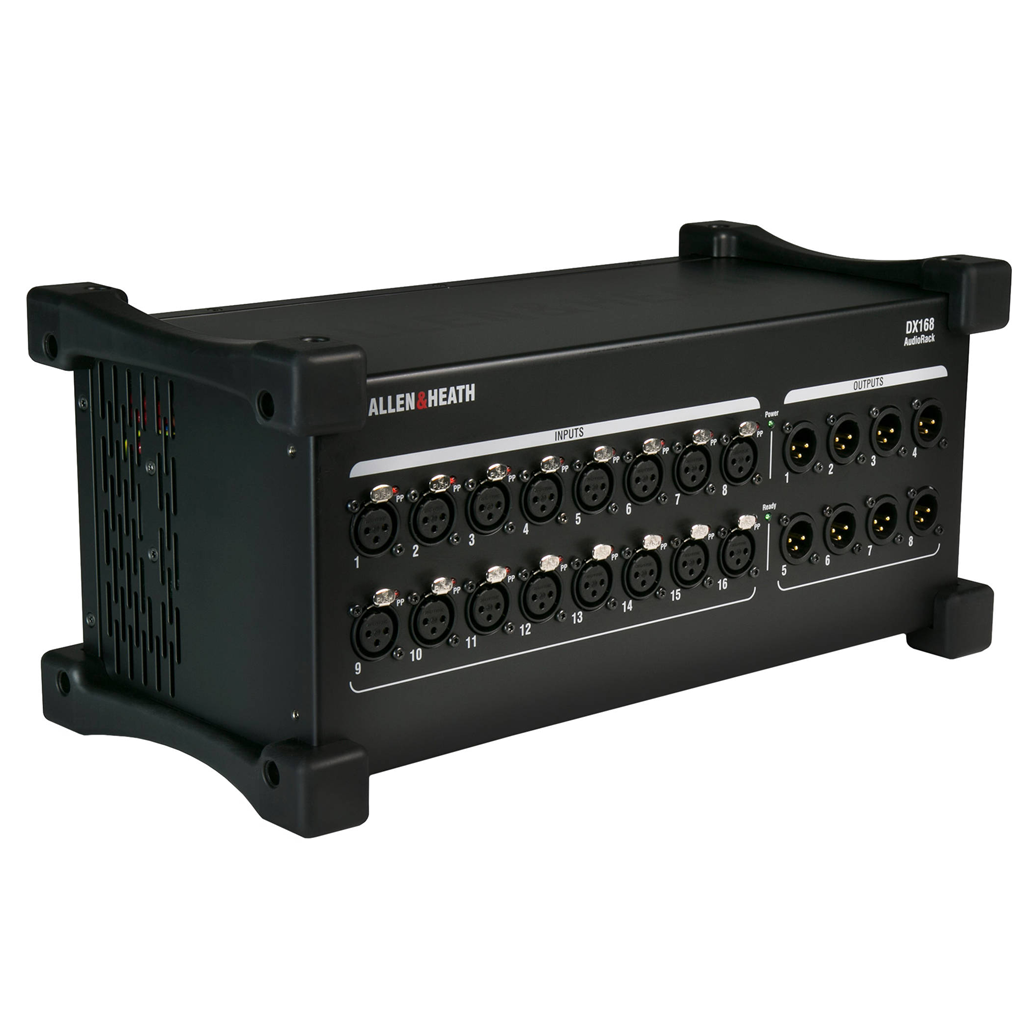

Allen & Heath DX168 Stage Box

Allen & Heath DX168 Stage Box

16-in/8-out Portable DX Expander for dLive and SQ Systems Offers impressive levels of expandability Need more I/O for your Allen & Heath dLive or SQ...

Vendor :Allen & Heath

Type :Digital Stage Box

Sold Out

16-in/8-out Portable DX Expander for dLive and SQ Systems

Offers impressive levels of expandability

Need more I/O for your Allen & Heath dLive or SQ system? Grab a DX168, and you can expand your rig by 16 inputs and 8 outputs. Need more? No problem — you can connect up to six units for a total of 96 inputs and 48 outputs. Each DX168 comes loaded with 16 great-sounding mic preamps that can be placed conveniently on the stage floor. The DX168 is a breeze to set up, thanks to its Plug and Play design, and is compatible with Cat 5e cables of up to 100m. This portable DX Expander weighs a measly 10-1/2 pounds and features a carry handle for easy transport. The DX168 works with both S Class and C Class dLive, along with SQ systems.

The DX168, when used in conjunction with a Surface and MixRack, combines to form a powerful and expandable system. The Surface provides you with direct hands-on control over your mix. The MixRack is the brain of the system, containing the XCVI core, and is supported by a whole host of surfaces, apps, software, TCP/IP control, and IP remotes, all of which provide different means of controlling the mixer. A 128-channel I/O port supports Dante, Waves SG, ACE, and MADI, along with full compatibility with ME personal mixing systems.

Main Features:

  • 16-in/8-out portable DX Expander for dLive or SQ systems
  • Connect up to 6 units for a total of 96 inputs and 48 outputs
  • Includes 16 great-sounding mic preamps
  • Plug and Play design for easy setup (no IP addressing required)
  • Compatible with Cat 5e cables of up to 100m
  • Lightweight design and integrated carry handle for easy transport
  • Durable construction with rubber bumpers for extra protection
  • Works with both S Class/C Class dLive and SQ systems
  • Redundant DX connection to dLive S Class hardware
  • Optional 19-inch rack mount kit is available (sold separately)
  •

    Tech Specs:

  • Type:DX I/O Expander
  • Compatibility:dLive S/C Class Systems, dLive SQ Series
  • Channels:16 x 8
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16 channels
  • Outputs - Main:8 x XLR (line outs)
  • Data I/O:2 x EtherCon (Cat5e DX ports)
  • Rackmountable:Yes (kit sold separately)
  • Power Source:Standard IEC AC cable
  •
