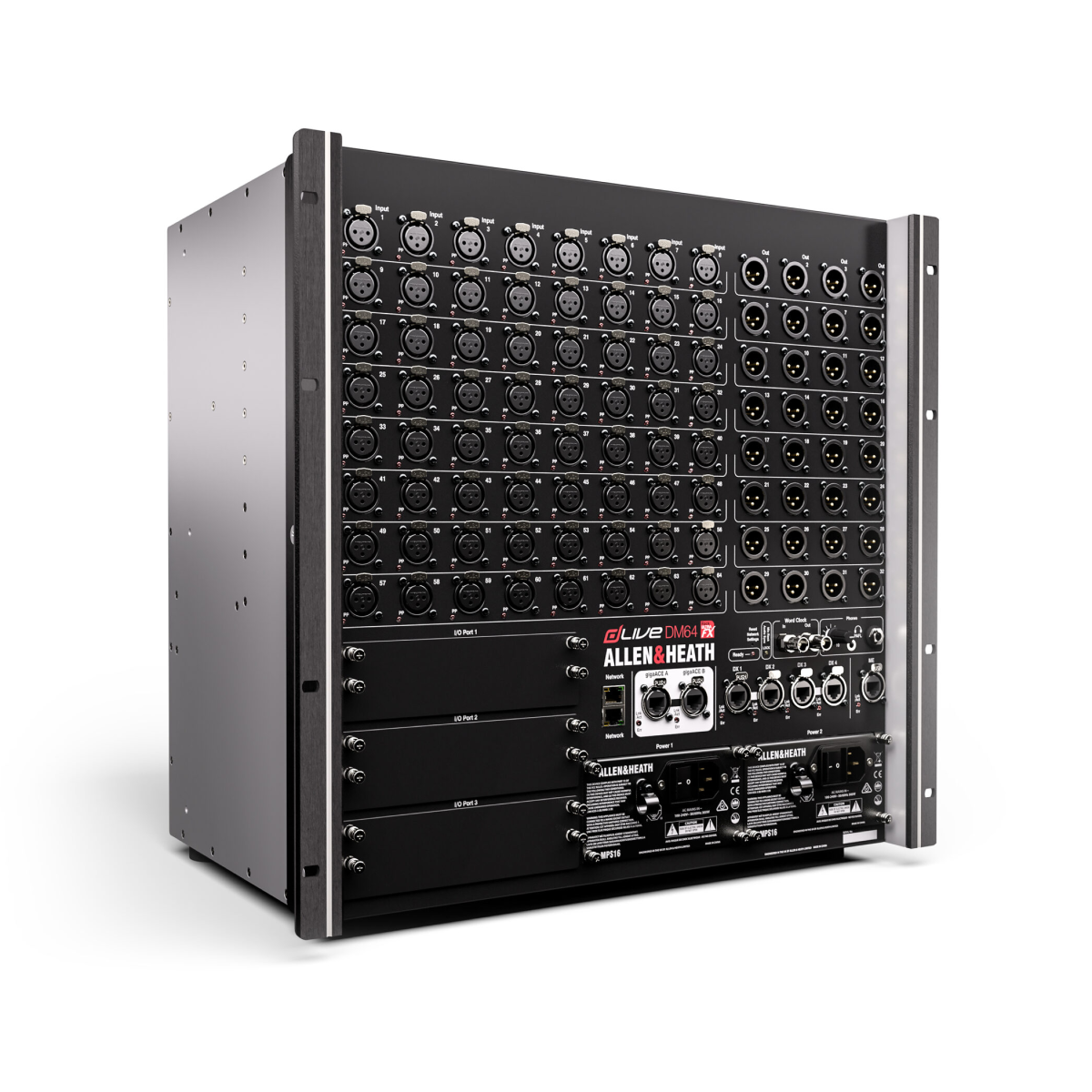

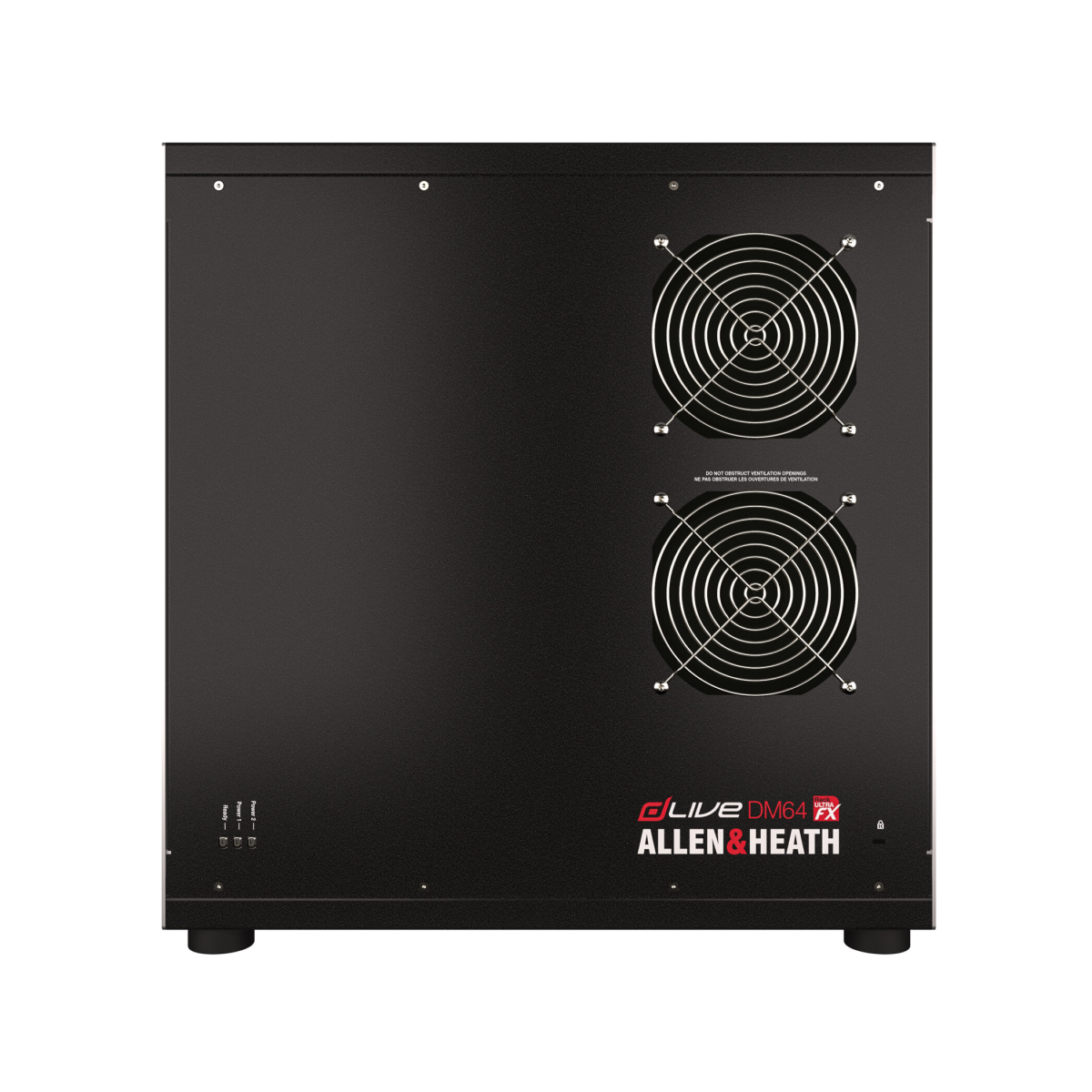

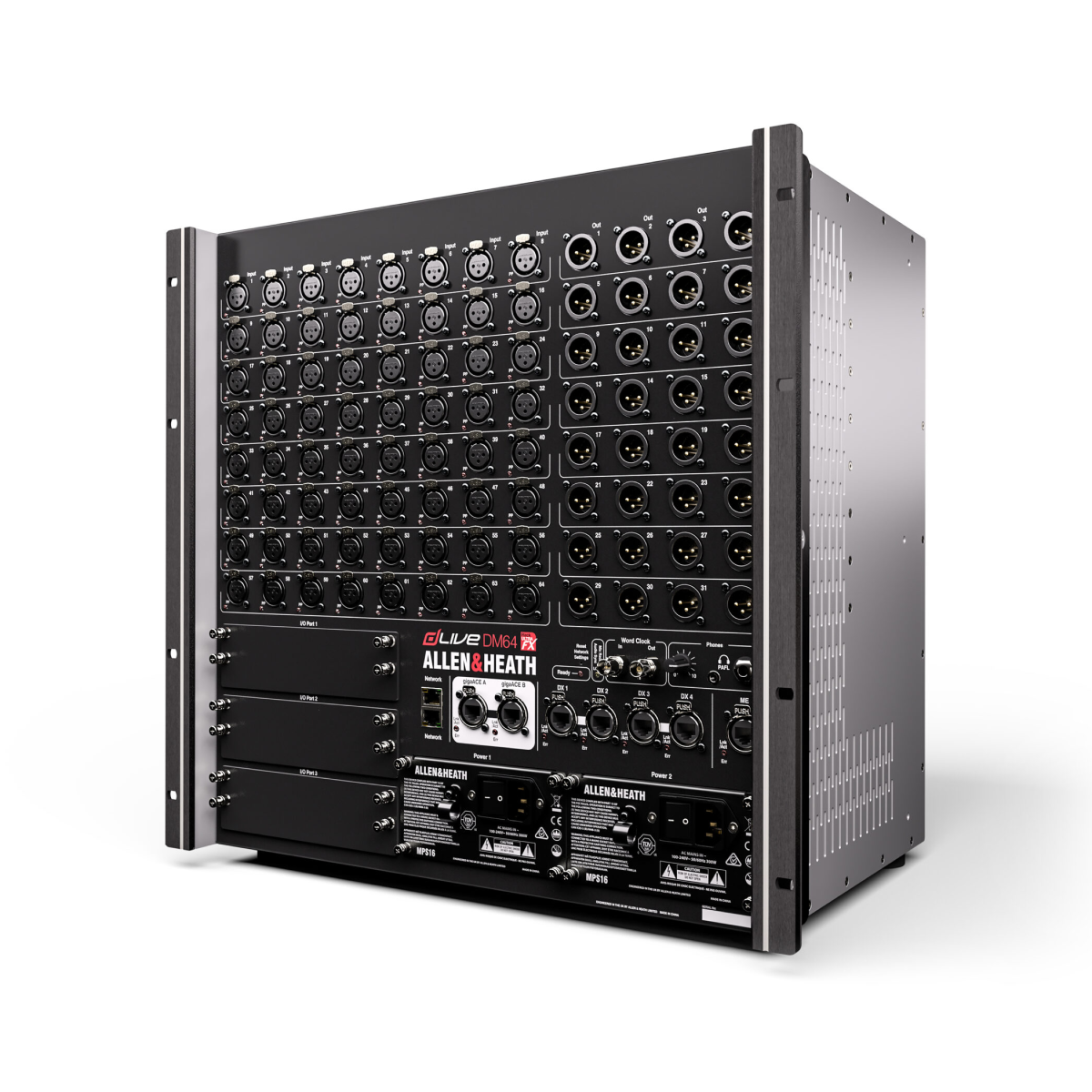

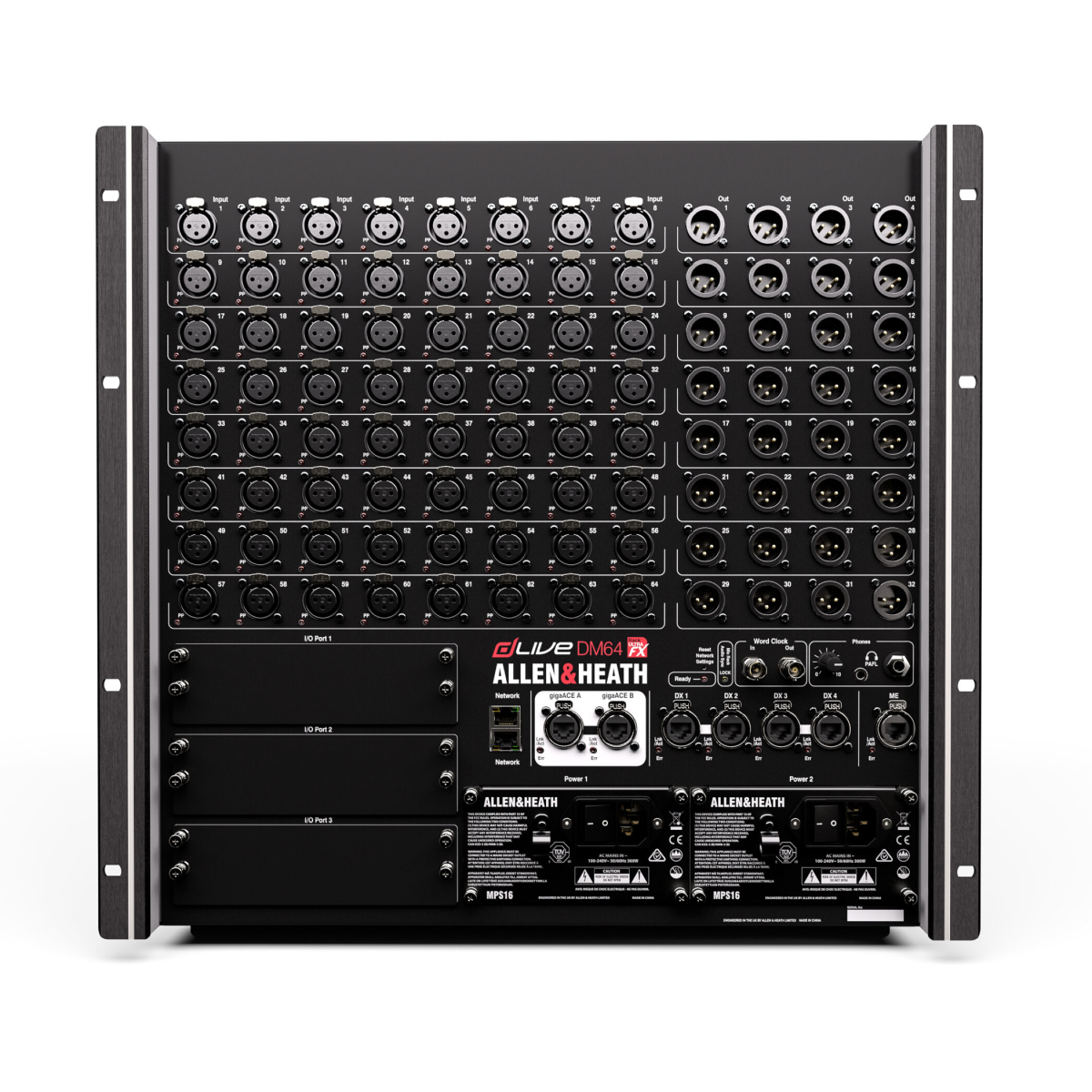

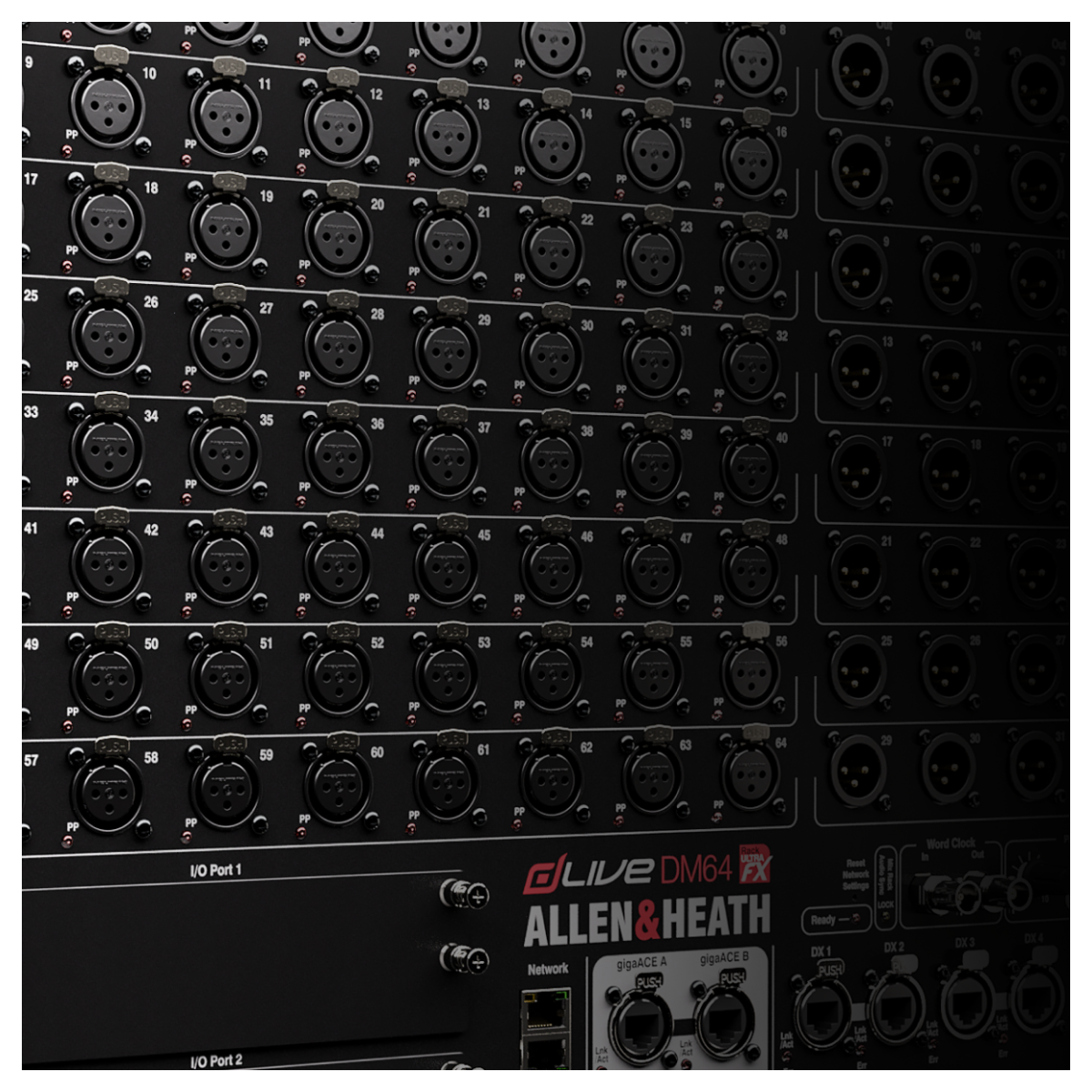

Allen & Heath dLive DM64 MixRacks 64-Input Digital Stage Box - Price on Request

The Unrivaled Brain of Your dLive Ecosystem

The Allen & Heath dLive DM64 is the flagship MixRack of the dLive series, designed to be the high-performance heart of any professional digital mixing setup. Housing the groundbreaking XCVI processing core, this 10U powerhouse provides the staggering levels of I/O and routing required for elite-level touring, large-scale house of worship installs, and high-end studio environments. It is the ultimate choice for mixing engineers who demand uncompromising flexibility and sonic integrity.

Infinite Headroom with the XCVI Processing Core
Experience a new standard of audio clarity and dynamic range. Powered by 36 parallel processing cores, the XCVI engine generates enough horsepower for 160 x 64 channels of processing at 96kHz. Its 96-bit accumulator ensures virtually infinite mix headroom, while a class-leading 0.7ms latency ensures that your signal remains phase-aligned and immediate. This means your mix maintains its warmth and transparency even under the most demanding processing loads.

Studio-Grade Processing Without the Latency
Elevate your sound with DEEP technology, which embeds world-class processing directly into the DM64’s input and mix channels. You get access to a legendary portfolio of RackExtra FX emulations, including boutique compressors and EQs, without burning valuable FX slots or introducing external latency. This allows for a streamlined workflow and a character-rich sound that traditionally required racks of outboard gear.

Main features:

• 64 recallable mic/line inputs with high-quality transparent preamps
• 32 balanced XLR line outputs protected by relay circuitry
• XCVI 160x64 FPGA core running at a native 96kHz sample rate
• 128 full input channels and 64 mix outputs with dedicated processing
• Configurable 64-bus architecture for maximum flexibility in any application
• 16 RackExtra FX slots with dedicated stereo returns for premium time-based effects
• Three 128-channel I/O ports supporting Dante, Waves SoundGrid, MADI, and ACE
• Dual redundant, hot-swappable power supply capability for mission-critical reliability
• Seamless integration with dLive Surfaces, IP remotes, and ME personal mixing systems

Tech Specs:

• Core Engine: XCVI 160x64 FPGA Core
• Operating Sample Rate: 96kHz
• Internal Processing: 96-bit Accumulator
• System Latency: <0.7ms (In to Out)
• Channel Capacity: 128 Inputs / 64 Mix Outputs with full processing
• Onboard FX Slots: 16 RackExtra FX with dedicated stereo returns
• Mic/Line Inputs: 64 x XLR (balanced, +48V phantom power)
• Line Outputs: 32 x XLR (balanced, relay protected)
• Option Slots: 3 x 128-channel I/O ports (Dante, Waves, MADI, ACE)
• Surface Link: Dual redundant gigaACE Link (2 x EtherCon)
• Expander Links: 4 x Redundant DX Links (EtherCon)
• Network Ports: 2 x RJ45 Gigabit Ethernet
• Personal Mixing: 1 x ME-1 Port (EtherCon, 40 channels at 48kHz)
• Word Clock: BNC In/Out
• Audio Conversion: 24-bit Delta Sigma ADC/DAC
• Headphones: 1 x 1/4", 1 x 1/8" with dedicated level control
• Rack Size & Dimensions: 10U | 482.6 x 313 x 458 mm
• Physical Weight: 21 kg (approx. 46.3 lbs)
• Power Supply: Dual redundant, hot-swappable (ships with one standard)
• Explore Allen & Heath MixRack Solutions [dLive DM64]: https://www.allen-heath.com/hardware/dlive-series/dlive-mixracks/
