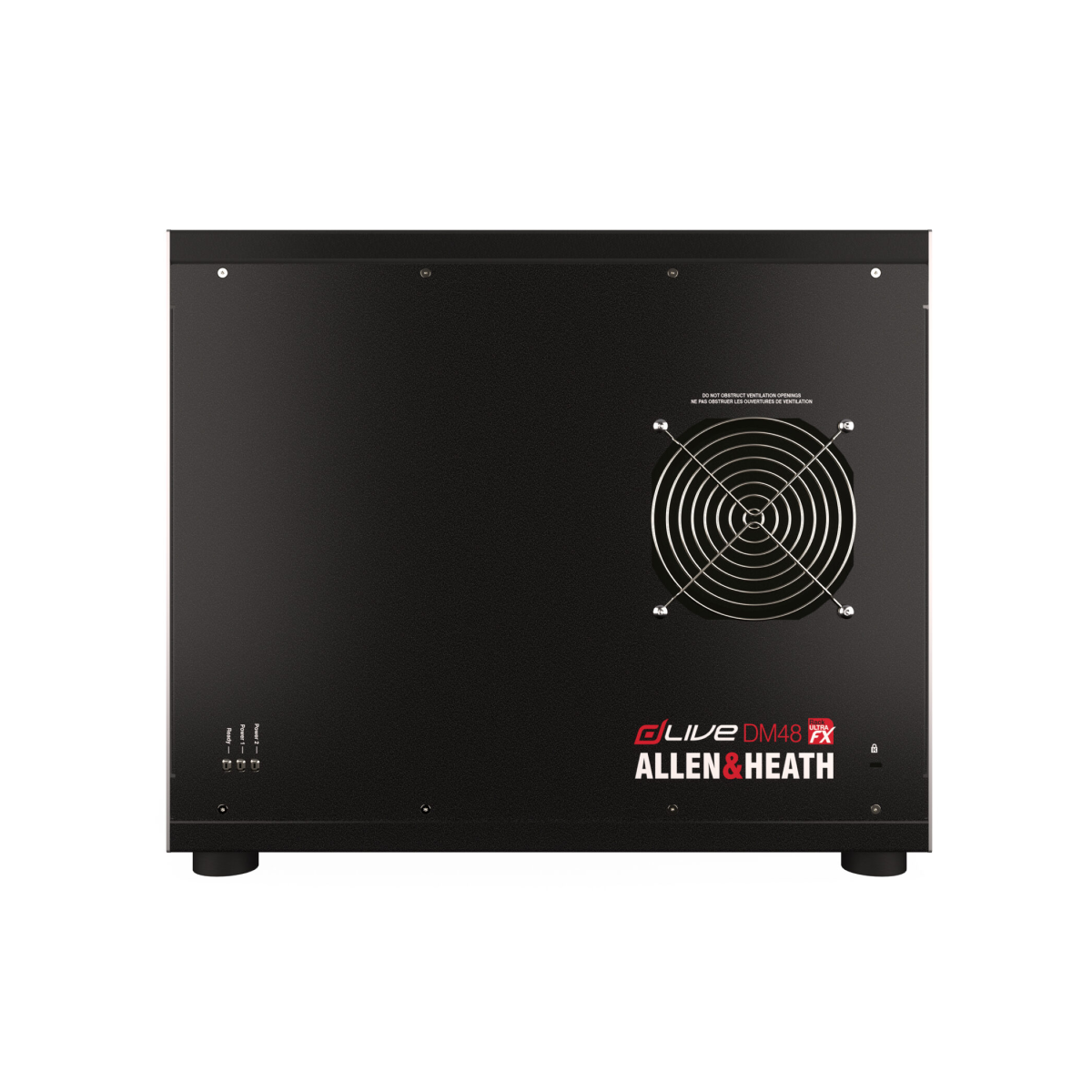

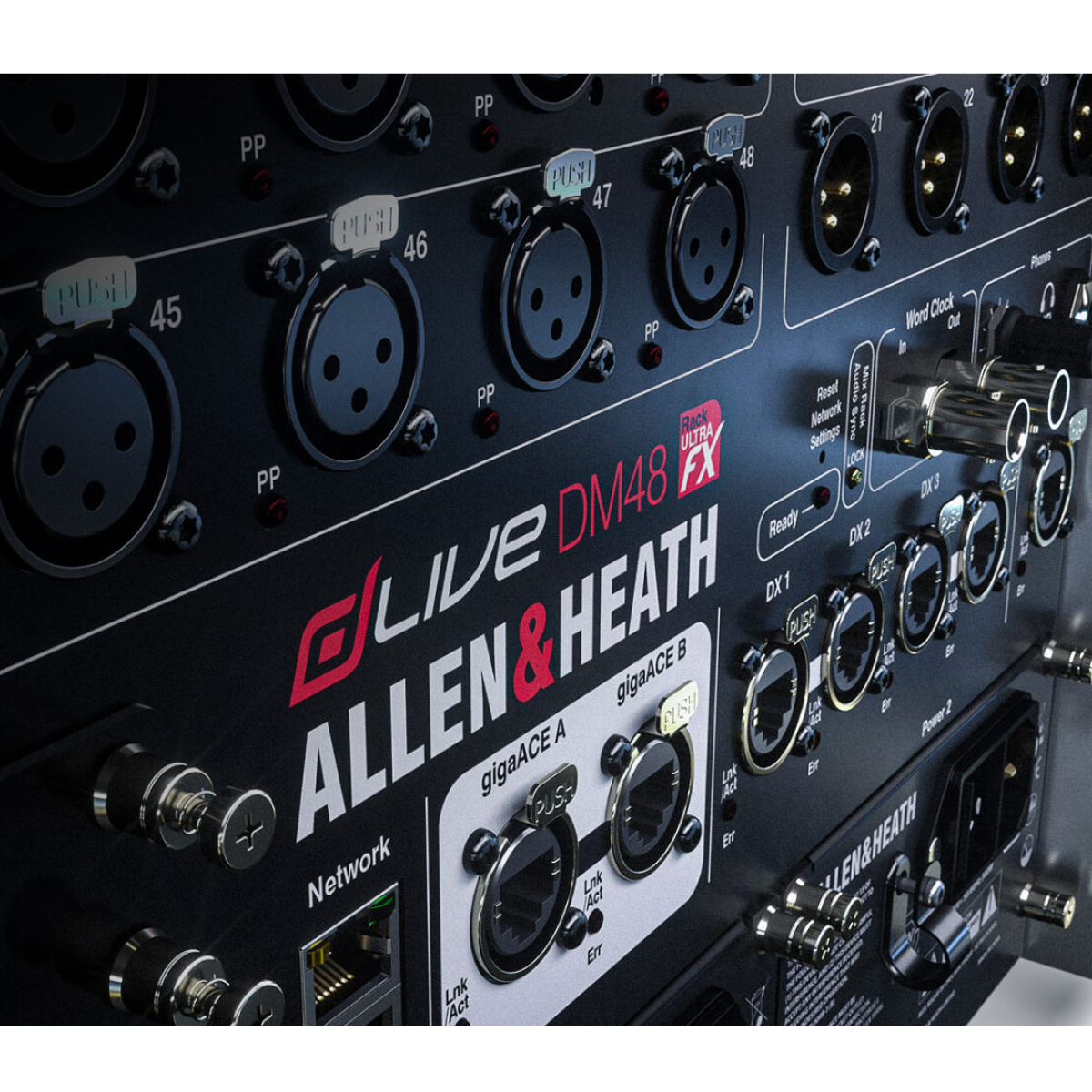

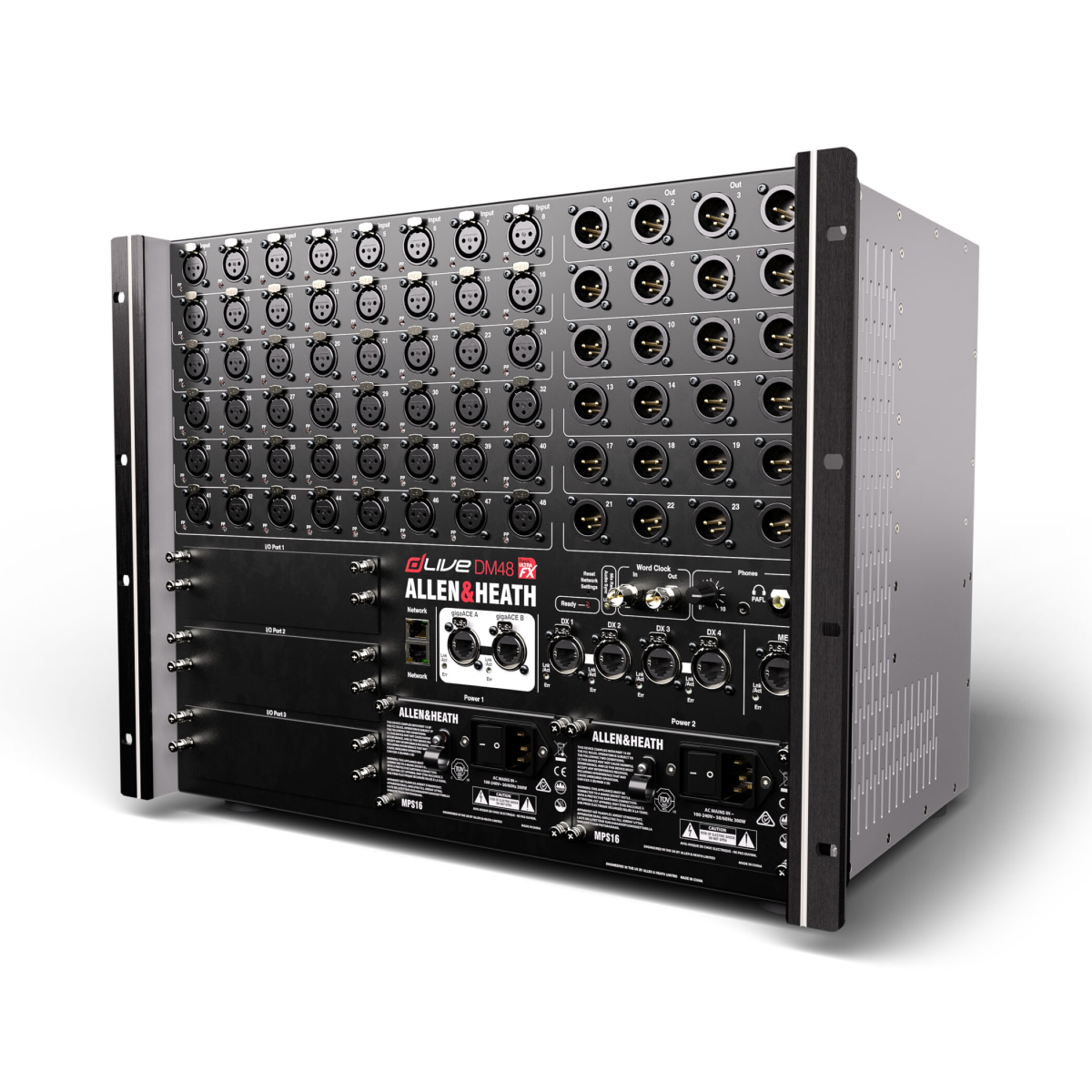

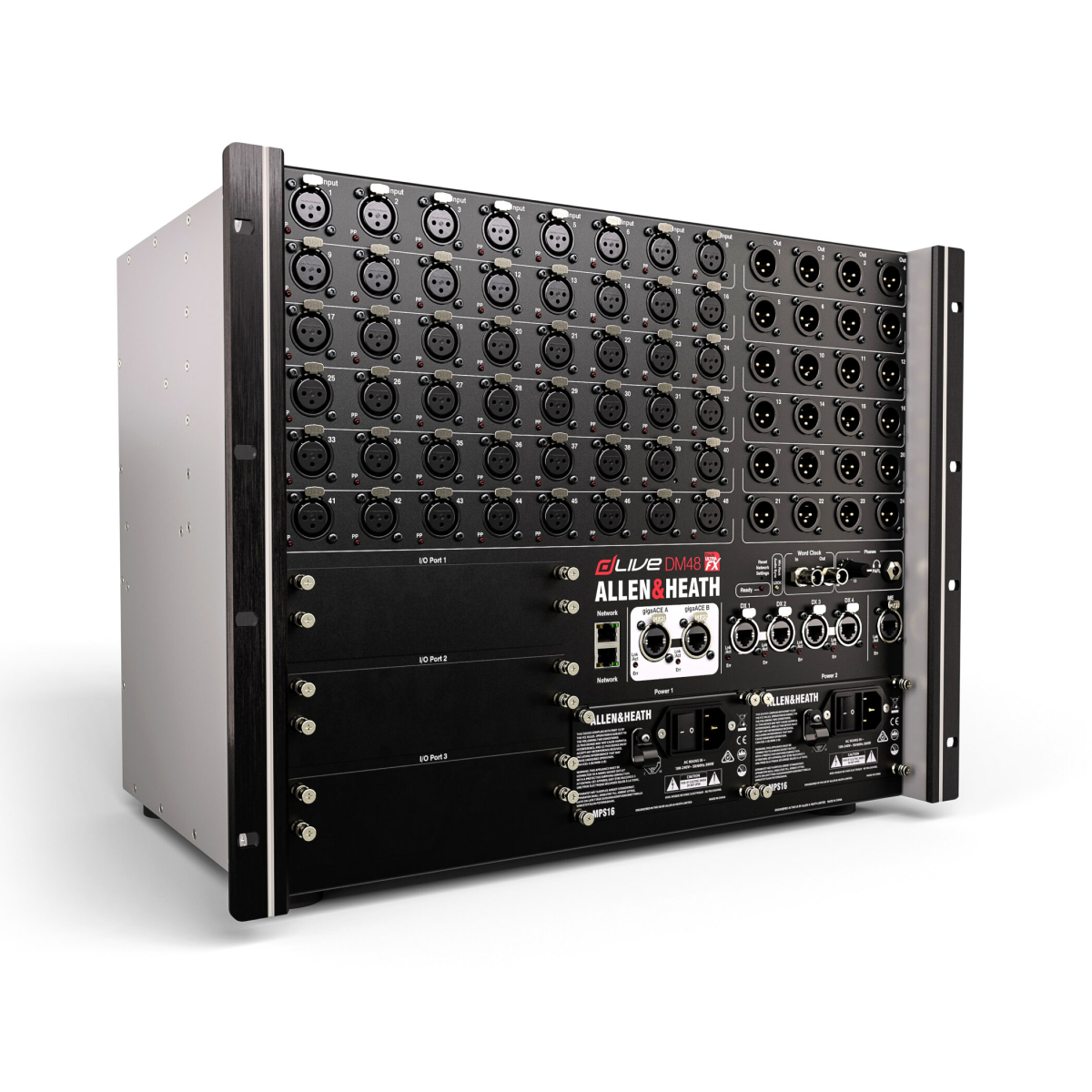

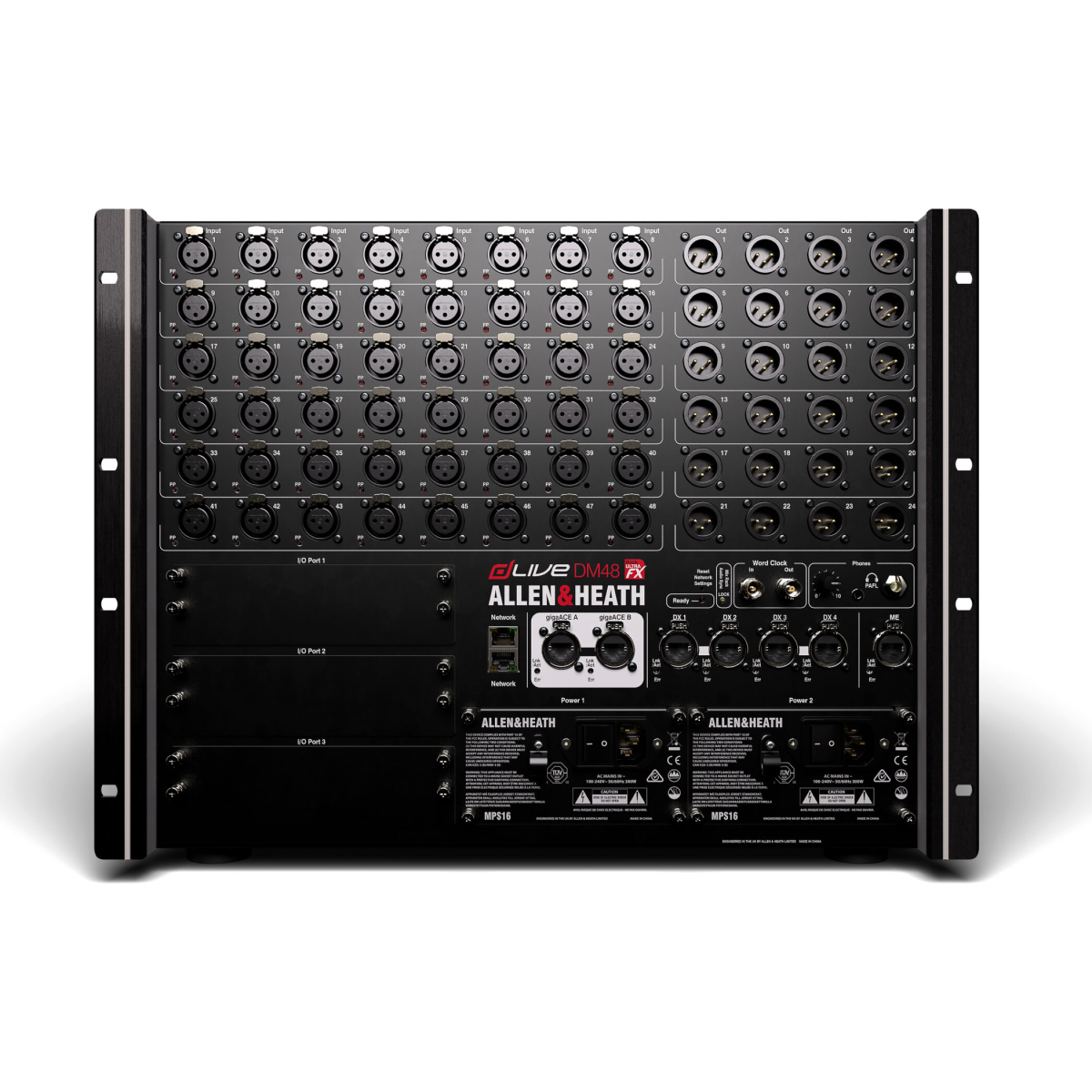

Allen & Heath dLive DM48 MixRack 48-input Digital Stage Box - Price on Request

The Powerhouse Behind Every World-Class Performance

The Allen & Heath dLive DM48 is the brain of the dLive mixing system. This rugged rack unit houses the audio engine and I/O, delivering flexible processing for large-scale productions. Whether managing monitor mixes or front-of-house rigs, it provides the headroom and stability demanding environments require.

Unrivaled Processing with XCVI FPGA Power
At the heart of the DM48 lies the XCVI Core, a revolutionary 160x64 FPGA mix engine delivering 25 billion operations per second. It manages 128 input channels and 64 mix buses at 96kHz with a 96-bit accumulator for virtually infinite headroom. Ultra-low latency of just 0.7ms ensures every nuance is captured with absolute transparency.

Studio-Grade Character via DEEP Technology
The DM48 embeds dLive's DEEP processing directly into channels, letting you insert high-end emulations of classic compressors, EQs, and preamps without latency. Keep processing in-box for boutique warmth and a clean, phase-coherent signal path.

Tour-Ready Resilience and Massive Expansion
Dual redundant, hot-swappable power supplies keep your show running. Three 128-channel I/O ports support Dante, Waves, MADI, and ACE expansion. Scale from standalone rack to 848x848 multi-surface network—future-proof connectivity for any production.

Main features:

• 128 input channels with full signal processing
• Configurable 64 bus architecture for groups, FX, and auxiliary sends
• XCVI 160x64 FPGA core delivering high-resolution 96kHz audio
• 48 recallable mic/line preamps with 24 XLR line outputs
• DEEP processing architecture for latency-free channel plugins and boutique emulations
• 16 RackExtra FX engines with dedicated stereo returns for studio-quality reverbs and delays
• Three 128-channel I/O ports supporting Dante, Waves, and MADI expansion
• Dual redundant, hot-swappable power supply for maximum reliability
• Ultra-low 0.7ms system latency from input to output
• Active PAD circuit on every preamp for consistent performance across all sources

Tech Specs:

• Core Engine: XCVI 160x64 FPGA
• Sample Rate & Processing: 96kHz / 96-bit Accumulator
• System Latency: 0.7ms (Analogue In to Out)
• Channel Capacity: 128 Inputs / 64 Mix Outputs with full processing
• Onboard FX Slots: 16 RackExtra FX with stereo returns
• Mic/Line Inputs: 48 x XLR (Balanced, +48V Phantom)
• Line Outputs: 24 x XLR (Balanced, Relay Protected)
• Option Slots: 3 x 128-channel (Dante, MADI, Waves, ACE)
• Surface Link: Dual redundant gigaACE (Gigabit Ethernet)
• Expander Links: 2 x Redundant DX links
• Personal Mixing: Dedicated ME-1 port (40ch, 48kHz)
• Network Ports: 2 x RJ45 Gigabit Ethernet
• Rack Size & Dimensions: 19-inch, 8U | 482.6 x 313 x 369 mm
• Physical Weight: 17.5 kg
• Power Consumption: 300W Max (MPS16 V1) / 250W Max (MPS16 V2)
• Explore Allen & Heath MixRack Solutions [dLive DM48]: https://www.allen-heath.com/hardware/dlive-series/dlive-mixracks/
