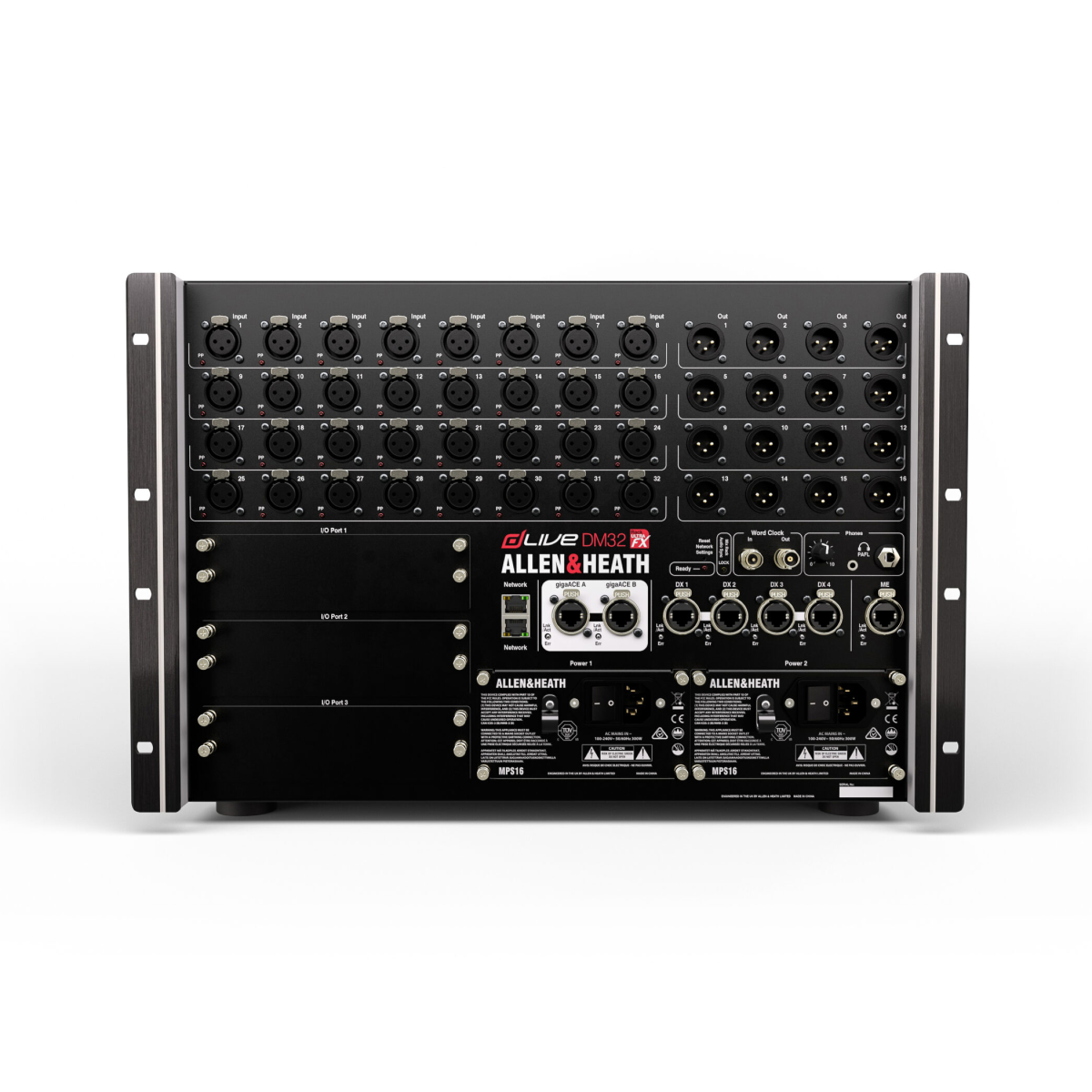

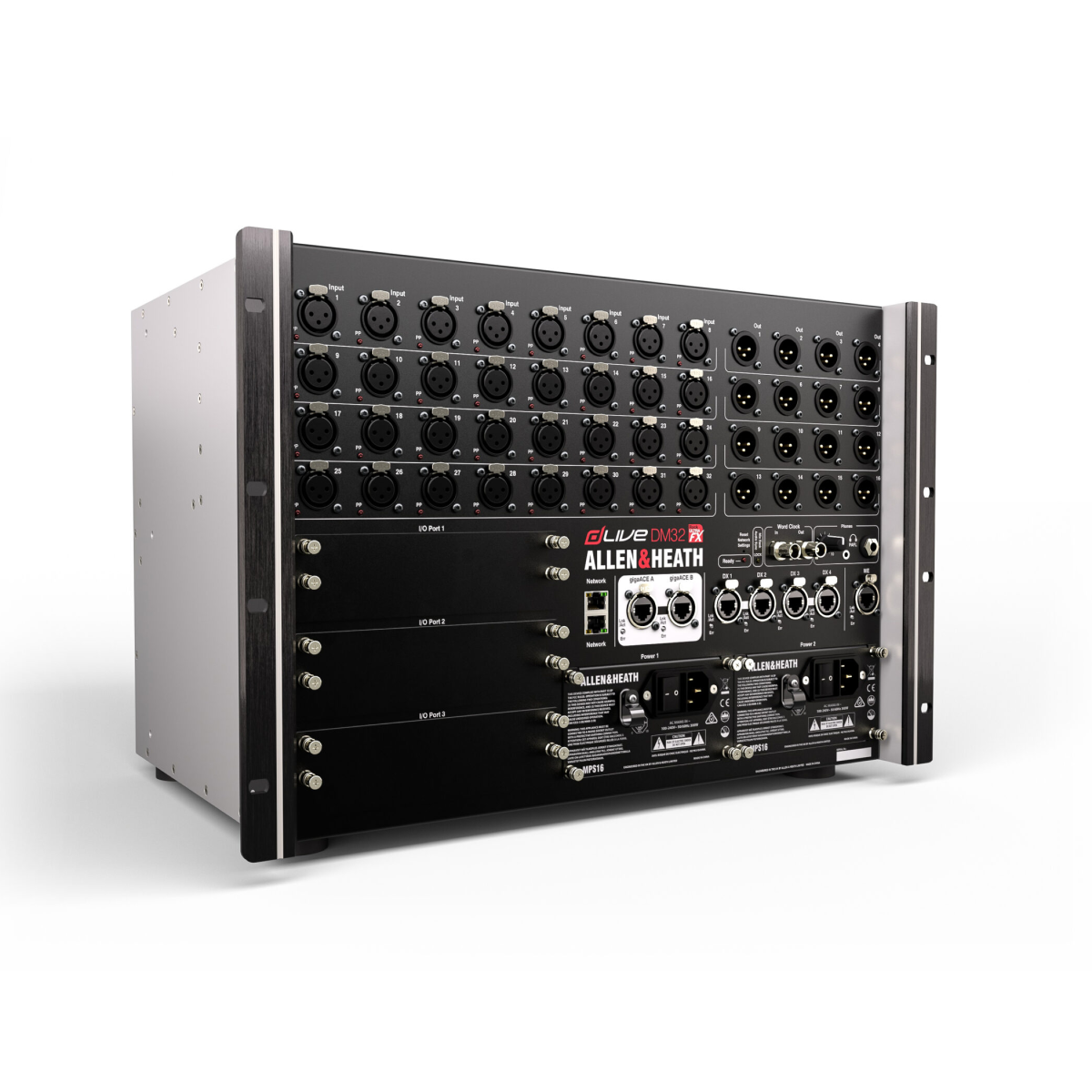

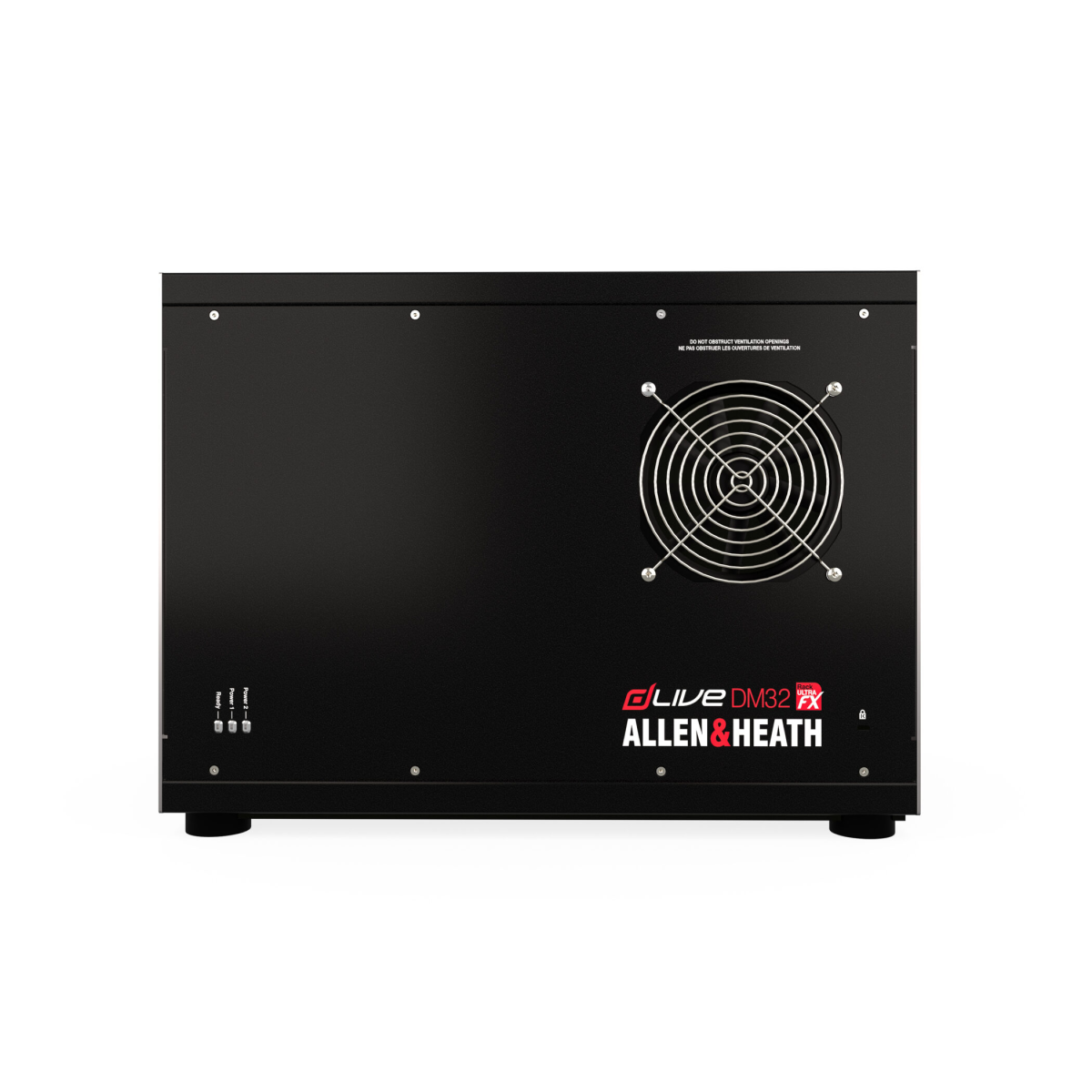

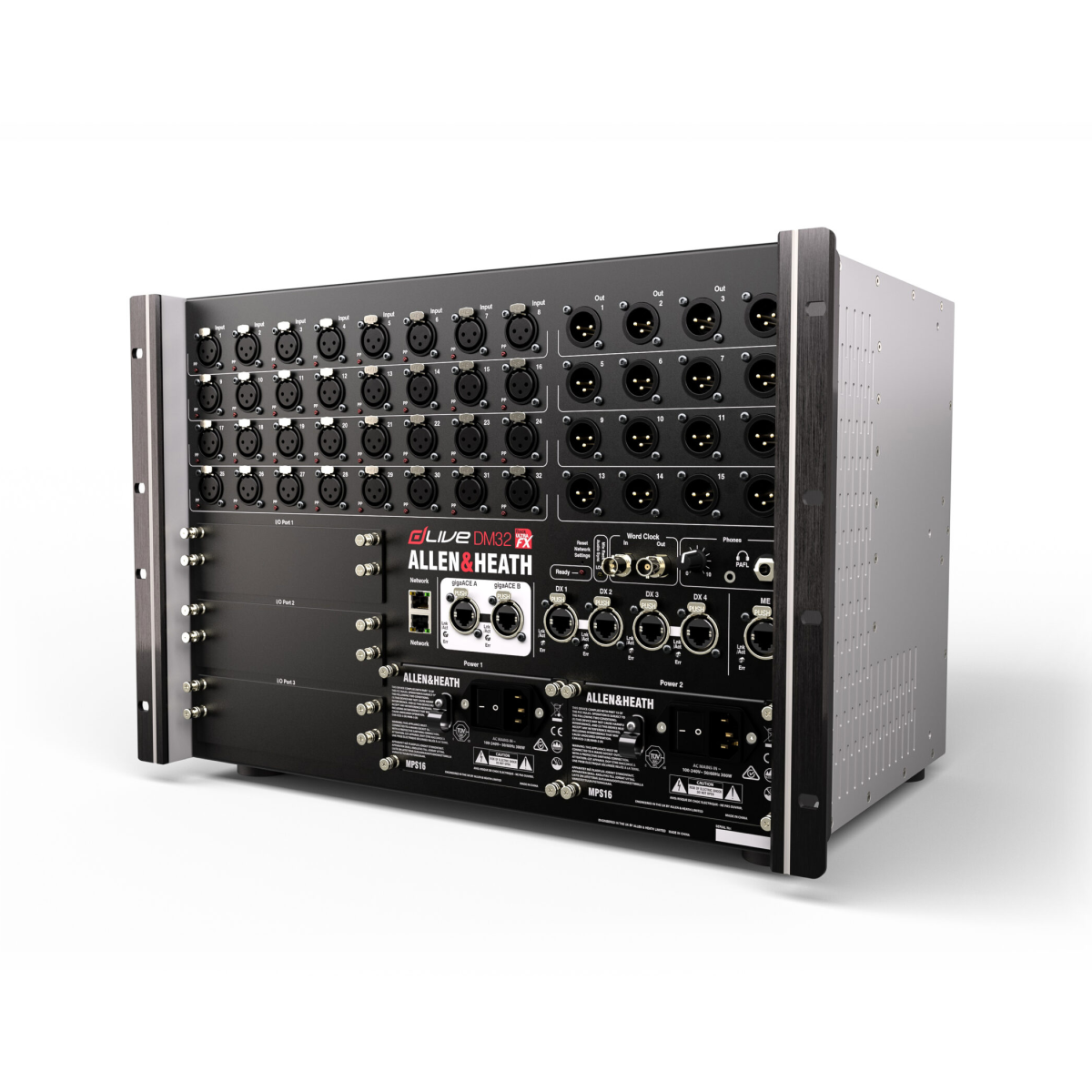

Allen & Heath dLive DM32 MixRack 32-input Digital Stage Box - Price on Request

The Powerhouse Heart of Your Sonic Universe

The Allen & Heath dLive DM32 is far more than a stage box; it is a self-contained, 128-channel mix engine designed for the most demanding live sound and installation environments. Whether you are a touring engineer requiring mission-critical reliability or an installation specialist demanding total sonic transparency, the DM32 delivers elite XCVI FPGA processing in a robust 7U rackmount chassis. Capable of operating with or without a surface, it provides professional-grade audio for mixing engineers who refuse to compromise.

Infinite Headroom for Pure Sonic Clarity
Powered by the revolutionary XCVI 160x64 FPGA core, the DM32 provides a 96-bit accumulator that offers virtually infinite headroom for your mixes. This massive processing power, combined with a 96kHz sample rate, ensures that every nuance of your audio is preserved with ultimate precision. With a new preamp design for extra transparency and a unique Active PAD circuit, the DM32 handles any source—from sensitive vocals to high-output instruments—with clinical accuracy and zero coloration.

Processing Without Boundaries
Forget the limitations of external plugins and high-latency hardware. The DM32 features 128 input channels and 64 mix outputs, all running at a class-leading system latency of just 0.7ms. Thanks to integrated DEEP processing, you gain access to powerful boutique compressor and GEQ emulations directly within the channel strips. This allows you to sculpt your sound using classic analog models on the fly, without the need for external licenses or additional hardware.

Main features:

• XCVI 160x64 FPGA core running at a native 96kHz sample rate
• 32 high-quality microphone/line inputs and 16 line outputs
• 128 input channels and 64 mix outputs with full signal processing
• Configurable 64-bus architecture supporting groups, FX, aux, and matrices
• DEEP processing architecture for zero-latency plugin emulations
• 16 RackExtra FX engines with dedicated stereo returns
• Dual redundant, hot-swappable power supplies for maximum reliability
• Three 128-channel I/O ports for expansion via Dante, MADI, and Waves SoundGrid
• Dual redundant GigaACE gigabit links for control surface connection
• Automatic Mic Mixing (AMM) supporting up to 64 microphones across 4 zones
• Stand-alone operation via laptop or iPad using Director software
• Reversible rack ears design for flexible installation

Tech Specs:

• Audio Core: XCVI 160x64 FPGA
• Sample Rate & Processing: 96kHz / 96-bit Accumulator
• Channel Capacity: 128 Input Channels / 64 Mix Outputs
• Local I/O: 32 Mic/Line Inputs / 16 Line Outputs
• System Latency: 0.7ms (Analogue In to Out)
• Headroom: +18dB
• Dynamic Range: 110dB
• THD+N: 0.0015% @ +16dBu output
• Audio Conversion: 24-bit Delta Sigma ADC/DAC
• Frequency Response: 20Hz – 30kHz (+0/-0.8dB)
• Onboard FX Slots: 16 RackExtra FX with dedicated returns
• Expansion Ports: 3x 128-ch 96kHz I/O Ports
• Power Supply: Dual Redundant, Hot Swappable, 100-240V AC
• Rack Size & Dimensions: 7U Rack | 482.6 x 313 x 325 mm
• Physical Weight: 15kg
