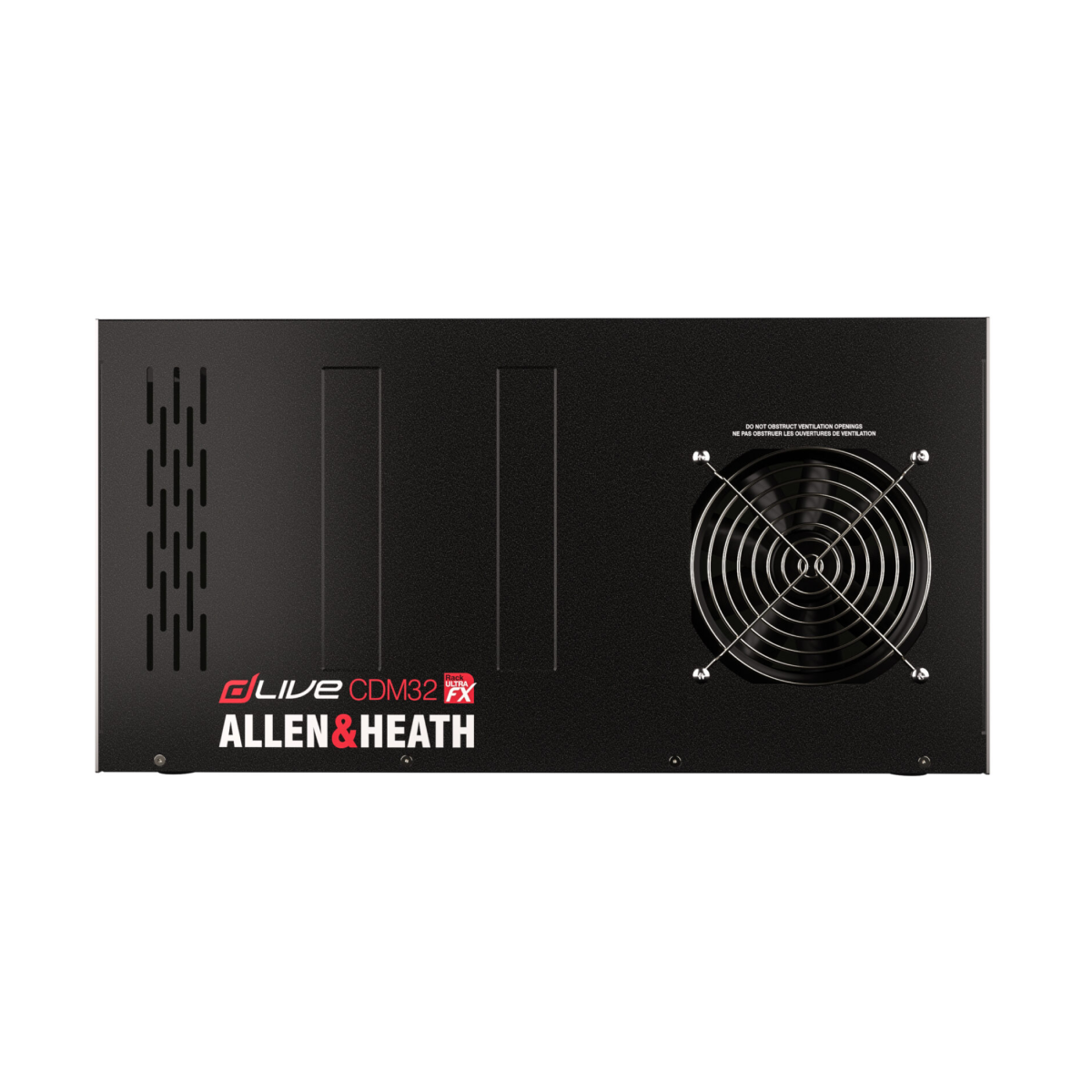

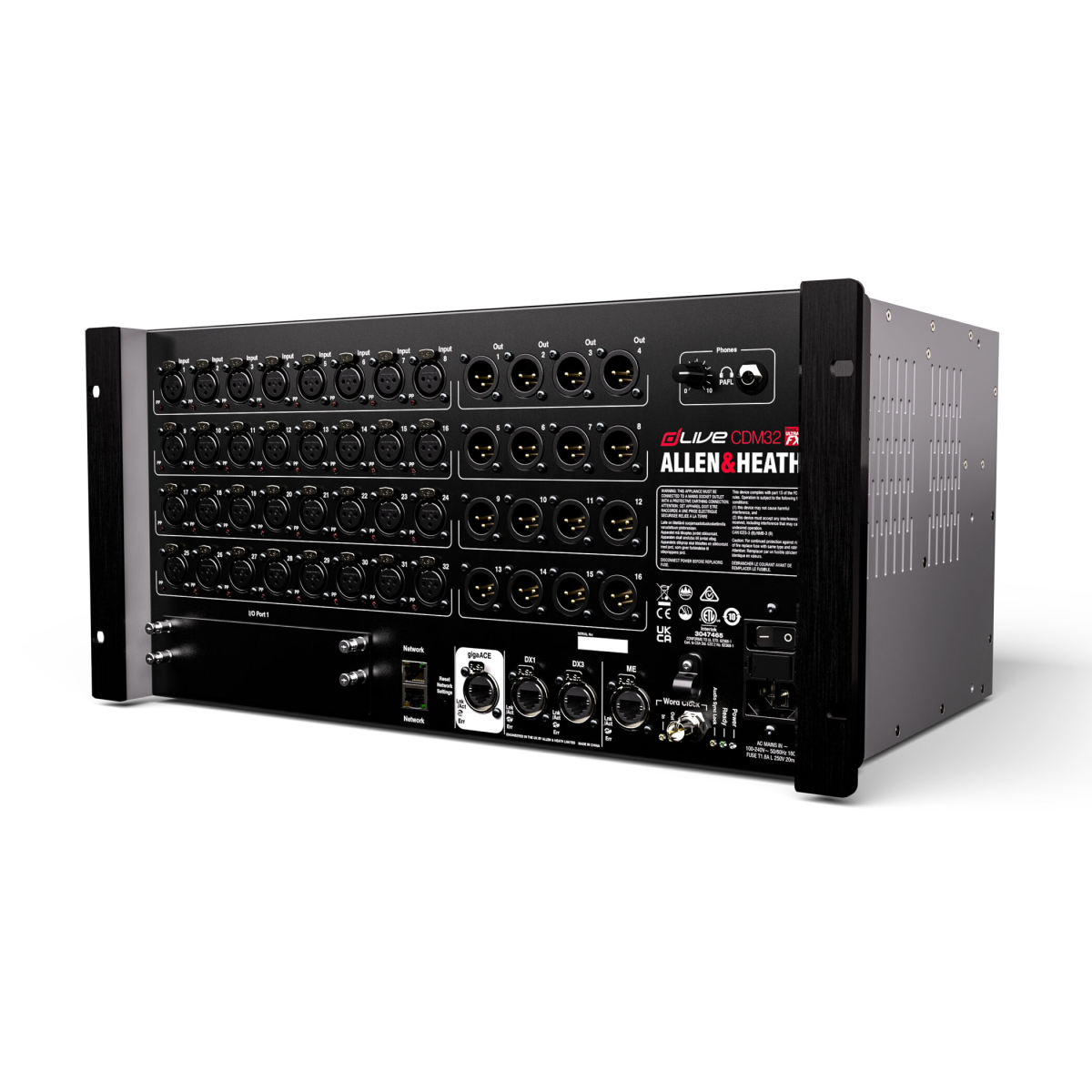

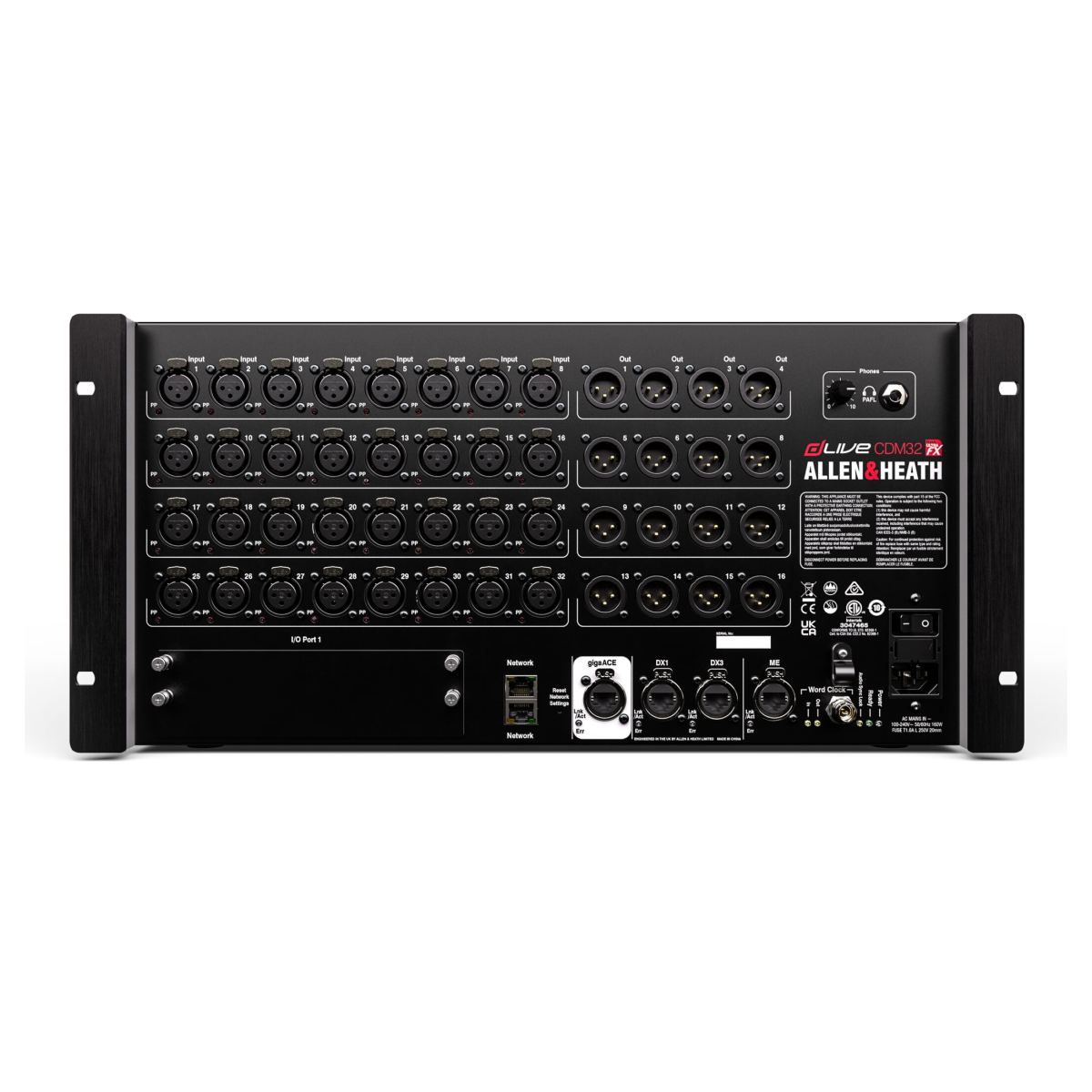

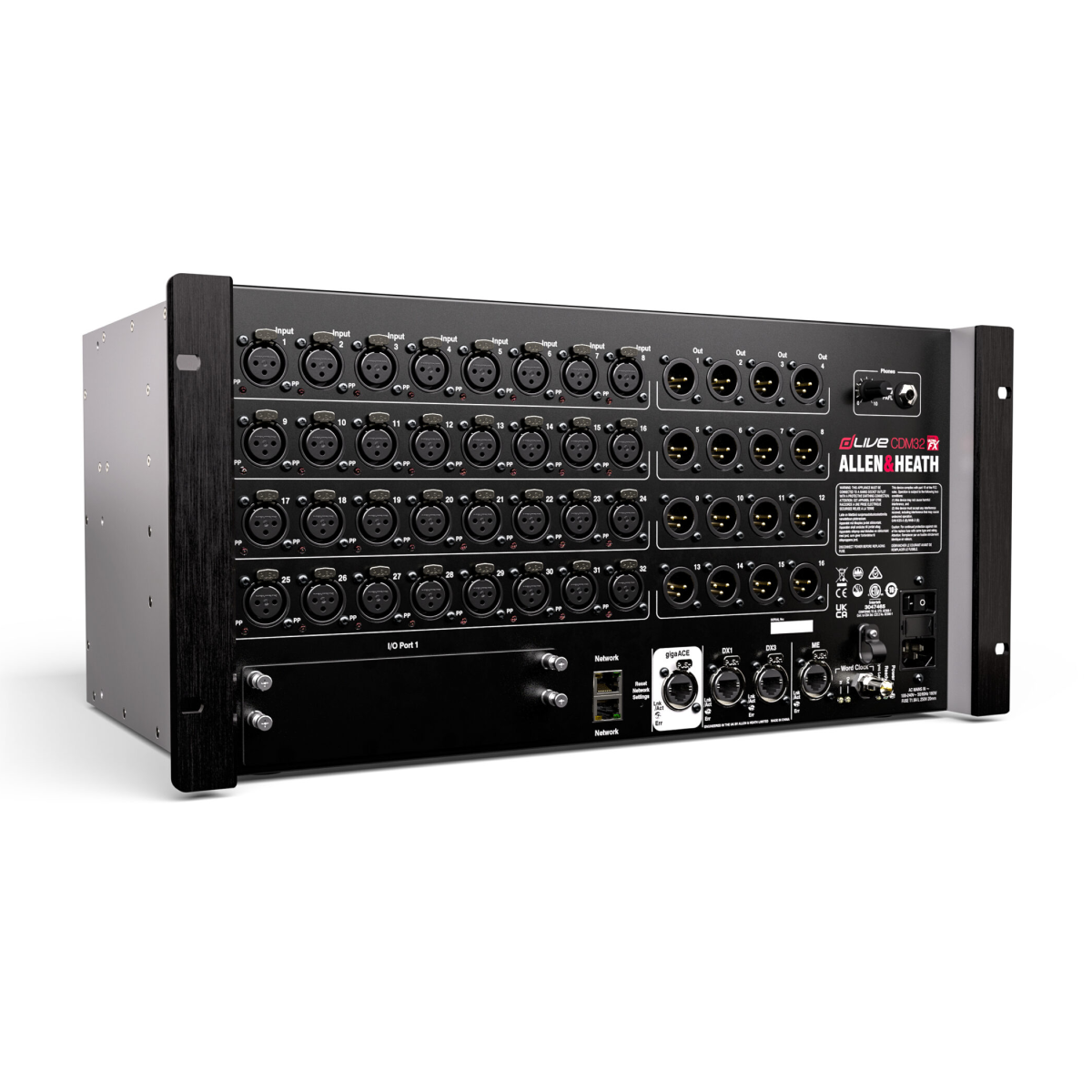

Allen & Heath dLive CDM32 MixRacks 32-Input Digital Stage Box - Price on Request

The Brain Behind Your Best Mix Ever

The Allen & Heath dLive CDM32 is the compact powerhouse at the heart of the dLive C Class ecosystem. By separating the mix engine from the control surface, this MixRack puts massive processing power exactly where you need it - on stage. Designed for mixing engineers, rental houses, and houses of worship, the CDM32 offers a full 128 channels of 96kHz processing in a portable 5U rack, ensuring your production sounds like a world-class studio, regardless of the venue size.

XCVI Core: Infinite Headroom & Sonic Precision
Powered by next-generation FPGA technology, the XCVI Core delivers 25 billion operations per second to provide a virtually infinite mix headroom via its 96-bit accumulator. For the engineer, this translates to stunningly transparent audio and an industry-leading 0.7ms latency, ensuring your performers hear themselves with zero perceptible delay, even when the mix is loaded with heavy processing.

DEEP Processing: Boutique Analogue Warmth, Digital Efficiency
Eliminate the setup, latency, and licensing hassles of external plugins. The DEEP processing architecture embeds highly acclaimed compressor and preamp emulations directly into every input and mix channel. These algorithms capture the subtle nuances of valve and optical classics, allowing you to inject rich, analogue character and warmth into your digital mix while maintaining absolute phase coherency.

Main features:

• 32 mic/line inputs and 16 line outputs on high-quality balanced XLR connectors
• 128 input channels and 64 mix outputs with full processing
• XCVI 160x64 FPGA core running at 96kHz for superior audio resolution
• 16 RackExtra FX slots with dedicated stereo returns for boutique-grade effects
• 64 Dyn8 engines providing 4 bands of dynamic EQ and 4 bands of multiband compression
• GigaACE link for high-speed connection to dLive surfaces or third-party hardware
• Dedicated ME-1 port for seamless integration with personal monitoring systems
• Stand-alone operation capable with dLive Director software for laptop and tablet control
• Configurable 64-bus architecture supporting LR, LCR, and up to 5.1 mains mode
• Reversible rack ears design for flexible mounting in cases or installs

Tech Specs:

• Mixing Engine: XCVI 160x64 FPGA
• Sampling Rate: 96kHz +/- 20 PPM
• System Latency: < 0.7ms (Analogue In to Out)
• Channel Capacity: 128 Inputs / 64 Mix Busses with full processing
• Mic/Line Inputs: 32 Balanced XLR
• Line Outputs: 16 Balanced XLR
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB (1dB steps)
• Maximum Input Level: +30dBu (with PAD in)
• Onboard FX & Processing: 16 RackExtra FX Slots with stereo returns | 24 DCAs
• I/O Port: 1x 128-channel 96kHz Port
• Dynamic Range: 110dB
• Frequency Response: 20Hz - 30kHz (+0/-0.8dB)
• THD+N: 0.0015% @ +16dBu output
• Rack Space & Dimensions: 5U | 481.6 x 309 x 221 mm
• Physical Weight: 10kg (22lbs)
• Power Supply: 100-240V AC, 175W max
• Explore Allen & Heath MixRack Solutions [dLive CDM32]: https://www.allen-heath.com/hardware/dlive-series/dlive-mixracks/
