AKG C114 Large-Diaphragm Multi-Pattern Condenser Microphone

Legendary Capsule DNA with Modern Transparency

At the heart of the AKG C114 is a custom-engineered 26 mm gold-sputtered, dual-diaphragm capsule. Its edge-terminated design is directly inspired by the celebrated capsule technology of the historic C12 and C414 lineage, offering a soaringly sweet treble, a beautifully balanced, uncoloured midrange and a firm, textured low-end. The transformerless FET circuit captures rapid transients with outstanding clarity and avoids harsh metallic sibilance.

Three Selectable Polar Patterns for Pure Versatility
The C114 features a user-friendly sliding pattern switch for instant selection between cardioid, omnidirectional and figure-of-eight polar patterns. Cardioid mode isolates vocals with natural off-axis rejection; omnidirectional captures lifelike room ambiance; figure-of-eight records two facing sources or side signals for stereo configurations.

High Headroom and Eco-Conscious Durability
The C114 is engineered to handle delicate whispers and explosive performances with equal, distortion-free fidelity. Boasting a massive maximum sound pressure level of 145 dB SPL, it close-mics loud brass instruments, snare drums and high-gain guitar amplifiers without breaking a sweat. Despite its incredible performance, it boasts a remarkably low self-noise floor of 12 dB(A). Additionally, the robust rectangular body is crafted from 100% post-industrial recycled metals and alloys, while the fully recyclable packaging is designed for minimal environmental impact—proof that professional performance can go hand-in-hand with environmental responsibility.

Main features:

• Professional large-diaphragm multi-pattern condenser microphone for studio, broadcast and streaming
• High-quality 26 mm gold-sputtered dual-diaphragm true condenser capsule
• Edge-terminated capsule design directly inspired by the legendary C12 and C414 lineage
• Cardioid, omnidirectional and figure-of-eight selectable polar patterns for versatile acoustic capture
• Smooth high-frequency reproduction paired with an uncoloured, natural midrange
• Expansive frequency range from 20 Hz to 20 kHz to capture every subtle nuance
• Outstanding maximum SPL handling of 145 dB to easily manage high-gain amplifiers, drums and brass
• Extremely low self-noise of only 12 dB(A) ensures quiet, pristine recordings
• Optimised transformerless FET circuitry for clean signal paths and exceptionally fast transient response
• Sustainable body crafted entirely from 100% post-industrial recycled metals and alloys
• Professional 3-pin XLR male connector requiring standard 48V phantom power

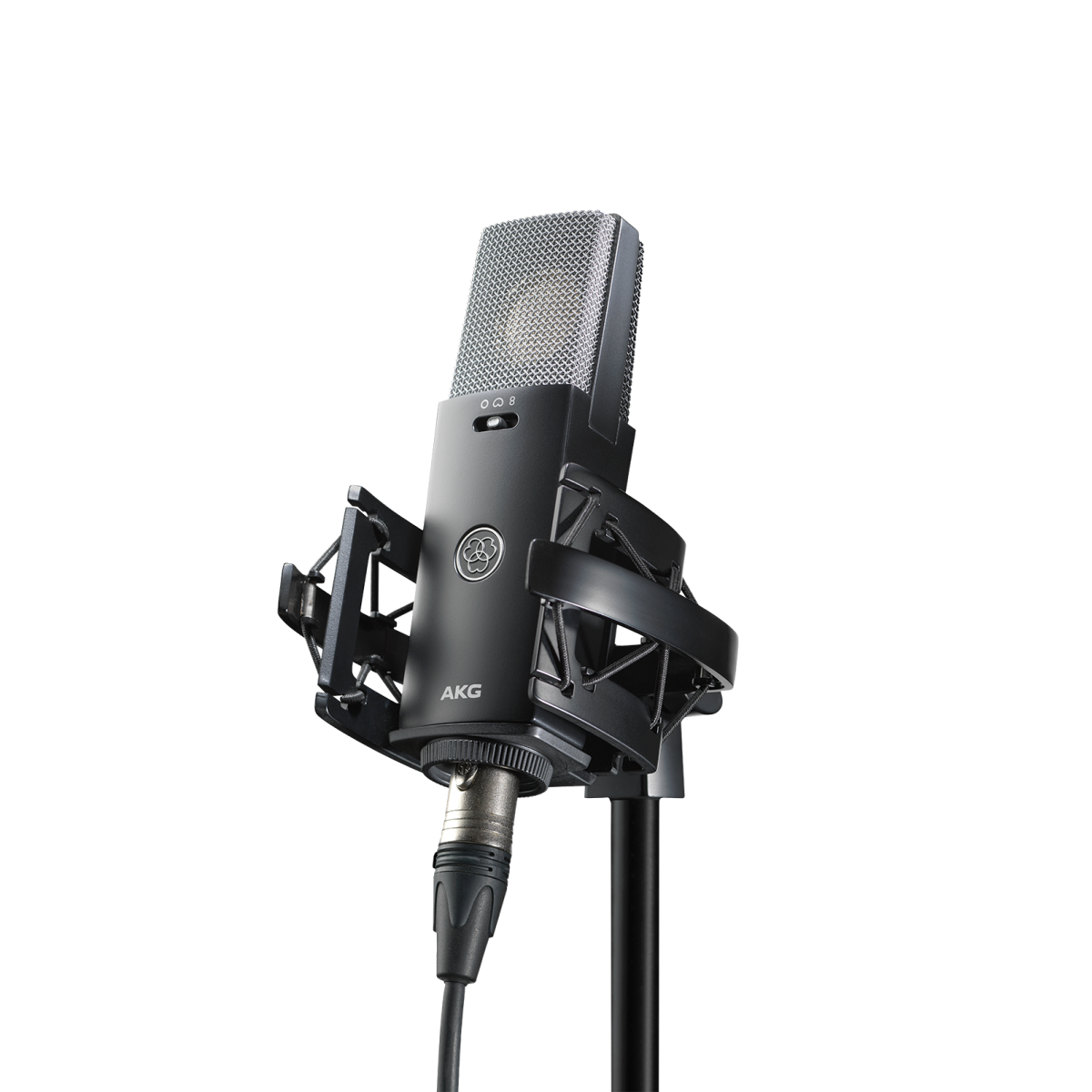

• Premium H84 all-metal shockmount included to securely isolate the microphone from structure-borne rumble

Package Includes

1 x C114 Multi-pattern Condenser Microphone
1 x H84 Shock mount

Tech Specs:

• Capsule Type: 26 mm dual-diaphragm true condenser pressure-gradient
• Capsule Design: Edge-terminated, gold-sputtered
• Polar Patterns: Cardioid, Omnidirectional, Figure-of-Eight
• Frequency Response: 20 Hz – 20 kHz
• Sensitivity (Cardioid): 13.5 mV/Pa (-37.4 dBV)
• Max SPL (for 0.5% THD): 145 dB SPL
• Self-Noise Level: 12 dB(A) SPL
• Signal-to-Noise Ratio: 82 dB (referenced to 1 Pa)
• Electrical Impedance: 200 ohms or less
• Recommended Load Impedance: 1000 ohms or greater
• Phantom Powering: 48 V ±4 V (to IEC 61938)
• Current Consumption: 5 mA or less
• Connector Type: 3-pin XLR (pin 2 hot)
• Body Construction: 100% recycled post-industrial metals and alloys
• Dimensions (L x W x H): 158 mm x 47 mm x 35 mm
• Net Weight: 415 g
• Operating Temperature: -5°C to 50°C
