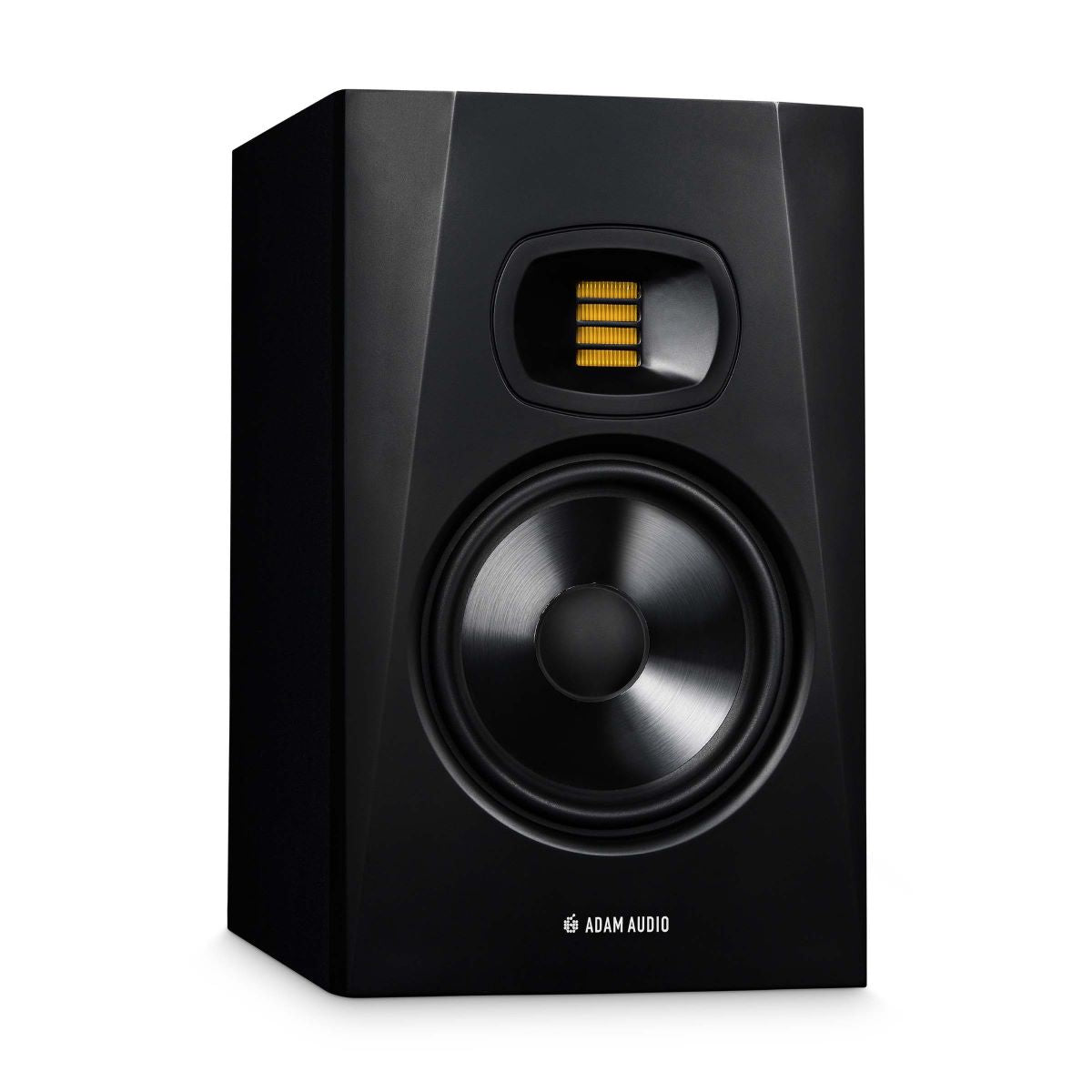

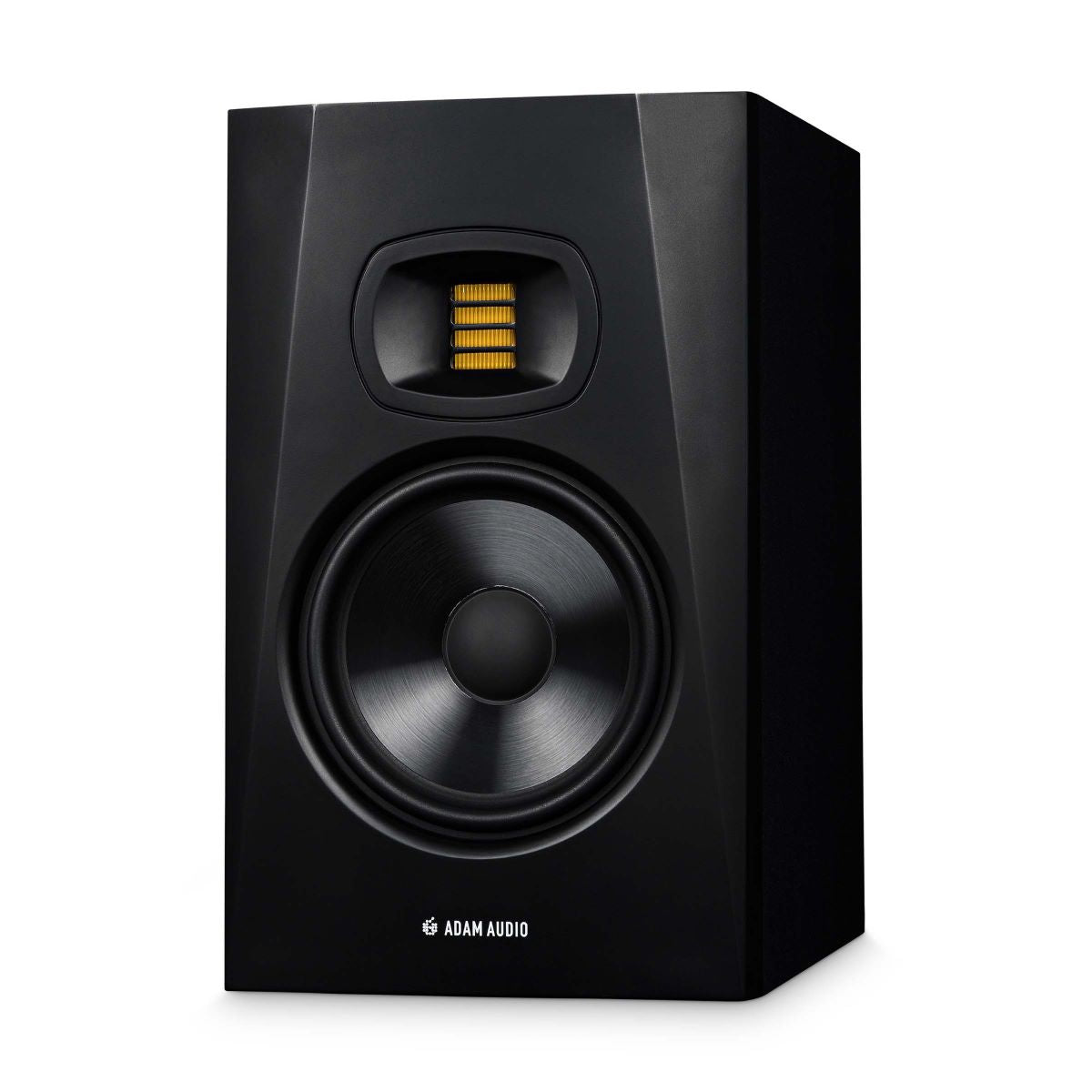

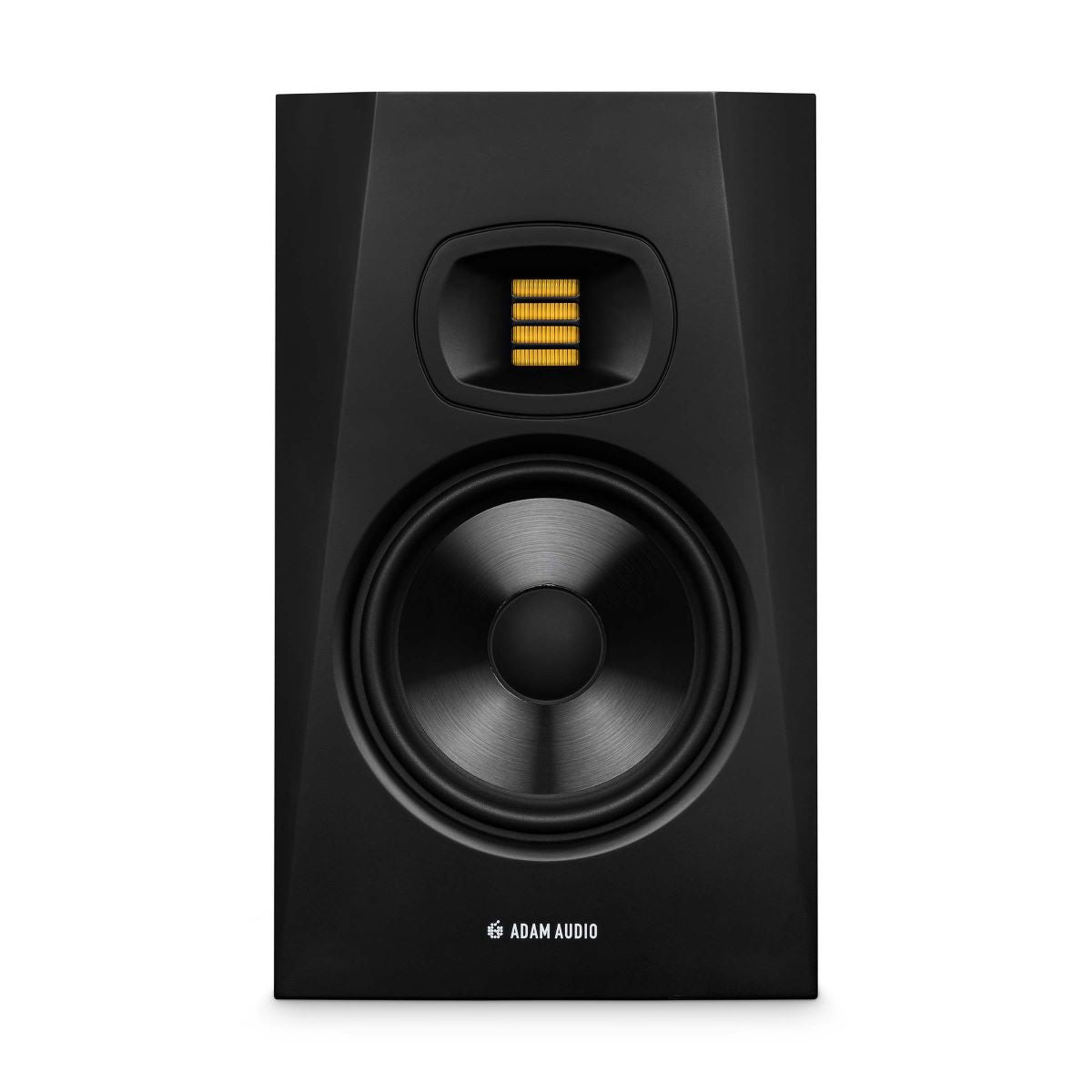

ADAM Audio T7V T Series 7" Powered Studio Monitor (Single)

The Art of Technology

The ADAM Audio T7V features a 7-inch woofer that extends bass down to 39 Hz and a U-ART tweeter delivering high frequencies up to 25 kHz, making it stand out among budget studio monitors. The tweeter is mounted on a precision waveguide for even sound dispersion and a wide sweet spot.

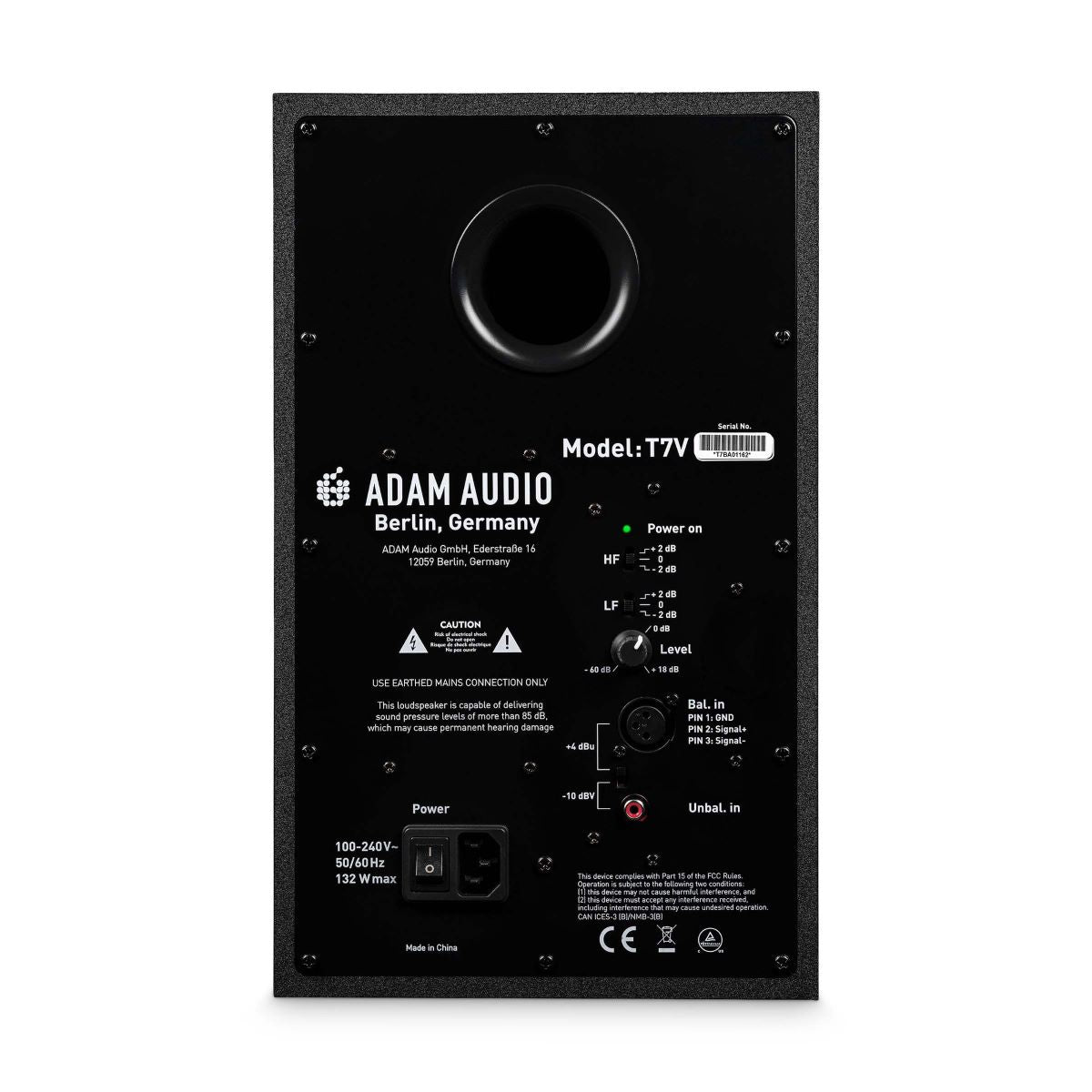

Its rear panel includes a bass reflex port and metal backplate with analogue inputs. The U-ART tweeter is powered by a 20 W Class-D amplifier, while the woofer uses a 50 W Class-D amplifier, achieving a maximum sound pressure level of 110 dB SPL per pair. With its compact design and broad frequency response, the T7V is an excellent choice for small control rooms in music and video production settings.

U-ART High Frequency Driver
The U-ART 1.9” accelerated ribbon tweeter, used in the T Series, is made from advanced polyimide film and delivers a high-frequency response up to 25 kHz—exceptional for its price range. This design is perfect for high-resolution recording and mixing on a budget. Unlike traditional dome or cone tweeters that use piston action, the U-ART tweeter employs a pleated ribbon that pulls in and expels air as it moves. This allows it to create four times the air movement of piston designs, resulting in higher sound pressure levels (SPLs) and lower distortion.

HPS Waveguide
The HPS (High-frequency Propagation System) waveguide was initially designed at ADAM Audio for the S-ART tweeter of the S Series range with the aid of the latest computer modeling techniques. It hones the dispersion of the speakers to an even, uniform consistency, broad in the horizontal axis but tightly focused in the vertical plane. This minimizes potentially distracting reflections from the horizontal surfaces of significant studio furniture (for example mixing consoles), ensures that imaging remains constant, and creates a large, well-controlled and stable ‘sweet spot’, even at high output levels.

Main features:

• Vertical 2-way system with 1 x 7" polypropylene woofer and U-ART tweeter
• U-ART accelerated-ribbon tweeter with precision HPS waveguide
• Large rear-firing bass reflex port
• Highly efficient 70W Class D bi-amplification
• Linear frequency response of 39Hz–25kHz
• Maximum peak sound pressure per pair at 1m ≥ 110dB
• Analog XLR and RCA inputs
• 2-year warranty; optional extension to 3 years with product registration
• Sold individually


Tech Specs:

• Powered: Yes
• Power Configuration: Bi-amped
• Quantity: Single
• LF Driver Size: 7" woofer
• LF Driver Type: Polypropylene
• HF Driver Size: 1.9" U-ART tweeter
• LF Driver Power Amp: 50W
• HF Driver Power Amp: 20W
• Frequency Response: 39Hz-25kHz
• Crossover Frequency: 2600Hz
• Maximum Peak SPL: ≥110dB SPL @ 1m
• Input Types: 1 x XLR, 1 x RCA
• Enclosure Type: Rear ported

• Dimensions (HxWxD): 347 x 210 x 293 mm
• Weight: 7.1 kg
• Warranty: 5-year warranty
