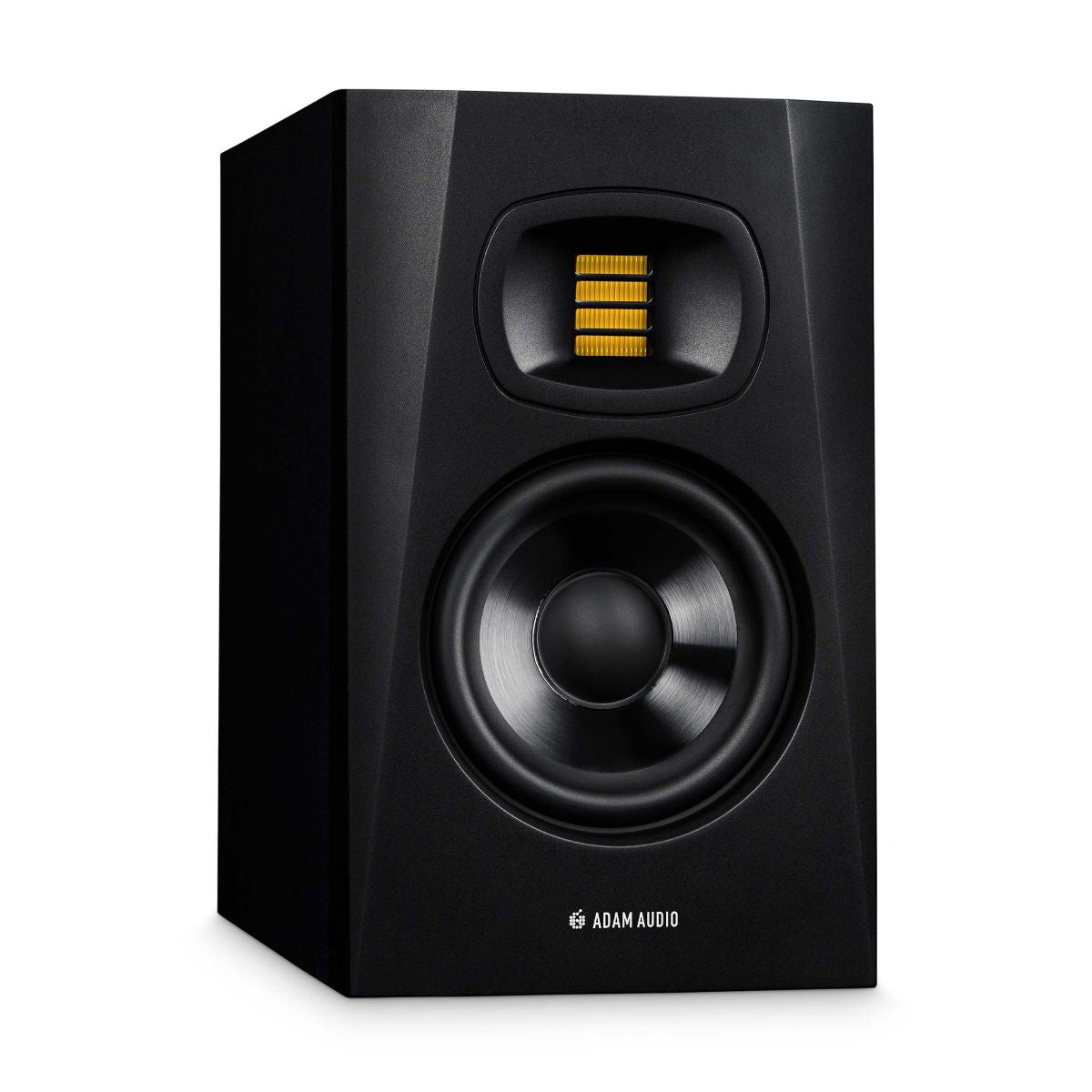

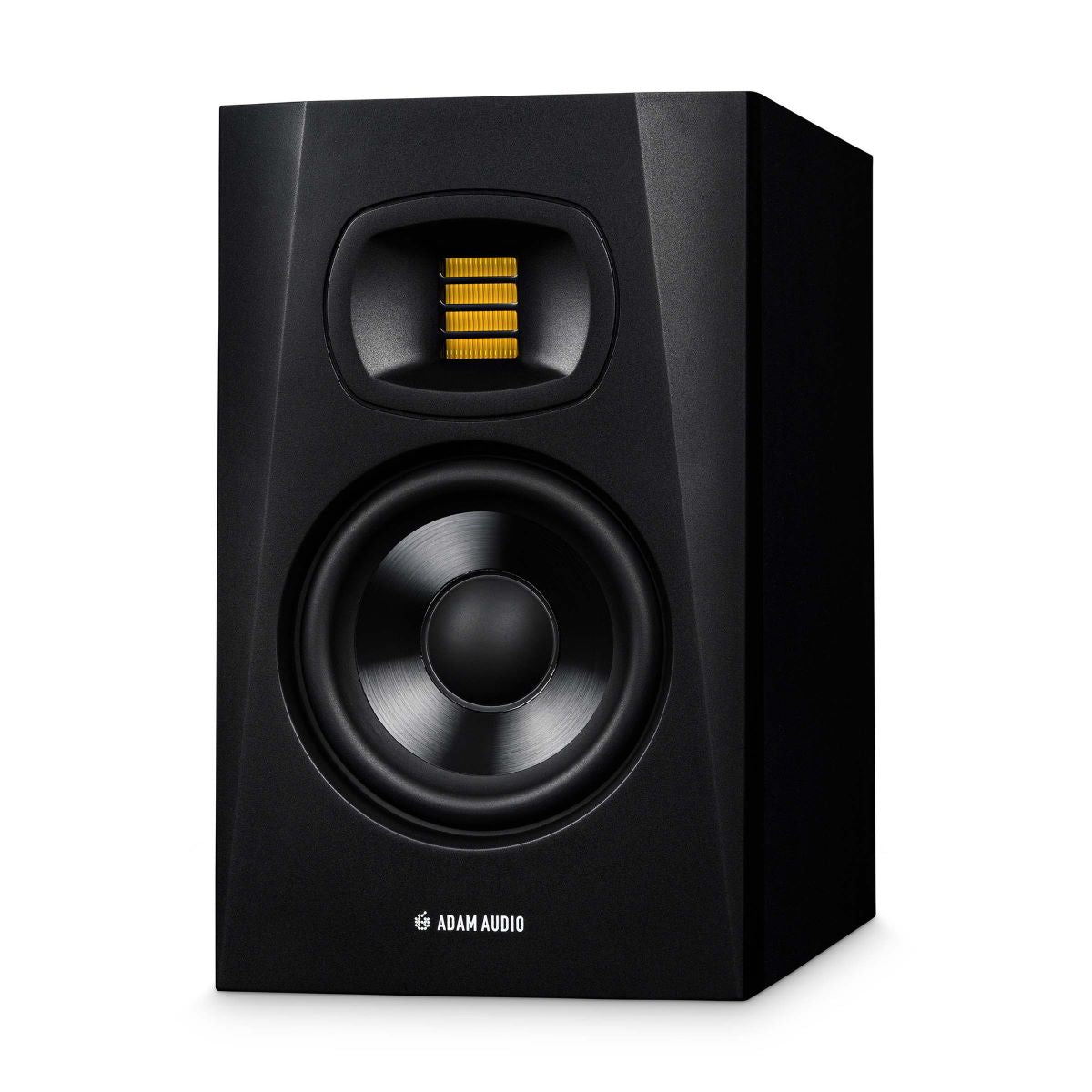

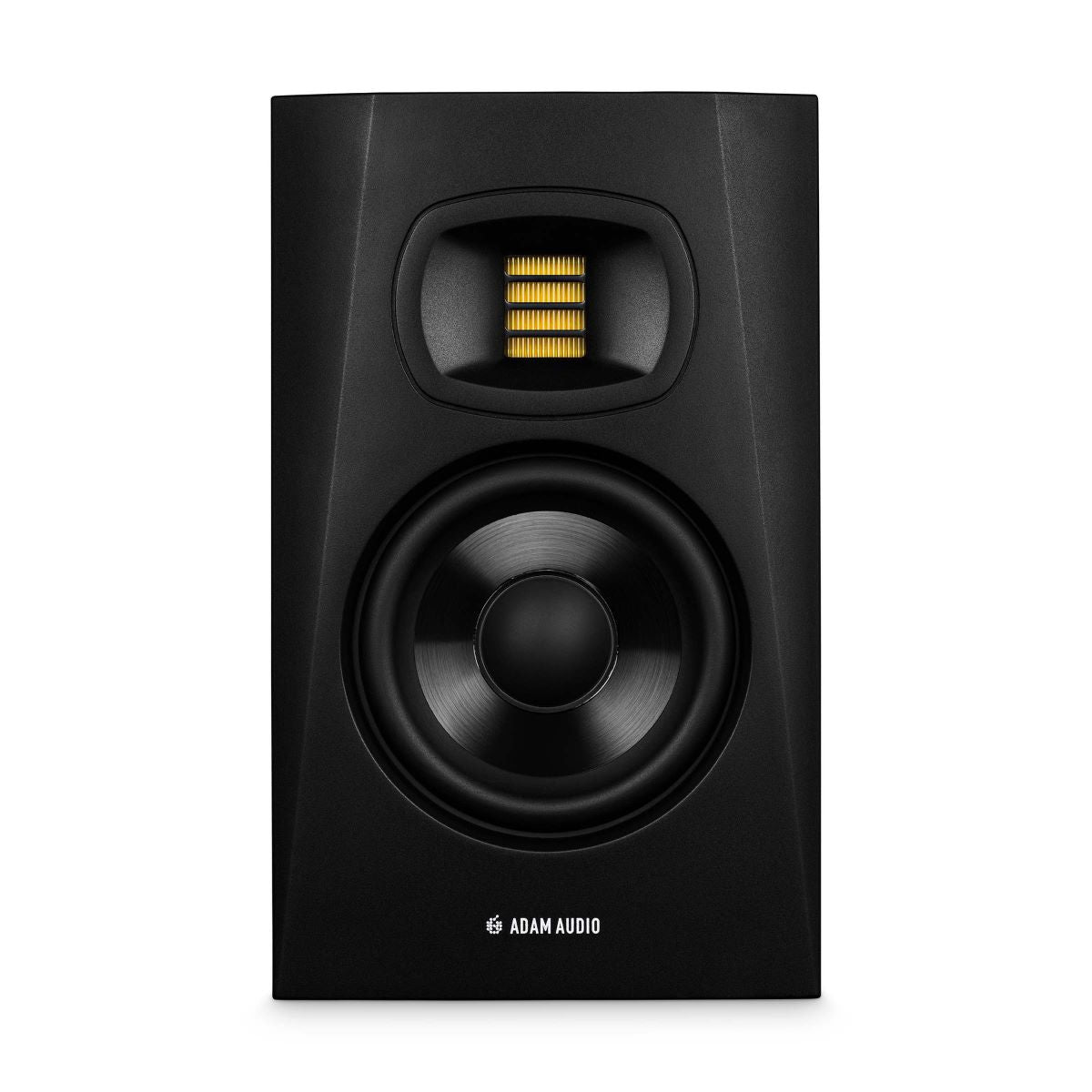

ADAM Audio T5V T Series 5" Powered Studio Monitor (Single)

Best-In-Class Sound Performance

The ADAM Audio T5V delivers professional-quality audio at an affordable price, making it ideal for home studios. Despite its compact size, it offers impressive sound with clarity and a wide sweet spot, reaching frequencies up to 25 kHz. Powered by two D-Class amplifiers, it drives a 5" subwoofer at 50 W, producing up to 106 dB SPL for rich low-frequency response. The T5V boasts a better cost/performance ratio than the T7V, and for deeper bass, it can be paired with the ADAM Audio T10S subwoofer. Overall, the T5V is a fantastic choice for both beginners and professionals. It is known for its clarity and controlled bass at a great price.

U-ART High Frequency Driver
The U-ART 1.9” accelerated ribbon tweeter, used in the T Series, is made from advanced polyimide film and delivers a high-frequency response up to 25 kHz—exceptional for its price range. This design is perfect for high-resolution recording and mixing on a budget. Unlike traditional dome or cone tweeters that use piston action, the U-ART tweeter employs a pleated ribbon that pulls in and expels air as it moves. This allows it to create four times the air movement of piston designs, resulting in higher sound pressure levels (SPLs) and lower distortion.

HPS Waveguide
The HPS (High-frequency Propagation System) waveguide was initially designed at ADAM Audio for the S-ART tweeter of the S Series range with the aid of the latest computer modeling techniques. It hones the dispersion of the speakers to an even, uniform consistency, broad in the horizontal axis but tightly focused in the vertical plane. This minimizes potentially distracting reflections from the horizontal surfaces of significant studio furniture (for example mixing consoles), ensures that imaging remains constant, and creates a large, well-controlled and stable ‘sweet spot’, even at high output levels.

Main features:

• Vertical 2-way system with 1 x 5" polypropylene woofer and U-ART tweeter
• U-ART accelerated-ribbon tweeter with precision HPS waveguide
• Large rear-firing bass reflex port
• Highly efficient 70W Class D bi-amplification
• Linear frequency response of 45Hz–25kHz
• Maximum peak sound pressure per pair at 1m ≥ 106dB

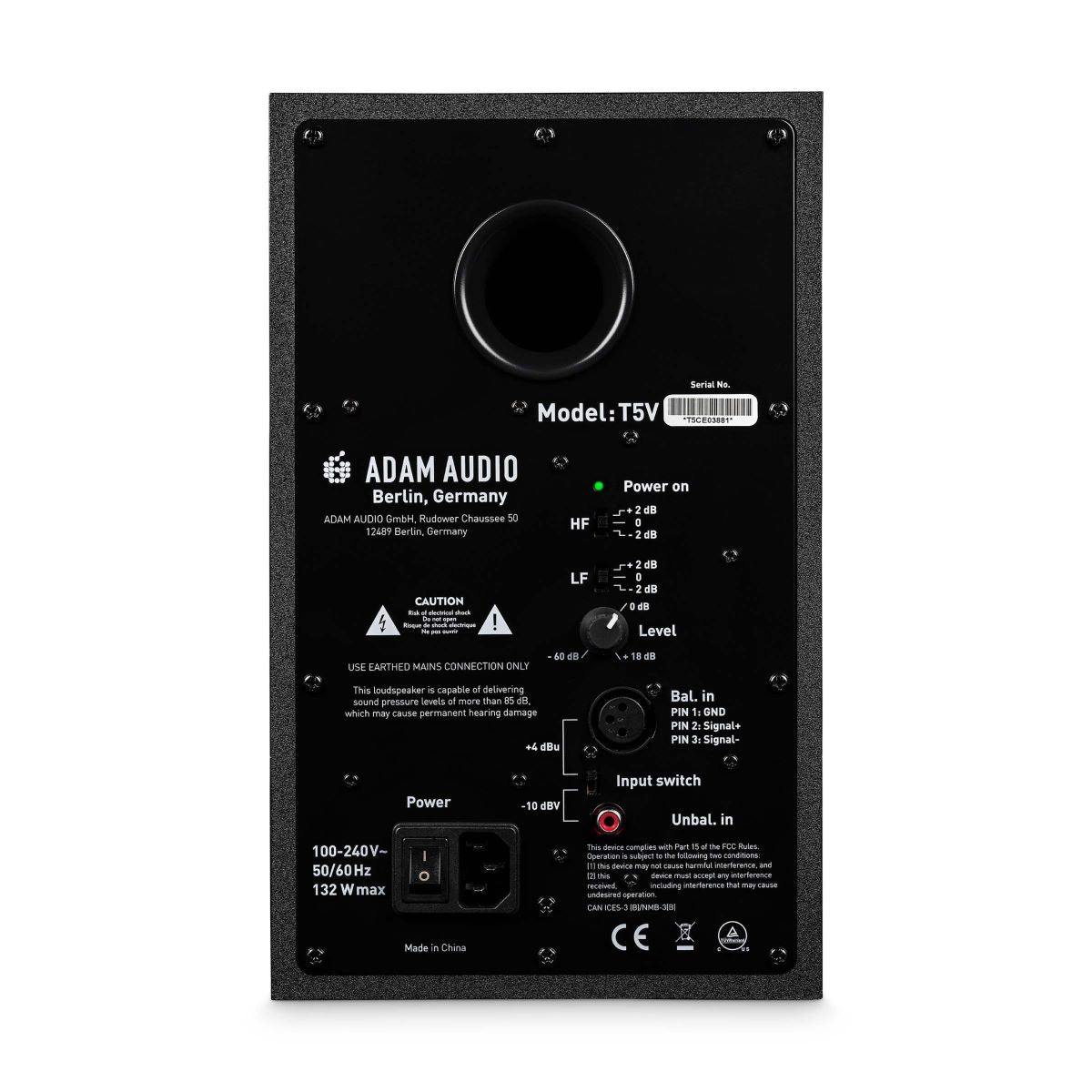

• Analog XLR and RCA inputs

• 2-year warranty; optional extension to 3 years with product registration


Tech Specs:

• Powered: Yes
• Power Configuration: Bi-amped
• Quantity: Single
• LF Driver Size: 5" woofer
• LF Driver Type: Polypropylene
• HF Driver Size: 1.9" U-ART tweeter
• LF Driver Power Amp: 50W
• HF Driver Power Amp: 20W
• Frequency Response: 45Hz-25kHz
• Crossover Frequency: 3000Hz
• Maximum Peak SPL: ≥106dB SPL @ 1m
• Input Types: 1 x XLR, 1 x RCA
• Enclosure Type: Rear ported
• Dimensions (HxWxD): 298 x 179 x 297 mm
• Weight: 5.7 kg
• Warranty: 5-year warranty
