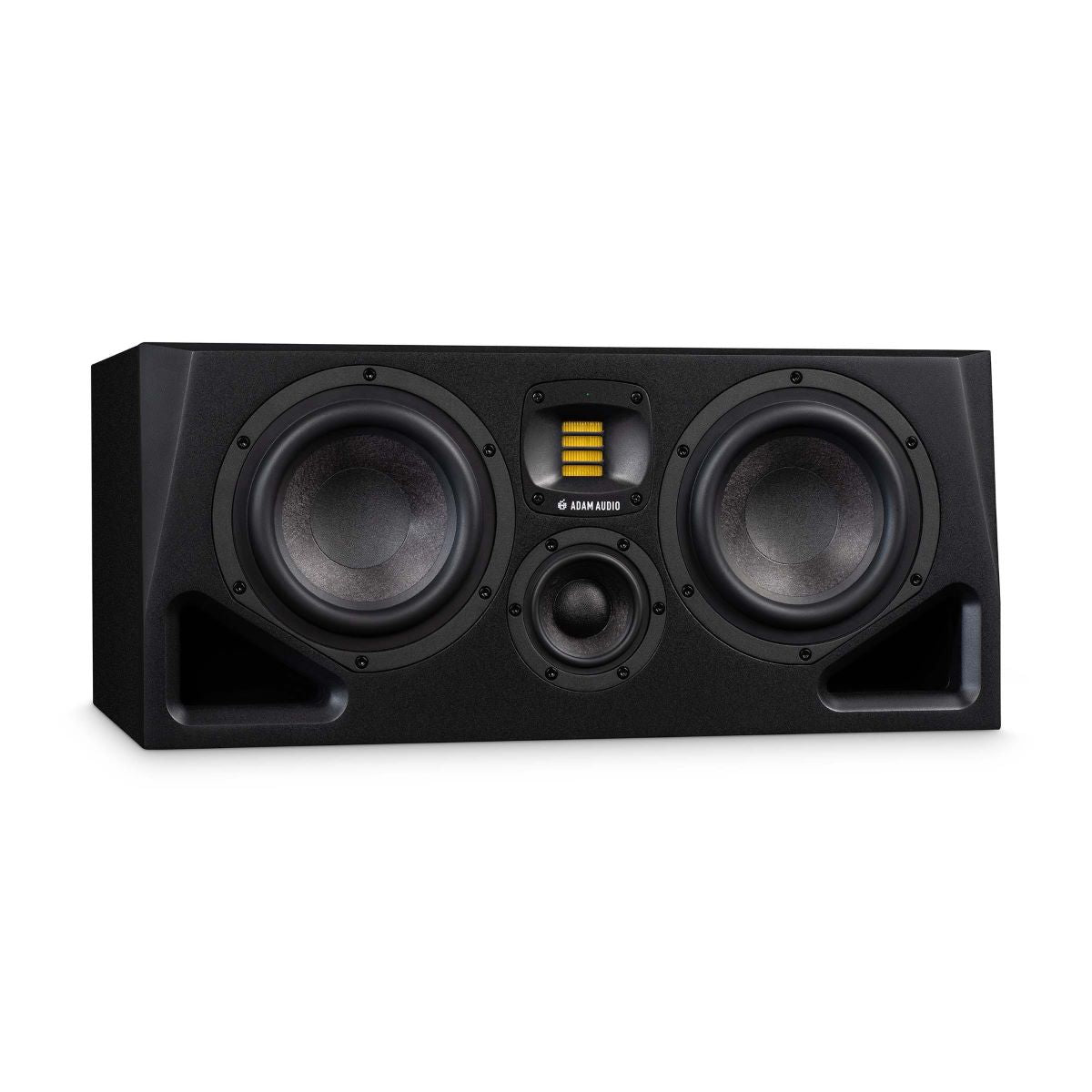

ADAM Audio A77H 3-way Active Nearfield Monitor (Single) - Contact us for availability

Perfect for Engaging 3D Configurations

ADAM Audio A77H incorporates two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, delivering an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

X-ART Delivers Great Sound in any Orientation
Handcrafted in Germany, the X-ART tweeter offers precise transient response and captures fine sonic details. Featured in all A Series speakers, it ensures detailed audio performance. All A Series also includes a rotatable HPS waveguide, allowing the tweeter module to be turned by 90 or 180 degrees, ensuring optimal performance whether the speaker is positioned horizontally or vertically.

Multi-Layer Mineral Woofer
A Series woofers are crafted from a unique blend of baked mineral stone fibres, creating a lightweight and stable material. Each cone's mineral composition and design are tailored to its specific driver. With an innovative magnet system, these woofers deliver high output and low distortion for a clean, low-end sound.

Room Adaptation

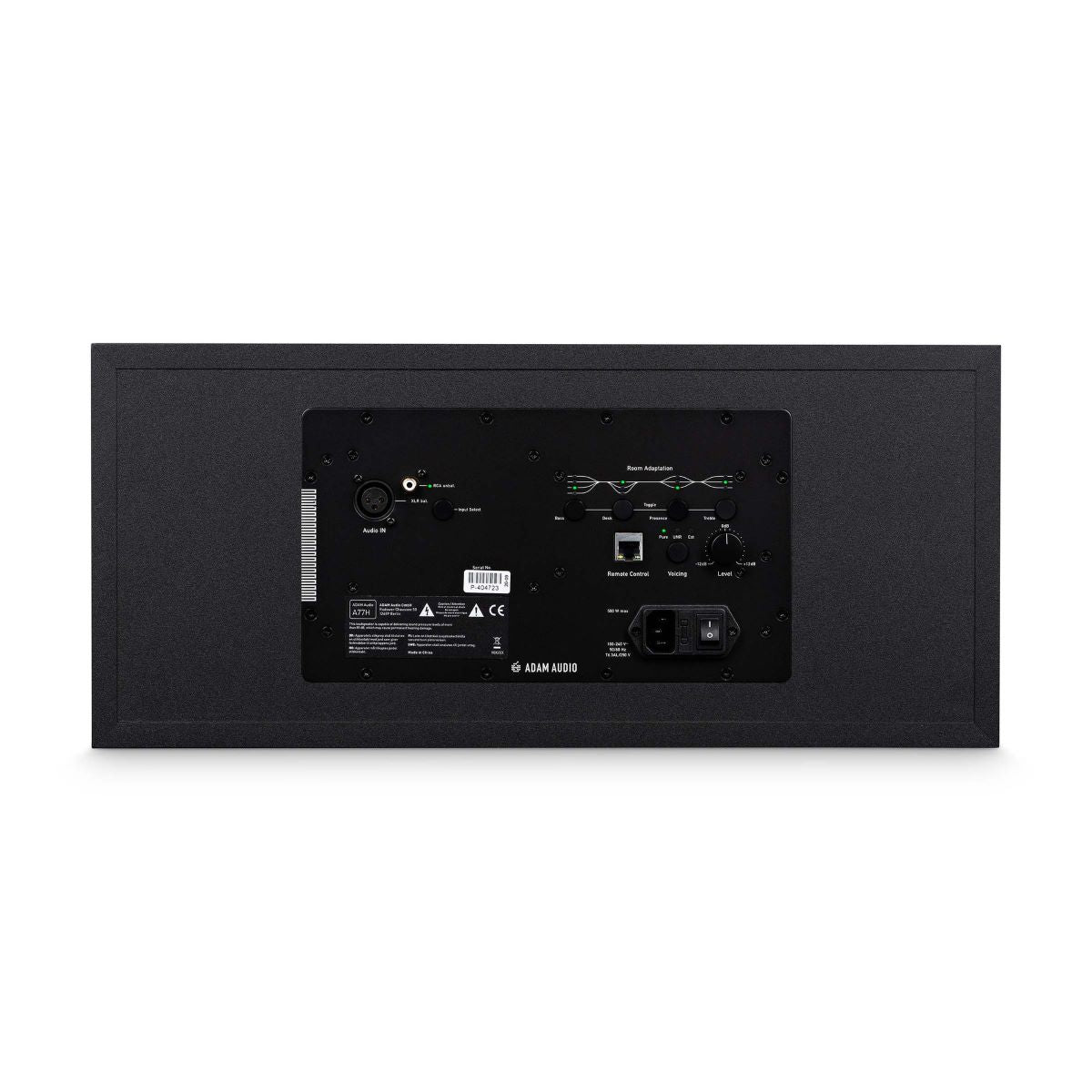

On the back panel of A Series speakers, there are four bands for room adaptation equalization: Bass, Desk, Presence, and Treble. Each band can be adjusted in predefined steps, providing great flexibility to help compensate for common acoustic issues that arise from placing a speaker in a room.

DSP-Based Electronics
The A Series leverages DSP-based electronics for enhanced tuning precision and predictability compared to analogue speakers. With firmware updates available via Ethernet, you can continually integrate the latest features from ADAM Audio, including new filter types and voicings.

Main features:

• 3-way powered studio monitor for midfield monitoring
• Tri-amped design improves efficiency
• Horizontal orientation creates a rich soundstage and solid imaging
• Dual 7-inch MLM woofers offer punchy, impactful low-end
• 3.5-inch MLM midrange driver provides extra clarity
• X-ART tweeter pumps out clear, precise, high-end sound
• DSP-based tuning optimizes the monitor response to fit your room
• Works with Sonorworks SoundID Reference plug-in (sold separately) to refine your sound further
• Rotatable HPS waveguide gives you further sonic customization
• 24-bit AD converter and 96kHz internal sampling rate preserves audio quality
• Includes balanced and unbalanced inputs to integrate with any setup


Tech Specs:

• Powered: Yes
• Power Configuration: Tri-amped
• Quantity: Single
• LF Driver Size:2 x 7" Woofer
• LF Driver Type: Multi-Layer Mineral Fiber
• MF Driver Size: 3.5" Driver
• MF Driver Type: Dome Cone Hybrid, Multi-Layer Mineral Fiber
• HF Driver Type: Rotatable X-ART with HPS Waveguide
• LF Driver Power Amp: 250W
• MF Driver Power Amp: 70W
• HF Driver Power Amp: 20W
• Total Power: 340W
• Frequency Response: 37Hz-41kHz (-3dB), 34Hz-45kHz (-6dB)
• Crossover Frequency: 400Hz, 3.0kHz
• Maximum Peak SPL: 106dB (sine bursts), 118dB (IEC-weighted noise)
• Input Types: 1 x XLR, 1 x RCA
• Other I/O: 1 x RJ45 (remote control)
• Features: Room Correction Controls, Voicing Select
• Software: A Control
• Enclosure Type: Dual Front Ported
• Enclosure Material: Vinyl Wrapped MDF

• Dimensions (HxWxD): 236 x 531 x 350 mm

• Weight: 17.1 kg
• Warranty: 5-year warranty
• Discover Adam Audio A Series [A77H]: https://www.adam-audio.com/en/a-series/a77h/
