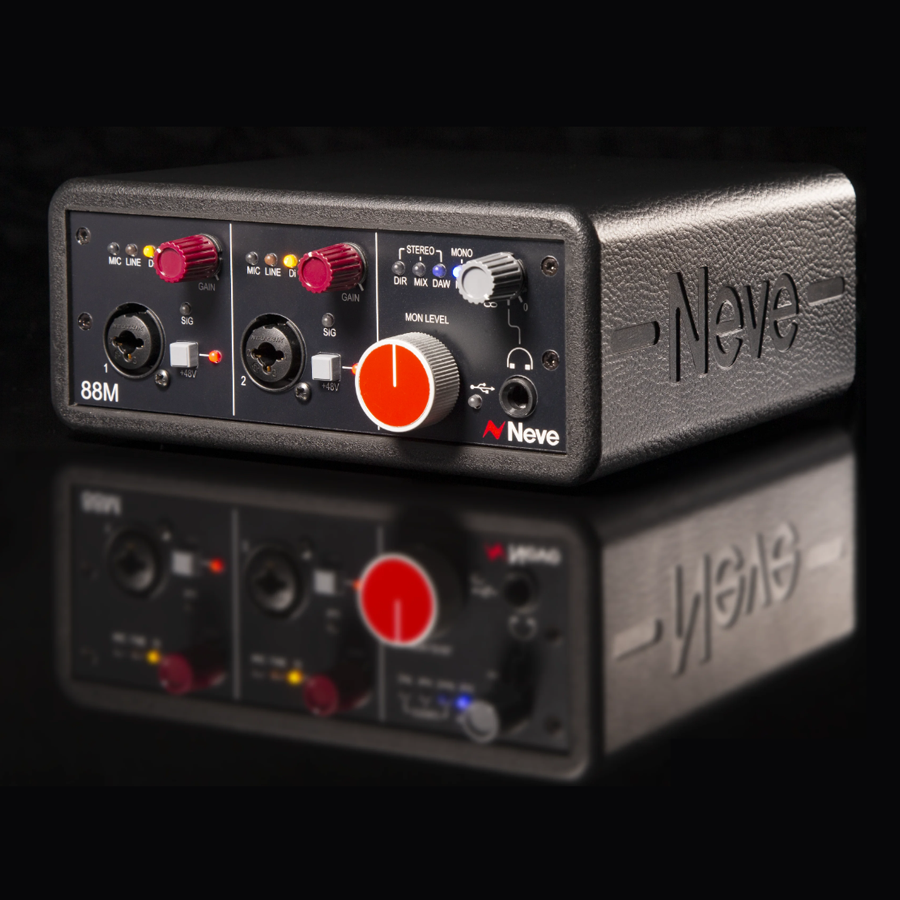

Neve 88M USB Audio Interface released!

Finally, the first USB Neve Audio interface!

2-channel USB 3.0 Audio Interface with 2 Mic/Line/DI Inputs, ADAT Optical, and 2 Sets of Balanced Inserts.

Neve 88M Audio Interface Features:

  • Large-format 88RS console front end
  • Legendary “Neve colour” for all inputs
  • Neve “big iron” — circuit paths balanced with proprietary Marinair transformers
  • Reference-grade AD/DA conversion
  • Neve DI circuits deliver superior instrument audio quality
  • ADAT I/O gives you expandable digital connectivity
  • 2 sets of balanced inserts for expandable analog connectivity
  • Substantial, workhorse design for years of faithful service
  • USB 3.0 connectivity future-proofs your investment
  • Bus/hub powered, perfect for recording on the road
  • Class-compliant (Core Audio/ASIO)
  • Designed and built by Neve engineers in England



General Specification

  • 2x Analogue Preamp Inputs (Mic/Line/DI)
  • 2x Balanced Analogue Monitor TRS Line Outputs
  • 1x Balanced TRS Headphone Output
  • 8x ADAT Digital Inputs & 8x ADAT Digital Outputs via TOSLINK Connection
  • Insert send and return loop
  • USB 3.0 B -Type port for direct connection to Mac or PC
  • Class Compliant – Core Audio/ASIO
  • Headroom: +18dBu @ 1kHz (<0.5% THD+N)
  • Distortion (THD+N): Typically 0.008% @ 1kHz (measured at +18dBu, 10Hz to 80kHz filter)
  • General Noise: <-85dBu (A-wtg)
  • Frequency Response (Mic/Line/DI): +/- 0.1dB 20Hz – 20kHz (+/- 0.5dB 10Hz – 35kHz)
  • Voltage: USB3
  • Current <900mA



Preamp Specification

  • Microphone input impedance (balanced): 1.5k Ohms
  • Microphone dynamic range: >110dB
  • Microphone input gain range: +21dB to 68dB
  • Line input impedance (balanced): 20k Ohms
  • Line input dynamic range: >111dB
  • Line input gain range: -35 – +35dB
  • DI input impedance (balanced): 900k Ohms
  • DI input dynamic range >100dB
  • DI input gain range: +13dB to +60dB



Monitor Output Specification

  • Maximum output level : +18dBu
  • Dynamic range: >113dB



Headphone Output Specification: (150 Ohm load)

  • Maximum output level : +10dBu
  • Frequency Response: 20-20kHz +/- 0.3dB
  • Distortion (THD +N): <0.007% @10dBu 1kHz
  • Noise floor: -96dBA



Dimensions

  • Width: 182mm (7.2 inches)
  • Height: 76mm (3 inches)
  • Depth: 203mm (8 inches)
  • Weight: 1.675Kg (3.7Lbs)
