Bettermaker Stereo Passive Equalizer

Bettermaker Stereo Passive Equalizer

Bettermaker - Vintage sound for today’s hybrid workflows

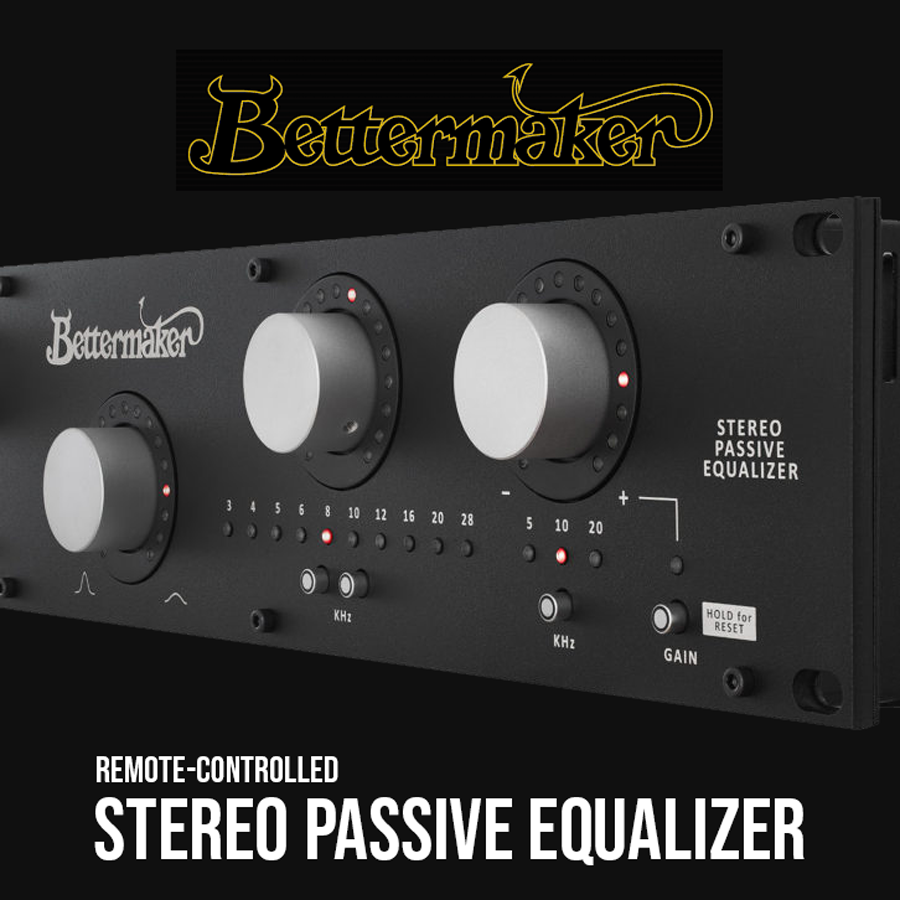

Bettermaker® Stereo Passive Equalizer (SPE) is for those who seek outstanding EQ quality with the convenience of fast and precise recall and automation. SPE offers 100% signal path of legendary Passive filters. All this with mastering grade sound and patented recall with a speed of a native plugin.

Digital Section

The sound of the Stereo Passive Equalizer is of course based on the quality of its analog filters, precisely matched capacitors and inductors. But all the control and user interactions are performed in the digital domain. This allows us to incorporate options and possibilities not found in any standard analog equalizers:

- Instant reset of all parameters

- Rapid, precise and repeatable adjustments

- Precisely linked stereo operation with the ease of a single control

- DAW automation and recall of all available parameters

The digital section of the Stereo passive Equalizer is based around high speed, 32-bit micro-controller, with dedicated firmware programmed into its memory (with the possibility of updating the firmware via USB connection). It controls the parameters af analog filters, watches over the user interface, USB connectivity and other SPE functions.

Main Features:

  • Frequency response: 7Hz–30kHz (-0.5dB, ISO-R40 sweep)
  • Level reference: +/-0.2dB (20Hz–20kHz, ISO-R40 sweep)
  • Dynamic range: 101dB (20kHz bandwidth, +24dBu)
  • THD+N ratio: 0.009% (20kHz bandwidth, +4dBu, 1kHz)
  • THD ratio: 0.0025% (+4dBu, 1kHz)
  • CMRR: >70dB (20Hz–20kHz, IEC 60268-3)
  • Crosstalk: >88dB (20Hz–20kHz, +18dBu, channel to channel)
  • Max LF boost: 15dB (set to 100Hz)
  • Max LF cut: 16dB (set to 100Hz)
  • Max HF boost: 18dB (all frequencies)
  • Low-boost/cut frequencies: 20, 30, 60, and 100Hz
  • High-boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28kHz
  • High-cut frequencies: 5, 10, and 20kHz
  • Control resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth); 34 steps (Hi Cut)
  • Output gain: +/-8dB (0.1dB resolution)
  • Sturdy 2U rackmount chassis (depth: 140mm)
  • USB Type B port for computer connection
  • External power supply (included) eliminates interaction with audio circuits

    Tech Specs

    • Number of Channels:2
    • Number of Bands:2
    • Inputs:2 x XLR
    • Outputs:2 x XLR
    • USB:1 x Type B
    • Frequency Response:7Hz-30kHz
    • Rack Spaces:2U
    • Power Source:100-240V AC power adapter (included)
