New Advanced Compact Monitor from Neumann Announced

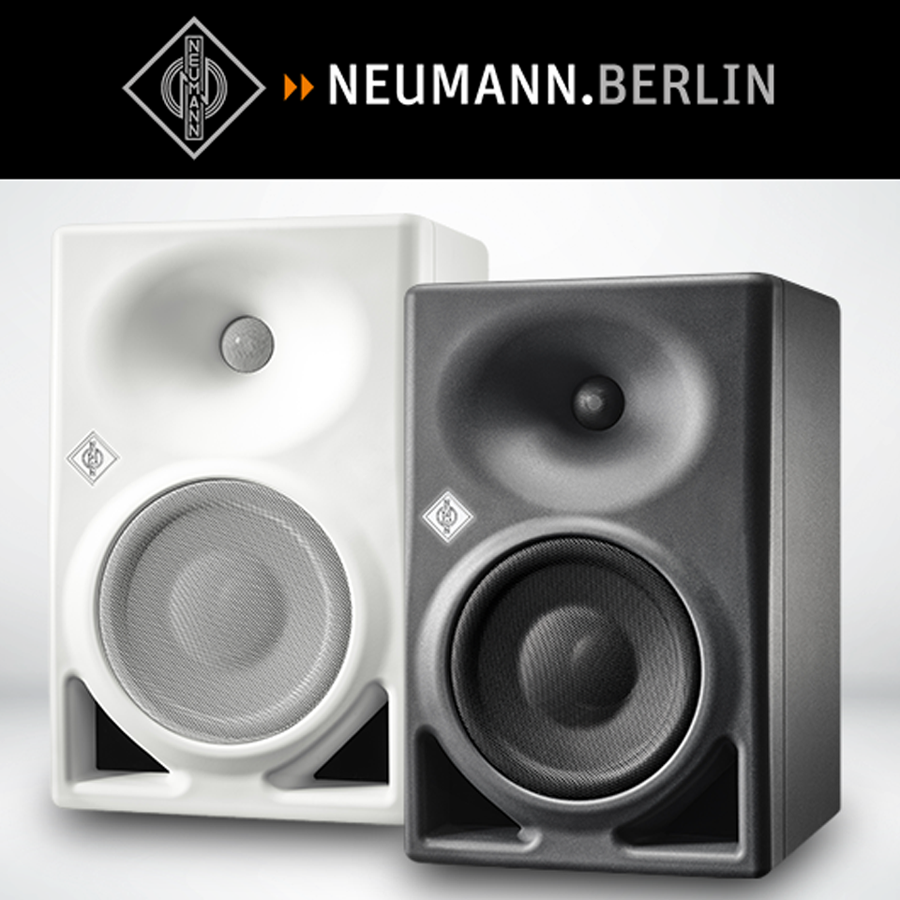

Neumann KH 150 6.5-inch 2-way Powered Studio Monitor

The Neumann KH 150 is a bi-amplified studio monitor with reference-grade performance that belies its compact size. This makes it ideal for both nearfield and midfield deployment in small-to-mid-sized control rooms. Neumann’s new 6.5-inch woofer, the result of over three years of intensive research and development, is integrated into a meticulously engineered 20-liter bass reflex cabinet, allowing this state-of-the-art monitor to achieve impressively deep and tight bass response down to 39Hz and a maximum SPL of 118dB; meanwhile, a specially designed 1-inch tweeter serves up crystalline clarity extending up to 21kHz. Powered, respectively, by 145 watts and 100 watts of energy-efficient Class D bi-amplification and assisted by Neumann’s Mathematically Modeled Dispersion (MMD) waveguide, these drivers deliver unerring accuracy over a broad sweet spot, while minimizing desk reflections.

The KH 150 offers both analogue and S/PDIF digital connectivity, with the rear panel hosting an XLR socket for the former, and an pair of RCA connectors providing both an input and output for the latter. A KH 150 AES67 version will also be available, equipped with redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA. The KH 150 AES67 is also compatible with Dante-generated AES67 network streams.

Neumann KH 150 AES67 Active Studio Monitor Features:

• Deep, tight low end; smooth, extended highs
• Razor-sharp stereo soundstaging
• Linear frequency response 39Hz–21kHz (±3dB)
• Efficient Class D bi-amplification: 145W (LF), 100W (HF); consumes only 17W at idle
• High-precision custom drivers
• Mathematically Modeled Dispersion (MMD) waveguide
• DSP engine for optimized performance and room adaptive calibration via optional MA 1
• Linear phase response, 105Hz–16kHz (±45°), with latency <2.6ms
• Advanced crossover and protection limiters
• Engineered to extremely tight (±0.8dB) tolerances
• Robust maximum SPL rating of 118dB at 1 meter
• Meticulously engineered 20-liter bass reflex cabinet
• Analog and S/PDIF connectivity
• Integrated redundant AES67 Audio over IP network ports
• May be combined with other KH series speakers in immersive/surround configurations

Neumann KH 150 Active Studio Monitor Features:

• Deep, tight low end; smooth, extended highs
• Razor-sharp stereo soundstaging
• Linear frequency response 39Hz–21kHz (±3dB)
• Efficient Class D bi-amplification: 145W (LF), 100W (HF); consumes only 17W at idle
• High-precision custom drivers
• Mathematically Modeled Dispersion (MMD) waveguide
• DSP engine for optimized performance and room adaptive calibration via optional MA 1
• Linear phase response, 105Hz–16kHz (±45°), with latency <2.6ms
• Advanced crossover and protection limiters
• Engineered to extremely tight (±0.8dB) tolerances
• Robust maximum SPL rating of 118dB at 1 meter
• Meticulously engineered 20-liter bass reflex cabinet
• Analog and S/PDIF connectivity (optional: AES67)
• May be combined with other KH series speakers in immersive/surround configurations
