Solid State Logic Origin EVO 16 Analogue Recording Console - Price on Request

The 4K Legacy, Evolved for the Modern Hybrid Studio.

The Solid State Logic ORIGIN EVO 16 is a professional 16-channel in-line analogue recording console that reignites the iconic 4000 Series lineage for the contemporary engineer. Designed for mixing engineers and high-end production houses, this console bridges the gap between legendary analogue sonics and modern DAW-driven requirements. Whether you are tracking a full band or mixing a complex hybrid session, the ORIGIN EVO 16 provides the high-headroom, "unmistakable SSL sound," and ergonomic freedom required to produce world-class records.

PureDrive™ Sonic Versatility
The ORIGIN EVO features the innovative PureDrive™ mic preamps, offering a complete sonic palette from high-resolution, ultra-clean capture to rich, driven tones. By engaging the DRIVE circuit - an evolution of SSL’s VHD technology - engineers can introduce warm, harmonically rich character when the track demands it. This discrete transistor design ensures you have the choice between pristine transparency and characterful saturation, providing two distinct personalities in a single preamp.

Iconic E Series Processing
Every channel strip is equipped with the most sought-after EQ design in history: the E Series 242 ‘Black Knob’ four-band parametric EQ, originally developed in collaboration with Sir George Martin. Complementing this is the authentic E Series dynamics section, featuring punchy, aggressive compression and ultra-fast gating recreated with original-spec Class-A VCA chips. This combination delivers the classic ‘80s SSL sound, providing the punch and "glue" that has defined hit records for decades.

Masterful Hybrid Workflow

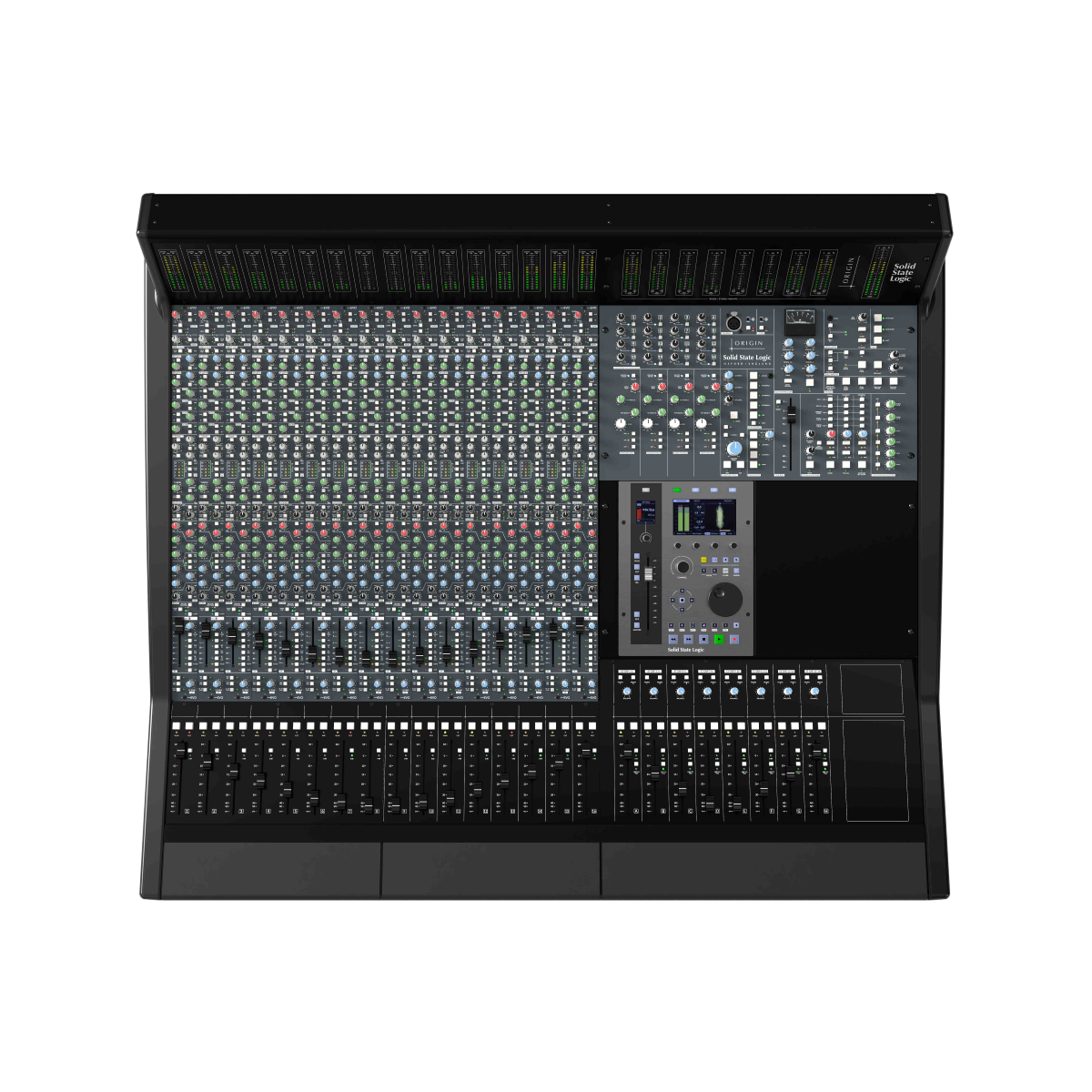

Engineered for modern ergonomics, the ORIGIN EVO 16 features a 19-inch modular centre section that adapts to your specific priorities. You can seamlessly integrate SSL UF8 or UF1 DAW controllers directly into the console, keeping your digital workstation control and analogue outboard processors exactly where you need them: in the sweet spot. With features like 0 dB fader bypass for printing stems and advanced electronic routing, complex session management becomes intuitive and highly reliable.

Main features:

• 16-ch. analogue recording and mixing console
• 16 mono in-line channels
• SuperAnalogue preamps with preset Drive/4K switch
• In-line architecture with 2 paths per channel
• 60mm small fader and 100mm large fader with balanced inputs in each path, and independent pan, solo, cut, and 0dB switch to set unity gain
• Channel inserts: 2 (1 per path)
• 8 stereo sub groups
• E-Series 4-band parametric EQ
• Sweepable highpass and lowpass filters
• E-Series channel dynamics
• SSL’s iconic stereo VCA bus compressor with sidechain HPF
• 1 stereo mix bus; 8 track buses
• Comprehensive master control section
• Monitor outputs: main (12 wide) + 1 alternate + headphone
• Aux sends: 2 stereo, 4 mono
• 3 foldback outputs
• Auto Sleep mode
• Designed and crafted in England

Tech Specs:

• I/O & Routing: 16-Channel In-Line Design; Up to 84 inputs at mixdown; 16 Track Buses; 4 Mono Buses; 2 Stereo Cues
• Preamplification: PureDrive™ Mic Pres with +70 dB clean gain; Discrete transistor design; Variable Drive circuit

• Equalisation: Iconic ‘242’ E Series Black Knob 4-band parametric EQ; HF/LF bell/shelf switches; Dedicated HMF/LMF Q controls

• Dynamics: E Series Compressor/Limiter & Expander/Gate; Authentic Class-A VCA chip; True RMS sidechain detector; Sidechain channel link

• Filtering: 18dB/octave High-Pass Filter; 12dB/octave Low-Pass Filter; Path routing via SF/LF; Filter to dynamics sidechain

• Master Section: Enhanced SSL Bus Compressor with new ratios; 100mm main mix fader; 4 Stereo Returns; Independent Monitor Alt 1 & 2 trims

• Workflow Tools: 0 dB fader bypass; Direct channel outputs; Balanced insert points on every path; Movable 3U centre meter panel

• Power & Efficiency: Auto Sleep mode for power efficiency; Global power supply (100V to 240V AC)

• Discover Solid State Logic's Analogue Recording Console [EVO 16]: https://solidstatelogic.com/products/origin-evo
