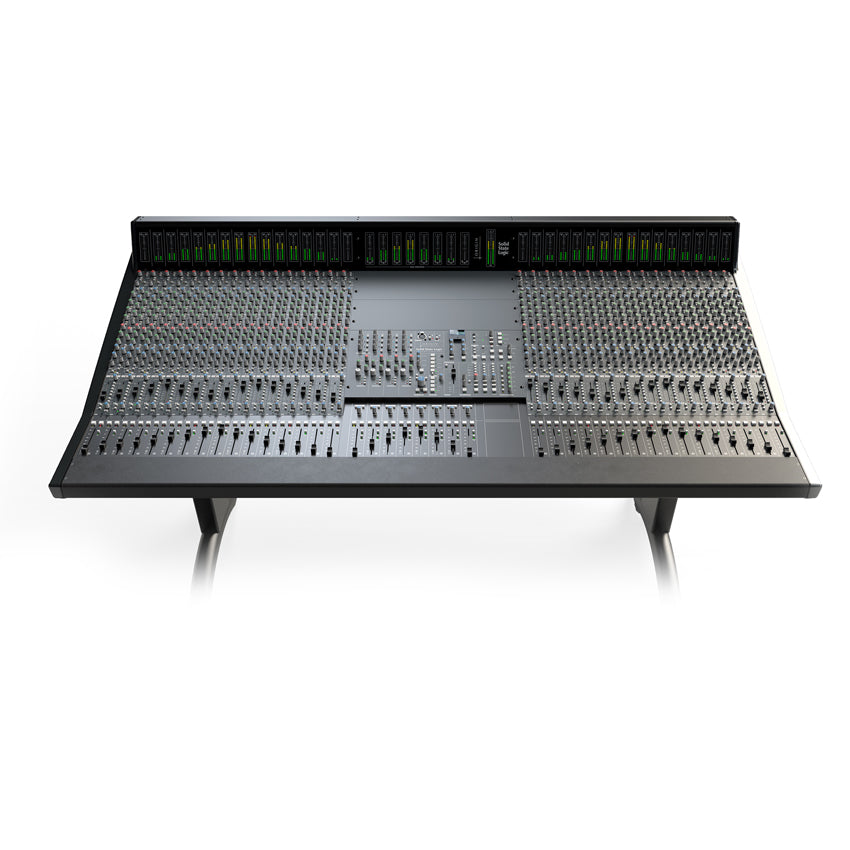

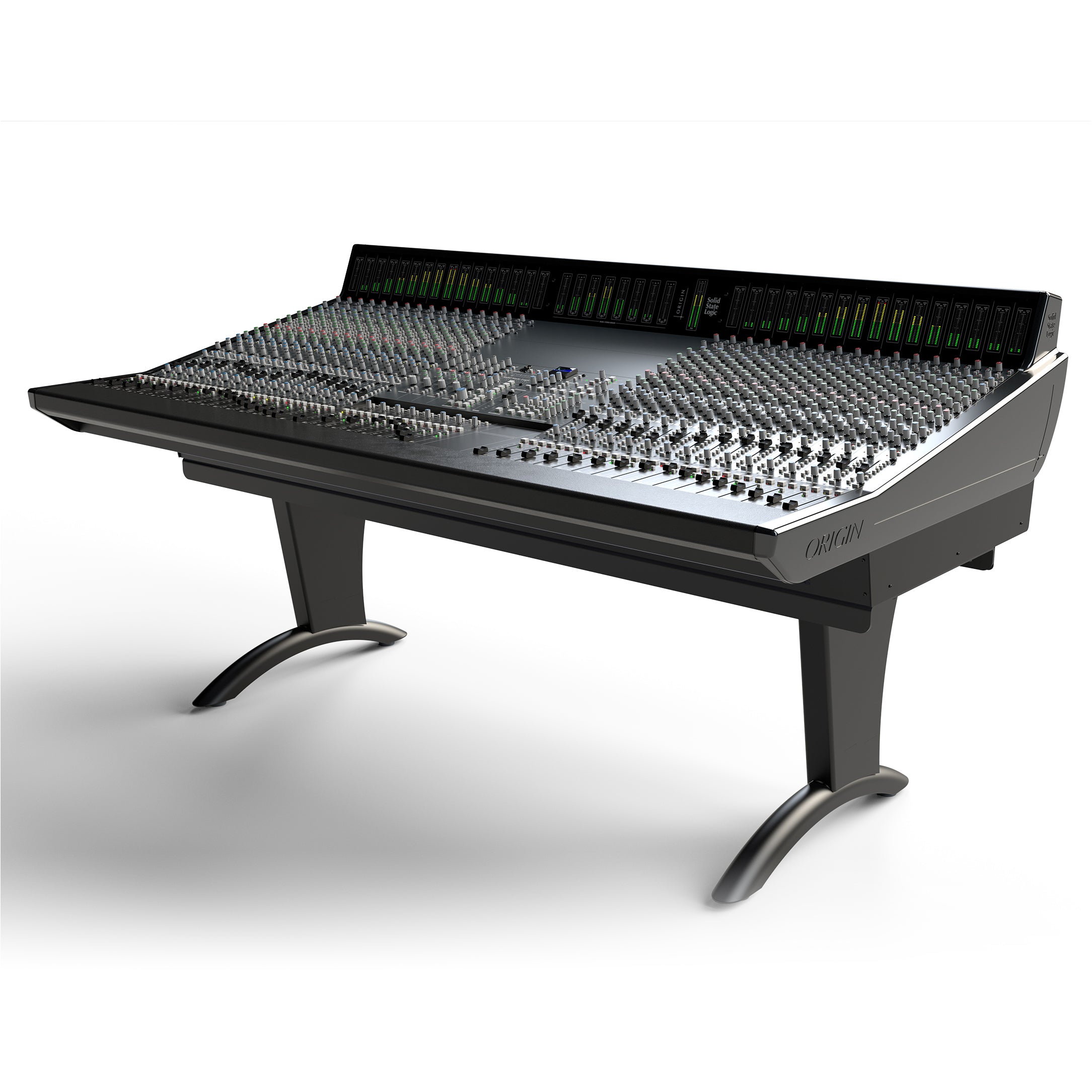

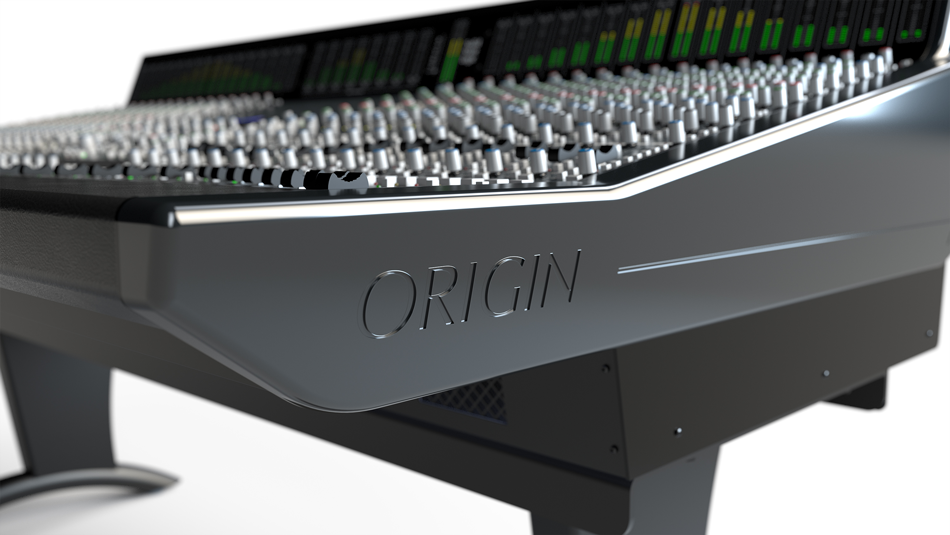

Solid State Logic ORIGIN Analog Studio Console - POR (Price on Request)

Solid State Logic ORIGIN Analog Studio Console - POR (Price on Request)

Next generation analogue studio console 32-Channel Studio Console with PureDrive Preamps, E-Series EQ, and Stereo Bus Compressor, The legendary SSL consoles of the 70s and...

Vendor :Solid State Logic

Type :Analog Mixers

R0.00

Add to wishlist

Next generation analogue studio console

32-Channel Studio Console with PureDrive Preamps, E-Series EQ, and Stereo Bus Compressor,

The legendary SSL consoles of the 70s and 80s helped define studio production. ORIGIN takes these principles and combines them with a modern feature-set that bridges the gap between digital production and analogue console workflow.

A purely analogue inline design, with 16 buses, E-Series EQ and classic Bus Compressor, ORIGIN breathes new life into a design classic across the whole console. The new PureDrive™ mic pre inherits the clarity and purity of previous SSL Mic Pre designs, switching character to a warm, harmonically-rich and driven tone that varies with mic pre gain.

The new mix bus and mix amp architecture delivers an amazingly-low noise floor along with huge headroom. The result is a mix bus that retains the classic SSL sound, whilst bringing the breadth and space to mixes that engineers and producers love from analogue summing.

Balanced insert points per channel path (both large and small fader), dedicated channel direct outputs, stem-ready 0dB fader bypass switches, plus a new configurable centre section, make ORIGIN an ideal way of adding console workflow to a modern production studio.

The adjustable centre section features 12U of rack space, allowing the modular 6U master tile to be repositioned to create space for software controllers, a computer keyboard or additional outboard processing. The meter bridge can also be lowered into the centre section, enabling a screen to be positioned so all your production software can be viewed just where you need it.

As the latest in a long heritage of SSL studio mixing consoles, ORIGIN has traditional analogue studio workflow at its heart whilst providing the perfect partner for a modern DAW-driven ‘hybrid’ production studio.

Its classic design looks back to the origin of in-line consoles for signal flow inspiration, incorporating cutting-edge analogue developments to deliver a unique sonic signature that’s still unmistakably SSL.



ORIGIN is more than just the culmination of four decades of technical innovation. Because of our deep knowledge of workflow and studio integration, we also understand that a console has to provide the immediacy and well-executed ergonomics that will inspire and engage a modern studio environment. We believe ORIGIN does this and more; leading the way with a fresh look at how an analogue console compliments the latest digital tools and production techniques.

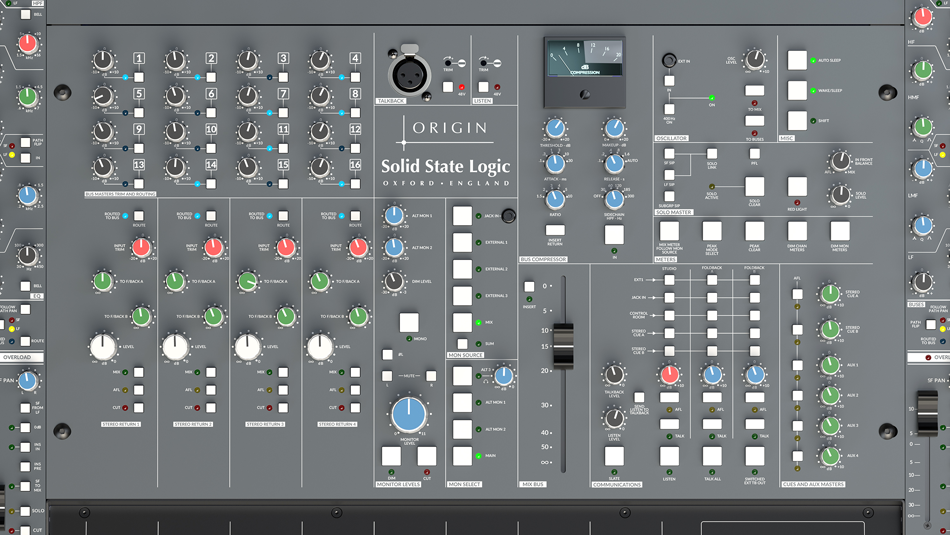

ORIGIN Centre Section

With the evolution of more sophisticated digital audio workstations and new hybrid approaches to session workflow, ORIGIN takes a fresh look at what an analogue console provides to complement these sophisticated digital tools.



While ORIGIN has a familiar surface, its design makes it adaptable for many different production scenarios. The 19” rack based ‘modular’ centre section allows the console to adapt to different control priorities and adds space for custom outboard processing. For example, the addition of a central 500 series rack provides a way to accommodate flexible analogue processing from a number of manufacturers, the ability to move the centre section allows for workstation controllers to be centrally located, even the 3U centre meter panel can be moved to allow a workstation monitor to move closer to the engineer without obscuring the main meters.

Classic SSL Innovation

E-Series '242' EQ
The E-Series '242' EQ was probably the most popular EQ from the SL 4000 series console range, and it's back for ORIGIN, which uses this iconic SSL design for it's channel EQ.

ORIGIN features the acclaimed E-Series four-band parametric EQ on each of its 32-channels, with variable Cut/Boost per band, HF and LF Bell/Shelf switches, independent sweepable HPF on every channel and unmistakable '242' style growl and deep low end.

PureDrive™
ORIGIN features a completely new microphone pre-amplifier design that inherits the clarity and purity of previous SSL mic pre's, with the added flexibility of switching character to a warm, harmonically-rich and driven tone that varies with gain. The ideal solution to 'perfect' digital system and hybrid workflow.

PureDrive™ is a new discrete transistor mic-pre based around modern FET components. The result is an ultra-clean, ultra-low noise pre amp, that is fast and offers stunning resolution when in 'Pure' mode. Hit the switch and the 'Drive' circuit is engaged, adding gain dependent non-linear harmonic saturation.

Main Features:

  • 32-channel analog recording and mixing console
  • master control section and 16+2 buses
  • Newly designed SSL PureDrive mic/line preamps
  • Dial in a range of transparent to harmonically saturated tones and
  • Included 48V phantom power and polarity invert
  • SSL E-Series 4-band parametric EQ with variable cut/boost
  • High- and lowpass filters
  • Direct output, four auxiliary sends, and two stereo cue feeds on each channel
  • 60mm small fader and 100mm large fader with balanced inputs in each path
  • Independent pan, solo, cut, and 0dB switch to set unity gain
  • Master control section streamlines operations with talkback
  • Listen mic, bus masters trim and routing, four stereo returns,
  • Independent trims for two monitors,
  • DIM, MONO, Left/Right MUTES, and polarity switch
  • Includes SSL’s iconic stereo VCA bus compressor with sidechain and highpass filter
  • Adjustable 6U master tile and additional 6U of space in the center section to install a keyboard, video monitor, software controller, or your favorite outboard hardware
  • Auto Sleep mode reduces power consumption by switching to standby mode after long periods of inactivity
  •

    More info - ORIGIN Brochure
