PMC10 XBD Active Reference Monitor System - New

Unrivaled Scale, Uncompromising Precision

The PMC (Professional Monitor Company) 10-XBD is the definitive monitoring solution for elite large-format music tracking, film post-production, and immersive audio suites. By combining the flagship PMC10 three-way monitor with a dedicated XBD bass cabinet, this system delivers a staggering 3.6kW of power per channel with extended low-frequency headroom that remains crystal clear even at extreme volumes. Engineered for the most demanding mixing, mastering, and broadcast applications, the PMC10-XBD provides the massive physical scale and surgical accuracy required to push the boundaries of modern production.

Explosive Dynamic Headroom and LF Authority
The XBD configuration doubles the low-frequency radiating area by adding a second high-excursion 10-inch Radial™ driver, granting the system an additional 3dB of headroom. Driven by the massive master36 and power20 amplification sets, each side delivers 3600W of transparent Class-D power. This translates into effortless performance during high-SPL sessions, ensuring that cinematic-scale low-end impact never sacrifices the transient control or timing essential for critical decision-making.

Advanced ATL™ and LaminairX™ Aerodynamics
At the heart of the PMC 10-XBD is the latest evolution of Advanced Transmission Line (ATL™) technology, which utilizes internal energy to provide deeper, more natural bass than traditional ported designs. To eliminate the "chuffing" and turbulence often found in high-output speakers, PMC integrates LaminairX™ vents. These aerodynamically designed vents ensure smooth, fast airflow, resulting in an exceptionally low noise floor and ultra-precise bass definition that allows engineers to hear every nuance in the sub-frequencies.

Intelligent Network Control via SoundAlign2™
System calibration is handled by the sophisticated SoundAlign2™ DSP interface, accessible via any standard web browser over a LAN connection. This allows for perfect time and phase alignment between the main monitor and the XBD module, while providing comprehensive room-alignment EQ to correct for challenging acoustic environments. Whether installed in a soffit or as a freestanding stack, the DSP ensures the system is perfectly optimized for your specific workspace.

Main features:

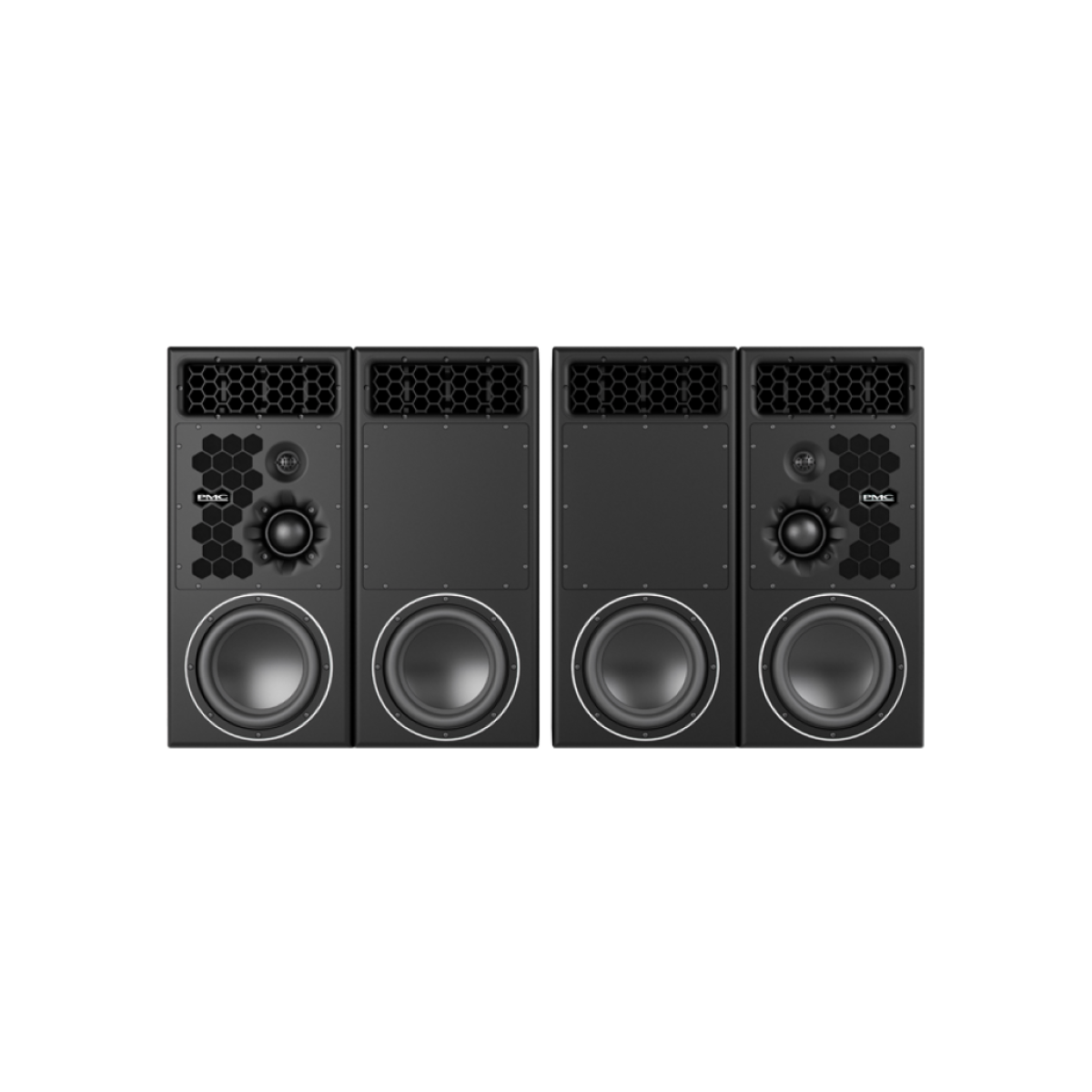

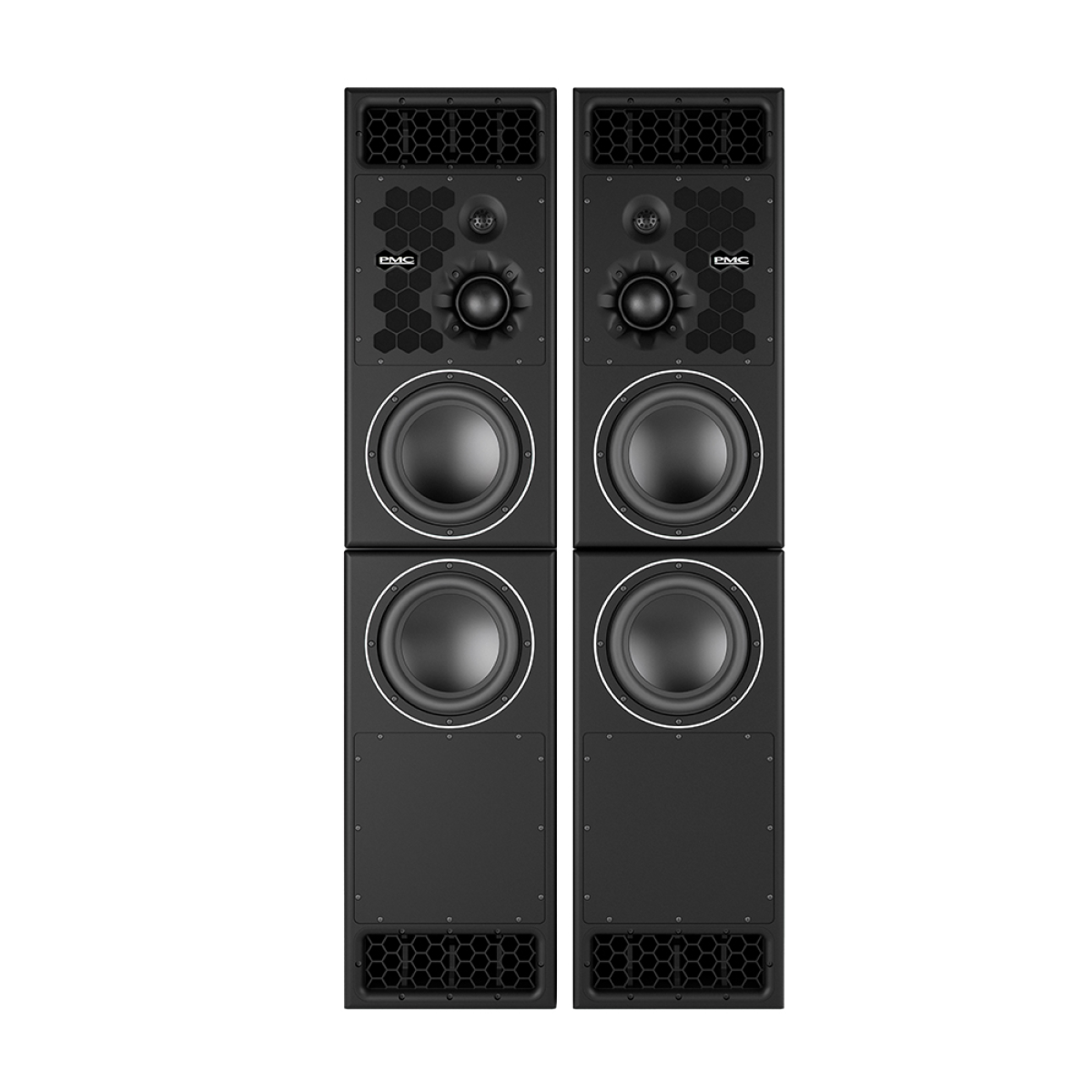

• Dual-cabinet system comprising a three-way PMC10 and a dedicated XBD bass module
• Two 10-inch (250mm) high-excursion Radial™ bass drivers per channel
• Total system power of 3600W per channel via ultra-transparent Class-D amplification
• Advanced ATL™ bass loading with LaminairX™ aerodynamic venting
• Hand-built PMC75v3 75mm soft-dome midrange driver for legendary vocal transparency
• 34mm soft-dome tweeter with n-compass™ waveguide for ultra-wide dispersion

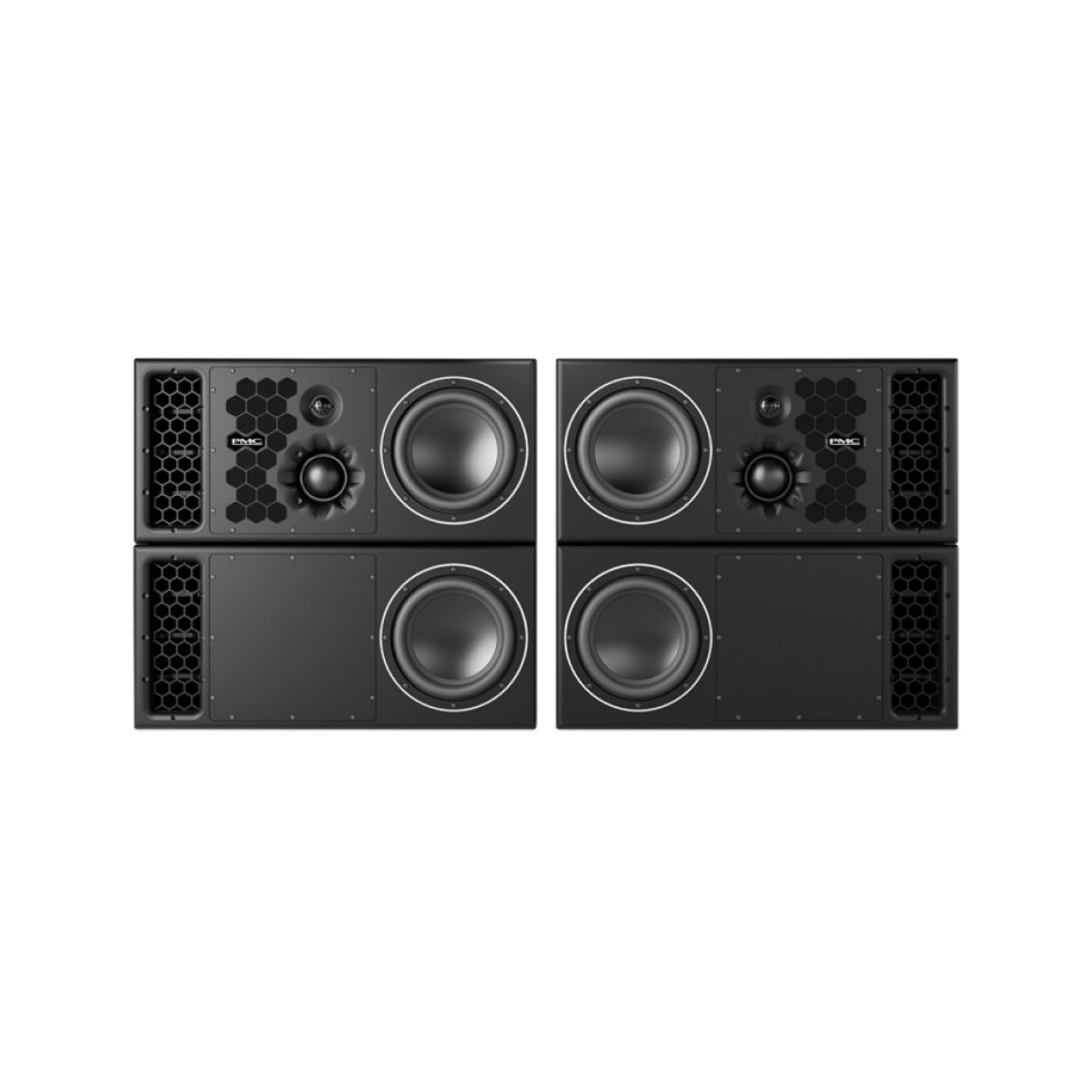

• Rotatable driver panel supporting both vertical and horizontal installation
• Precision DSP crossover management and driver excursion protection
• Full network control and room optimization via the SoundAlign2™ browser interface
• Analog and digital AES3 inputs supporting sample rates up to 192kHz

Tech Specs:

• Type: 3-way, four-driver, dual-cabinet
• LF Drivers: 2 x 10" (250mm) PMC Radial™ Drivers
• MF Driver: 75mm PMC75v3 soft-dome driver
• HF Driver: 34mm soft-dome with n-compass™ waveguide
• Total System Power: 3600W per side (HF: 800W, MF: 800W, LF: 2 x 1000W)

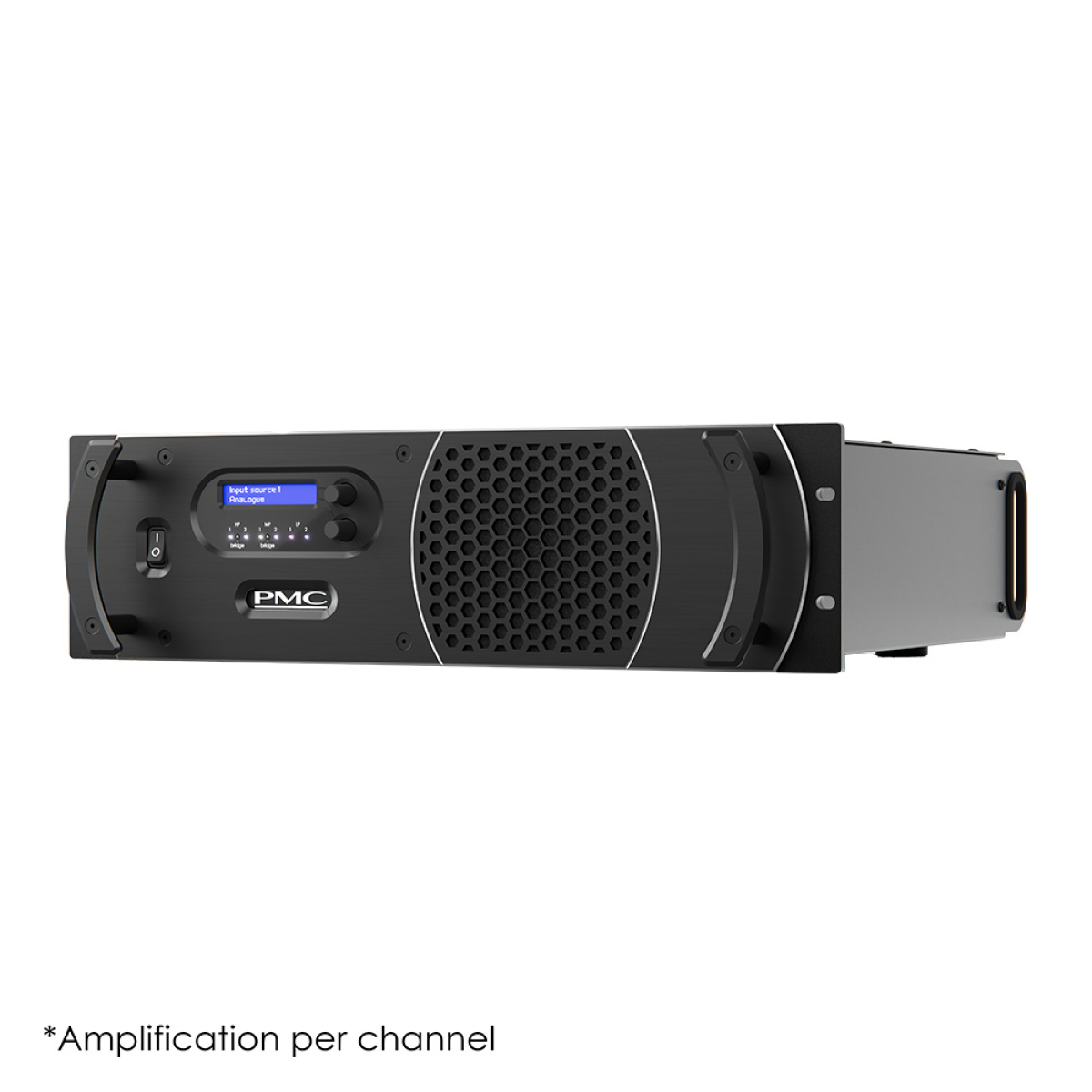

• Amplification Type: master36 DSP/Power amplifier (Class-D)
• Crossover / EQ: DSP-controlled with SoundAlign2™ room alignment
• Input Formats: Analog and Digital AES3 (up to 192kHz)
• Effective ATL™ Length: 2 x 3.6m (7.2m total effective length)
• Cabinet Dimensions: H 770mm x W 355mm x D 420mm (per cabinet)
• Total Weight: 94kg per side (Master: 52kg, SUBxbd: 42kg)
