Neumann KH 310 II Three Way DSP Nearfield Monitor - NEW
Tax included.
Uncompromising Midrange Clarity and DSP Precision
The Neumann KH 310 II represents the pinnacle of three-way active nearfield monitoring for recording, mixing, and mastering engineers as well as broadcast facilities and immersive audio suites. Re-engineered from the ground up, this compact active monitor delivers pristine mid-band transparency, razor-sharp stereo imaging, and deep, time-accurate bass response. Designed for critical audio production, the KH 310 II provides uncoloured sound translation that allows audio professionals to make confident, fatigue-free mixing decisions.
Legendary Midrange Definition

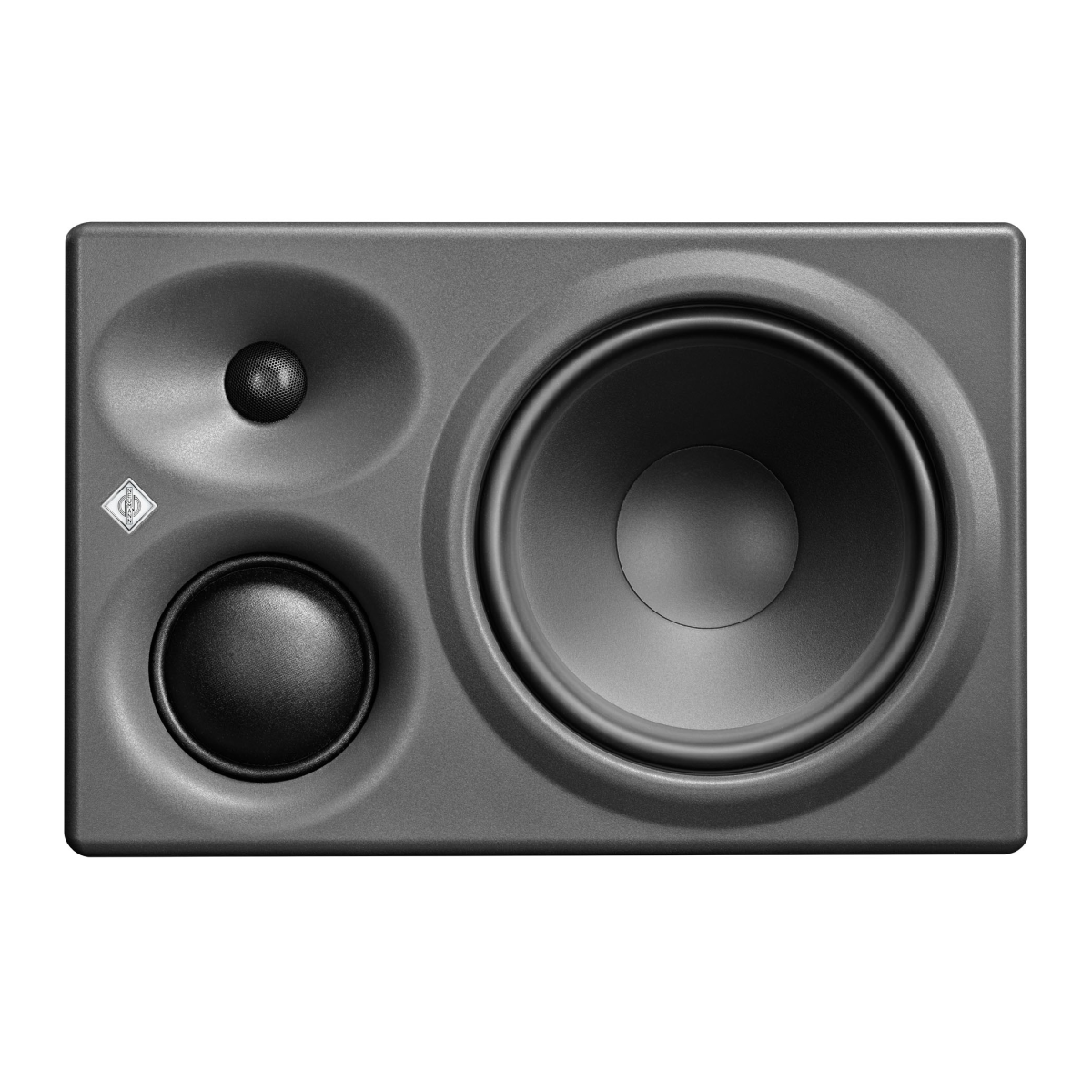

At the heart of the KH 310 II lies Neumann’s acclaimed 75 mm soft-dome midrange driver, paired with an 8.25-inch Extremely Linear Force Factor (ELFF) woofer and a 1-inch metal dome tweeter set within a Mathematically Modeled Dispersion (MMD™) waveguide. This tri-amped system isolates crucial vocal and instrumental frequencies, delivering exceptional mid-band detail with ultra-low intermodulation distortion.
Time-Accurate Sealed Cabinet Architecture
Unlike conventional bass-reflex designs, the KH 310 II utilizes a sealed composite enclosure. This closed-box acoustic principle eliminates port turbulence and drastically reduces group delay, producing tight, articulate low-end transients down to 29 Hz. Engineers gain a trustworthy bass foundation that translates predictably across all consumer playback systems.
Integrated DSP and MA 1 Alignment
Equipped with an internal 64-bit DSP engine and a 32-bit signal path, the monitor supports Neumann MA 1 Automatic Monitor Alignment. Through networked phase and amplitude calibration, the system corrects room modes and boundary reflections, providing linear phase reproduction and exact acoustic adaptation for stereo, surround, and Dolby Atmos® multichannel environments.
Main features:
- Re-engineered three-way active nearfield studio monitor for critical reference applications
- Tri-amplified Class D power platform supplying 525 W total system output
- Sealed enclosure design delivering fast transient response and tight bass reproduction down to 29 Hz
- Dedicated 75 mm soft-dome midrange driver for uncoloured vocal and instrument intelligibility
- Next-generation 210 mm ELFF woofer offering high linear excursion and minimal harmonic distortion
- Mathematically Modeled Dispersion waveguide ensuring wide horizontal directivity and a broad sweet spot
- Ultra-tight manufacturing tolerance achieving ±0.6 dB linearity between 100 Hz and 10 kHz
- Onboard 64-bit DSP engine supporting network-based MA 1 automatic room alignment

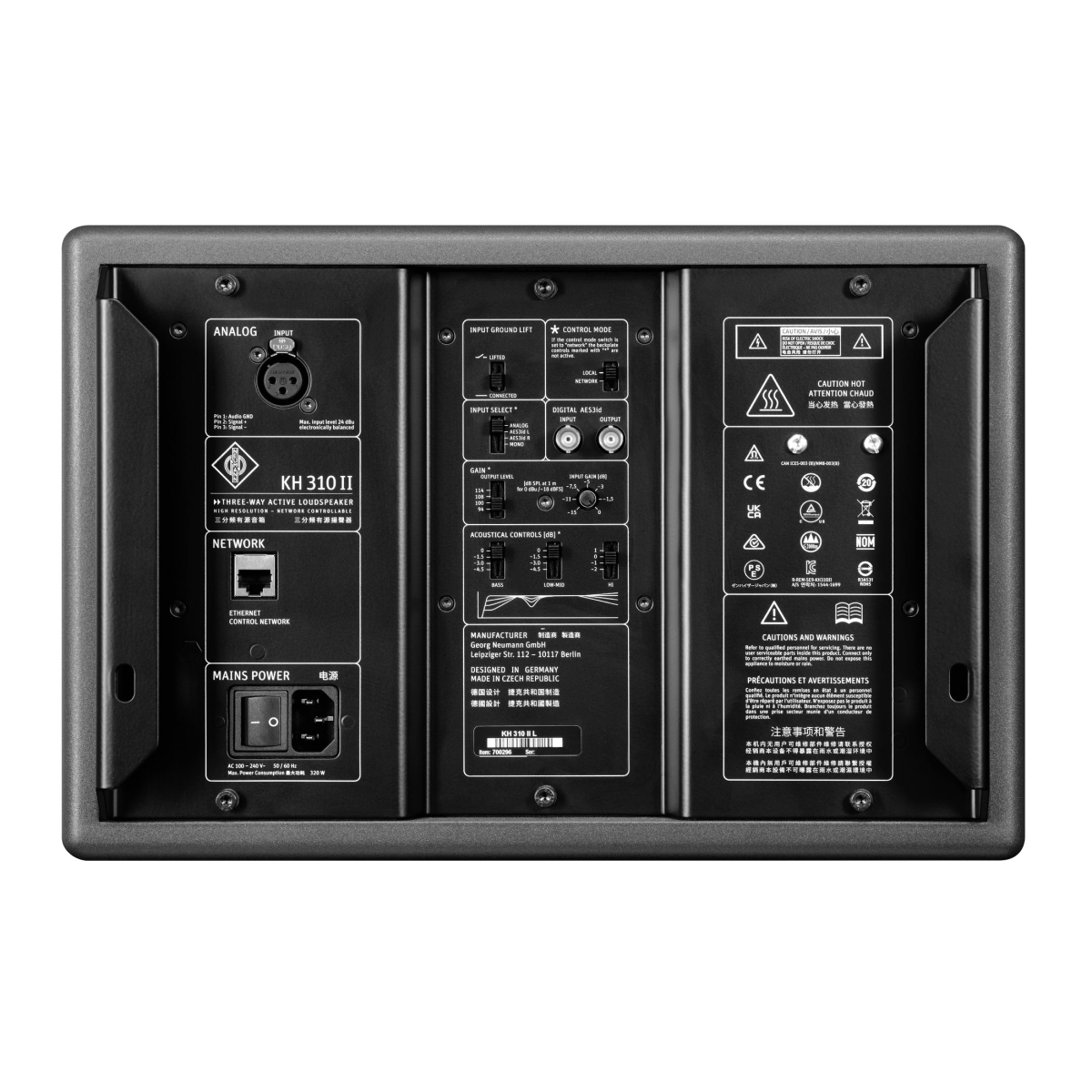

- Balanced XLR analogue input alongside digital AES3id BNC input and output loop
- Backward-compatible cabinet dimensions matching original KH 310 mounting hardware
Tech Specs:
- System Type: Active 3-Way Nearfield Monitor
- Low Frequency Driver: 210 mm (8.25") ELFF Woofer
- Mid Frequency Driver: 75 mm (3.0") Soft-Dome Driver with Magnetic Shielding
- High Frequency Driver: 25 mm (1.0") Fabric-Dome Tweeter with Protective Grille
- Frequency Response (±3 dB): 33 Hz – 21 kHz
- Frequency Response (±6 dB): 29 Hz – 21 kHz
- Linearity Deviation: ±0.6 dB (100 Hz – 10 kHz)
- Max Peak SPL: 121.4 dB SPL @ 1 m in half space
- Amplifier Configuration: Tri-amped (Class D)
- Total Output Power: 525 W Peak (300 W LF / 160 W MF / 125 W HF)
- Crossover Frequencies: 700 Hz / 1.7 kHz (24 dB/octave slope)
- Protection Circuitry: Soft Clip, Peak, Thermo Limiters, Excursion Limiter
- DSP Resolution & Sampling: 32-bit Audio, 64-bit Processing @ 48 kHz
- Phase Correction: Linear Phase (60 Hz – 18 kHz, ±45°)
- Room Alignment: Neumann MA 1 Automatic Monitor Alignment Compatible
- Analogue Input: 1 x XLR (Electronically Balanced, >12 kΩ)
- Digital I/O: 1 x BNC Input (AES3id, 75 Ω), 1 x BNC Output (AES3id Loop-Through, 75 Ω)
- Network / Control: 1 x RJ45 Ethernet Port
- Cabinet Design: Sealed (Closed-Box) Composite
- Cabinet Material: Polycarbonate Front, Wooden Sleeve, Aluminium Rear
- Mounting Points: 2 x M8 Side Panel Threads
- Dimensions (HxWxD): 253 x 383 x 292 mm |
- Weight: 13.0 kg
- Discover Neumann KH 310 II Active Studio Monitor: https://www.neumann.com/en-us/products/monitors/kh-310-ii
If you would like to confirm availability first or inquire for possible price-matching send us a quick mail.
