Neumann KH 150 6.5-inch Studio Monitor Pair with MA 1 Monitor Alignment Mic

A New Highly Advanced Compact Monitor from Neumann

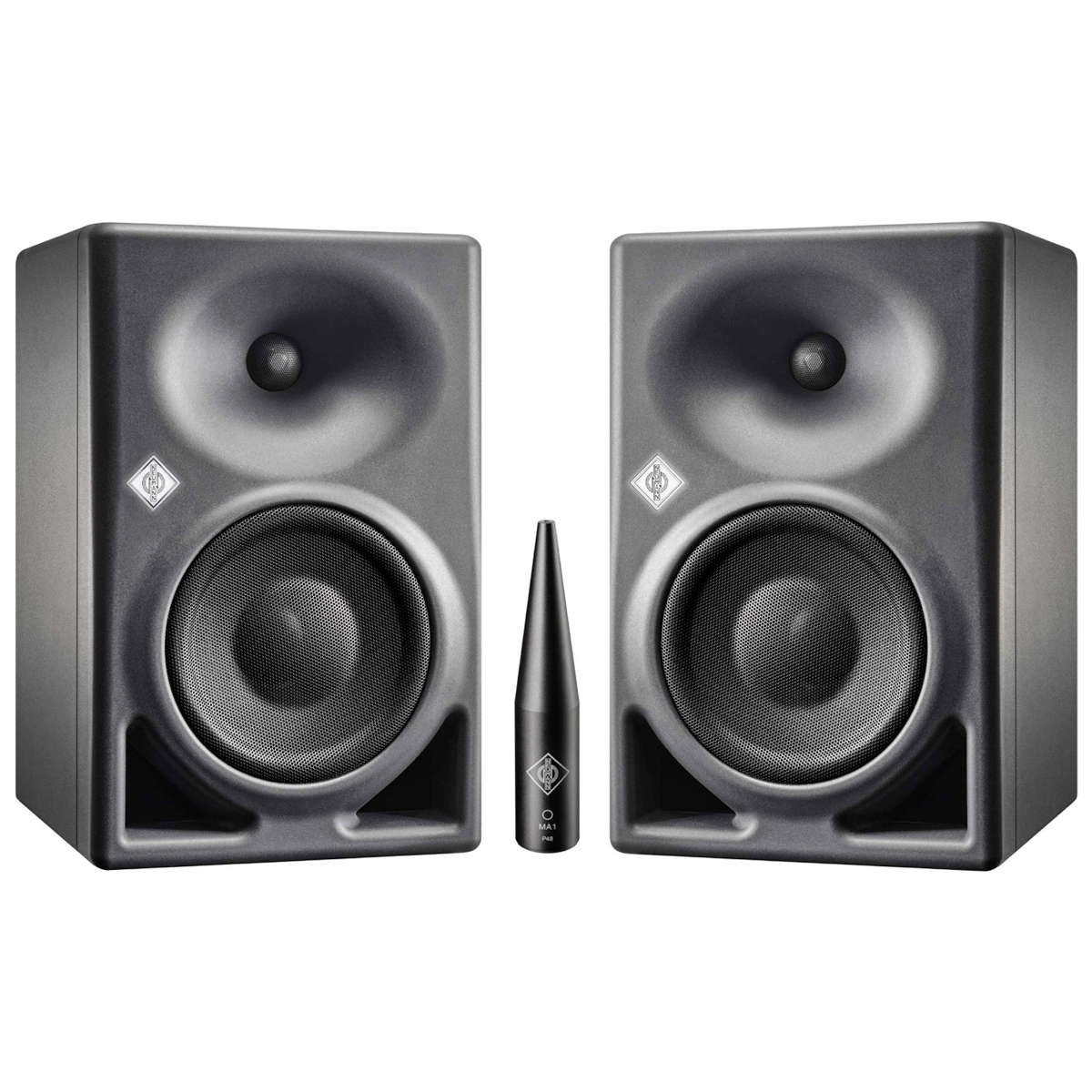

Whats included in this bundle:

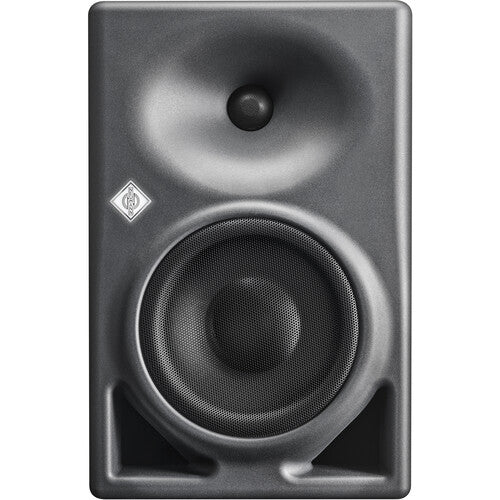

2 x Neumann KH 150 Powered 2-way DSP monitors.

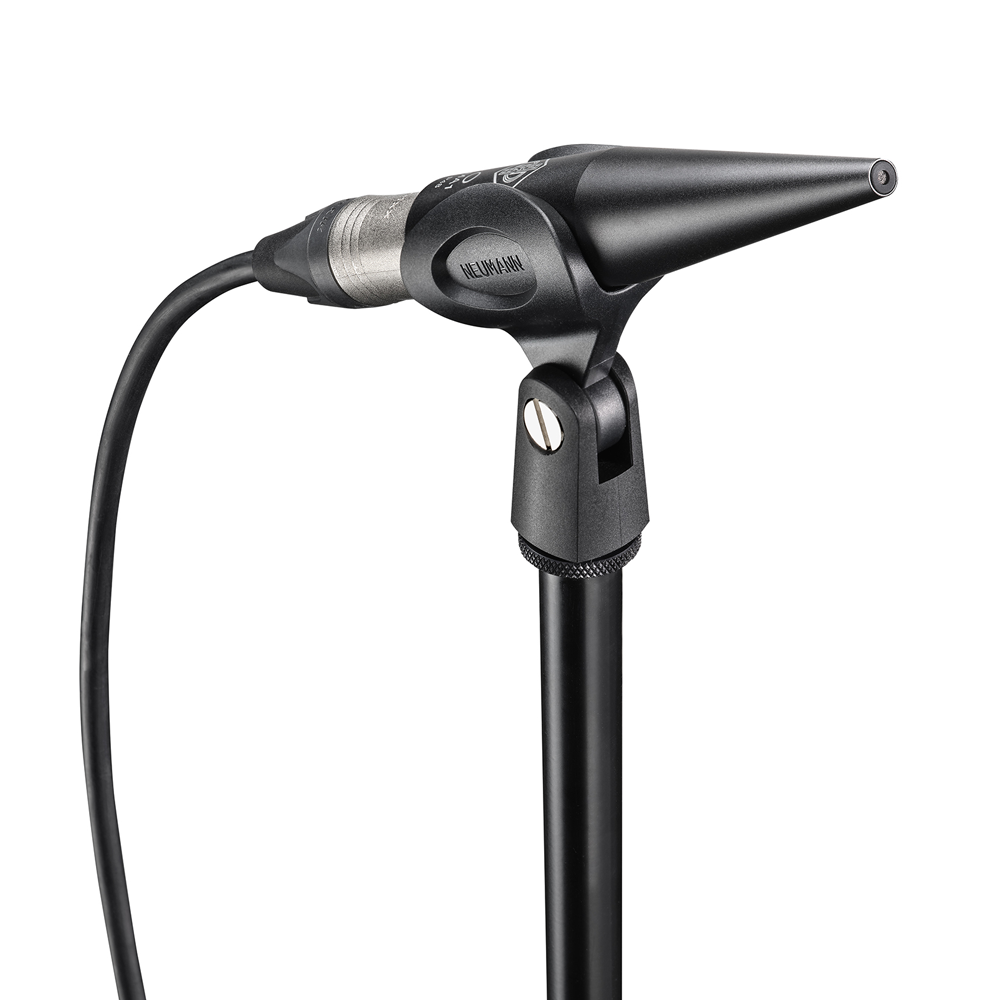

1 x Neumann MA 1 Monitor Alignment Microphone and Calibration System.

2-way Bi-amplified Studio Monitor with 145W 6.5" Woofer, 100W 1" Tweeter, MMD Waveguide, DSP Engine, Analog and S/PDIF Connectivity.

Now Available for backorder.

The Neumann KH 150 takes the guesswork out of music production, making the process so much easier — and infinitely more artistic. The KH 150’s exceptionally linear phase response results in astonishingly clear and transparent midrange and maximum accuracy in the time domain, which can be heard in the monitor’s fine resolution of low-volume reverb tails. This is thanks to Neumann’s DSP-controlled electronics, which make possible sophisticated crossovers that circumvent the phase distortion generated by analog filters. The internal DSP also raises the bar for tonal consistency, as the KH 150 is spec’d to extremely low tolerances of less than ±0.8dB. Neumann’s punctilious engineering manifests itself in a stereo soundstage that is razor-sharp. Bottom line: you’ll find it’s easier to place vocals, bass, and solo instruments in a mix, allowing you to achieve an ideal balance that sounds great under any and all playback conditions.

With its powerful amplification, advanced protection limiters, robust low-frequency performance, and high SPL capabilities, the KH 150 is a perfect studio monitor for EDM, rock, metal, and urban genres; as well as film scoring and all applications that involve extended low-end and/or high-volume monitoring levels. The soundstage remains coherent even at high SPLs. But the KH 150 is equally adept at revealing the subtleties of a nuanced classical piece or acoustic jazz performance. Its universal versatility also makes it a perfect monitor for broadcast booths as well as ADR and voice-over work. The KH 150 is a crowning technical achievement in transducer innovation, but then, that’s what Neumann has been doing since 1928. Make the leap to truly world-class monitoring with the Neumann KH 150.

Neumann KH 150 Active Studio Monitor (each) Features:

• Deep, tight low end; smooth, extended highs
• Razor-sharp stereo soundstaging
• Linear frequency response 39Hz–21kHz (±3dB)
• Efficient Class D bi-amplification: 145W (LF), 100W (HF)
• High-precision custom drivers
• Mathematically Modeled Dispersion (MMD) waveguide
• DSP engine for optimized performance and room adaptive calibration via optional MA 1
• Linear phase response, 105Hz–16kHz (±45°), with latency <2.6ms
• Advanced crossover and protection limiters
• Engineered to extremely tight (±0.8dB) tolerances
• Robust maximum SPL rating of 118dB at 1 meter
• Meticulously engineered 20-liter bass reflex cabinet
• Analog and S/PDIF connectivity (optional: AES67)
• May be combined with other KH series speakers in immersive/surround configurations

Tech Specs

• Powered:Yes
• Power Configuration:Bi-amped
• Quantity:Single
• LF Driver Size:6.5" Woofer
• HF Driver Size:1" Tweeter
• LF Driver Power Amp:145W
• HF Driver Power Amp:100W
• Total Power:245W Class D
• Frequency Response:36Hz-21kHz
• Crossover Frequency:48 dB/octave @ 1700Hz
• Maximum Peak SPL:118.7 dB SPL @ 1m

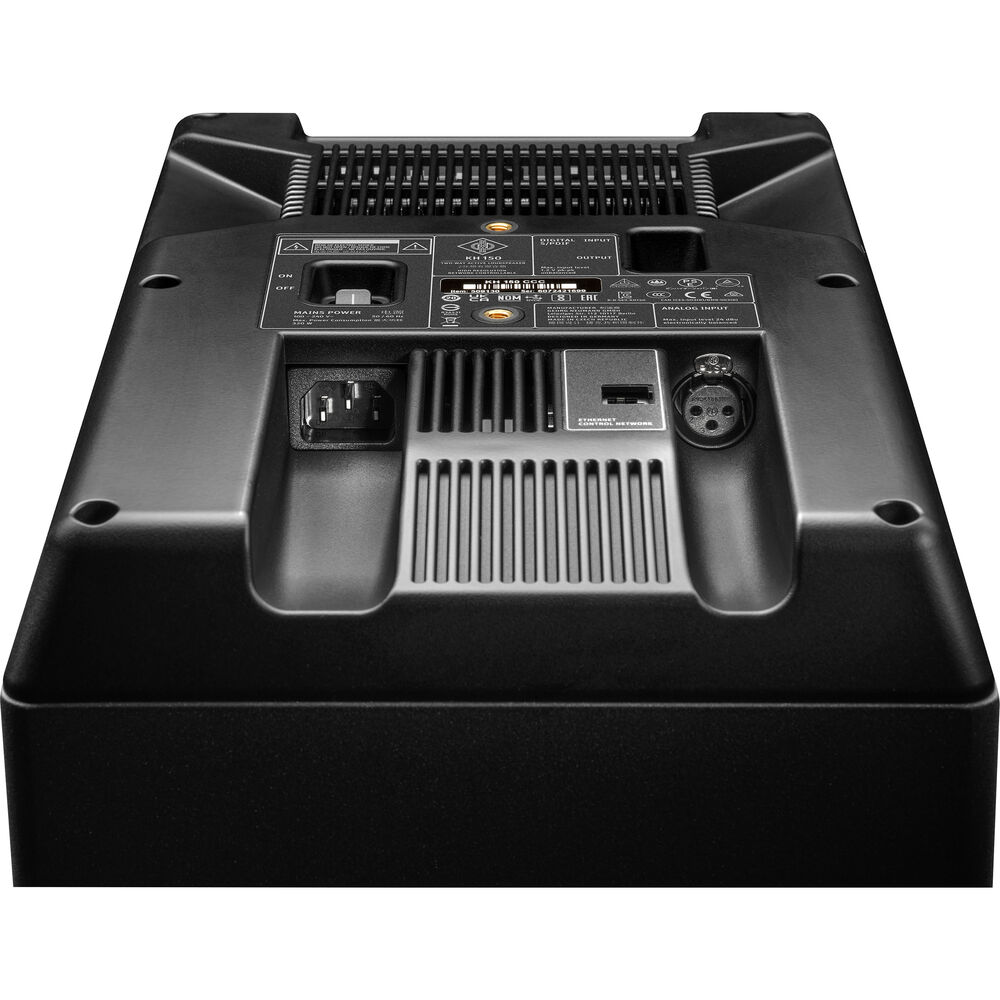

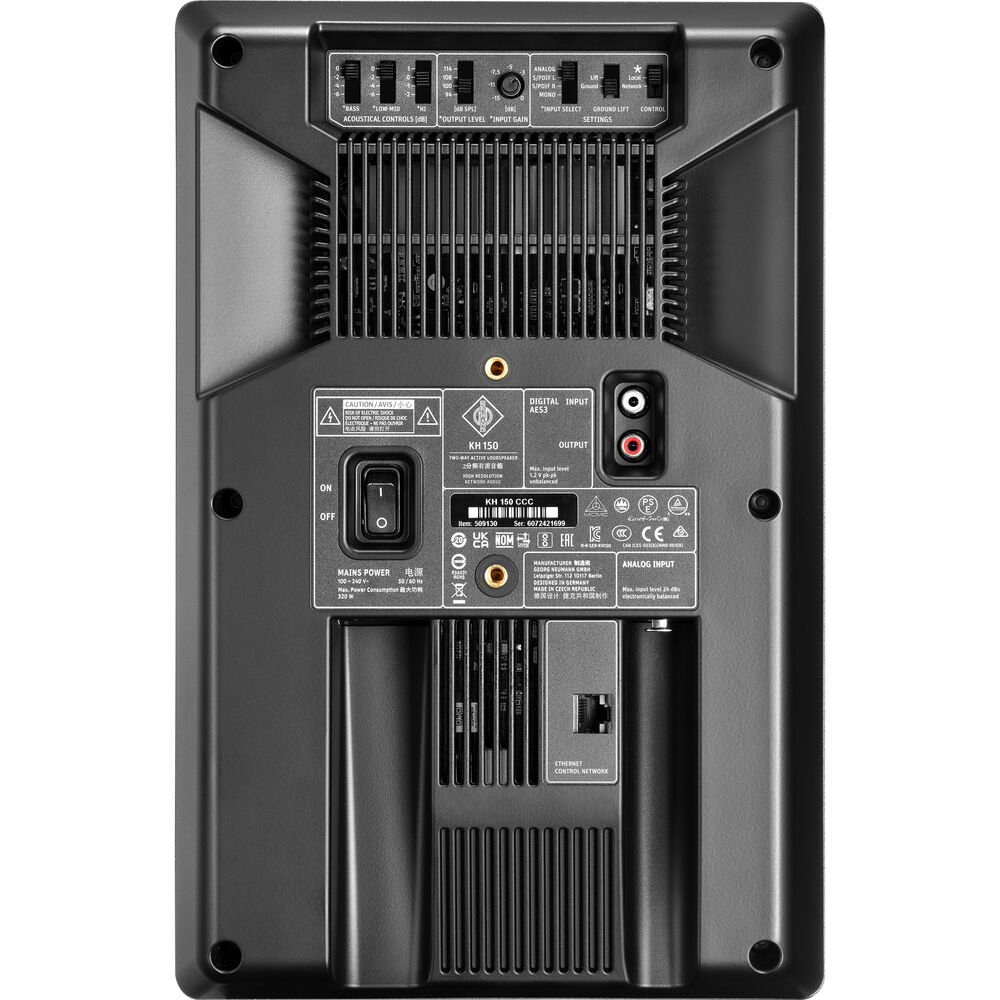

• Input Types:1 x XLR, 1 x Coax (S/PDIF)
• Output Types:1 x Coax (S/PDIF)
• Other I/O:1 x RJ45 (Ethernet Control Network)
• Features:DIP switches, Tilt, Input Gain, Input Selector
• Software:Neumann MA 1 Monitor Alignment App
• Enclosure Type:Front Ported
• Enclosure Material:Composite polycarbonate front and rear, wooden sleeve

Neumann MA 1 Automatic Monitor Alignment Features:

• Provides automatic monitor alignment for KH 80 DSP loudspeakers or non-DSP KH monitors via a KH 750 DSP subwoofer
• Employs calibration algorithms developed in cooperation with Fraunhofer IIS
• Comes with an individually calibrated measurement microphone
• Adjusts the frequency curve of your DSP-powered monitors
• Optimizes the amplitude response and phase of all the speakers in your setup
• Calibration settings stored directly inside of your DSP-powered monitors — no plug-in required
• Ethernet connections may be disconnected after optimization has been completed

Tech Specs:

• Microphone Type:Pressure Transducer
• Polar Pattern:Omnidirectional
• Frequency Response:20Hz-20kHz
• Max SPL:132dB
• Output Impedance:50 ohms
• Signal to Noise Ratio:67dB (A weighted)
• Self Noise:27dB (A weighted)
• Sensitivity:30mV/Pa (-30 dB)
• Connector:XLR

Buy the Neumann KH 150 & MA1 Bundle from Audiosaurus. The online Pro Audio Specialists in South Africa.
