Lake People MC50 - Studio Monitor Controller - Available on Request

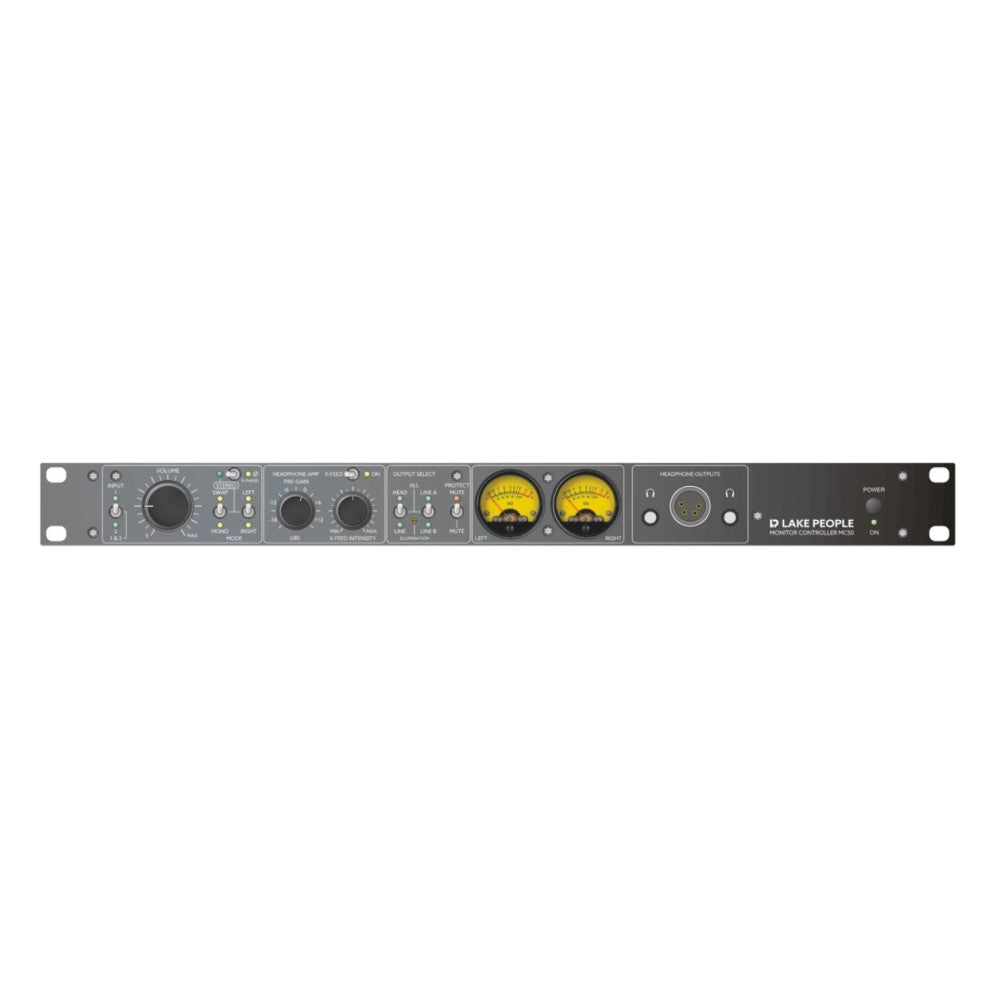

The Lake People Monitor Controller MC50 offers two inputs, a slave output, two line outputs to connect amplifiers or active speakers, and a true balanced headphone amplifier with 4 power stages equipped with front-controlled Pre-Gain and X-Feed – thus much more than conventional Monitor Controllers in 19“, 1 U format. The complete set of stereo signal manipulation options, Solo L, Solo R, Channel Swap, Mono, Right Channel Phase Reverse and the high-quality RK27 volume control with 41-detent make it stand out from the crowd. In addition, it is as low in noise and distortion as physics allows.

Special attention was paid to the headphone amps inside MC50. They consist in principle of two G111 amps and are able to supply balanced headphones “as it should” due to their four power stages.

Because of the unique Pre-Gain function on the front panel, virtually any headphone is perfectly adaptable. The Pre-Gain function offers six positions from -18 to +12 dB in steps of 6 dB.

The X-Feed function serves to reduce the “In-Head-Localization”, which is often found to be annoying and fatiguing when listening with headphones. X-Feed is activated by a switch and continuously variable with reasonable amounts. An LED displays the active state.

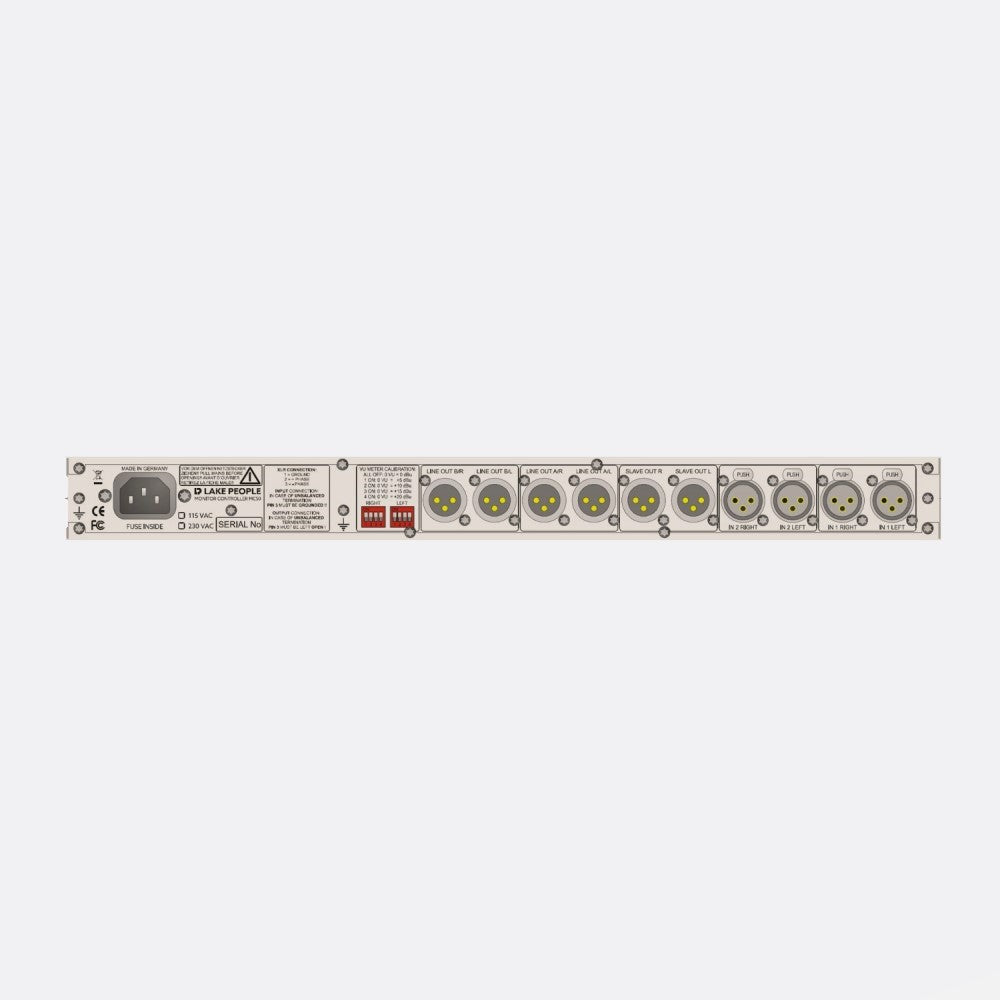

All gold plated XLR (back connectors):
- two balanced inputs (Input 1 and 2)
- one balanced Slave output, here the activated input signals without volume control
can be found
- two balanced line outputs, controlled by the volume attenuator and the settings of the
monitoring section to feed power amplifiers or active speakers

Main Features:

• Stereo signal manipulation options
• Solo L / R
• Channel Swap
• Phase Reverse
• Mono
• Mute and Dim function

• Large 25mm High-quality volume control
•  Alps RK27 potentiometer with 41-detent for precise settings.

• Low noise and low distortion

Tech Specs:

• Type: Studio Monitor Controller
• Analogue Inputs: 2 x balanced, XLR
• Input Parameter: 10 kOhm Impedance, max. +22 dBu
• Frequency Range: 5 Hz – 80 kHz (-0,5 dB)
• Crosstalk: < -100 dB @ 1 / 15 kHz
• THD+N: < -100 dB
• Dynamic Range: > 125 dB
• Slave Outputs: 1 x balanced, XLR
• Amp Outputs: 2 x balanced, XLR
• Output Parameter: 1 Ohm Output Impedance, max. +26 dBu
• Headphone Amp: 2 x 1/4“ (6,3 mm), unbalanced, silver-plated
  1 x 4-pol XLR, balanced, gold plated
• Power Supply: 115 / 230 V AC, max. 15 VA
• Case: Stainless Steel
• Front: Aluminium, black anodized
• Dimensions (WxHxD): 483 x 44 x 166 mm
