HEDD TM80 Tower Mains and TMS36 Subwoofers - Paired (Special Order)

HEDD TM80 Tower Mains and TMS36 Subwoofers - Paired (Special Order)

HEDD | Heinz Electrodynamic Designs The HEDD Tower Mains lets you rediscover what decisive role dynamics play in audio reproduction and how pivotal they are...

Vendor :HEDD

Type :Loudspeaker Management Systems

R485,990.00

Add to wishlist

HEDD | Heinz Electrodynamic Designs

The HEDD Tower Mains lets you rediscover what decisive role dynamics play in audio reproduction and how pivotal they are to achieve the highest degree in realism and authenticity. They are more than just tools: They give recording and mastering engineers superior acoustic control over their work.

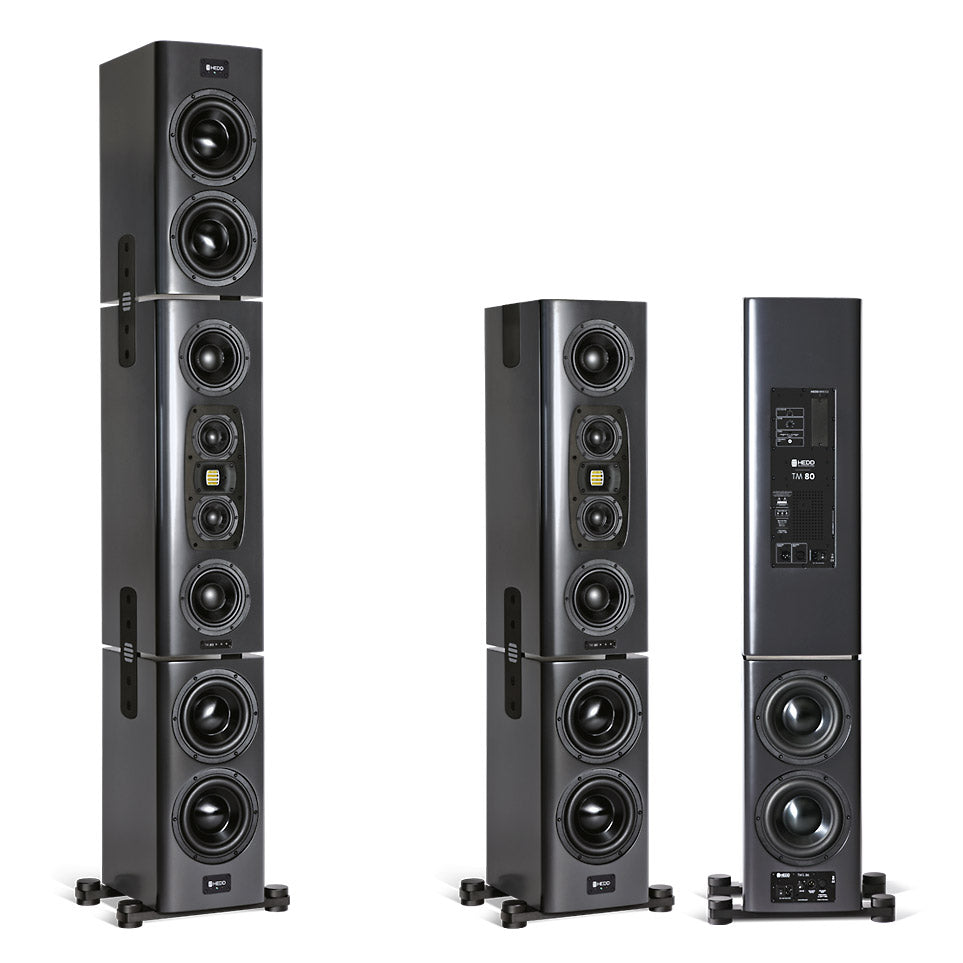

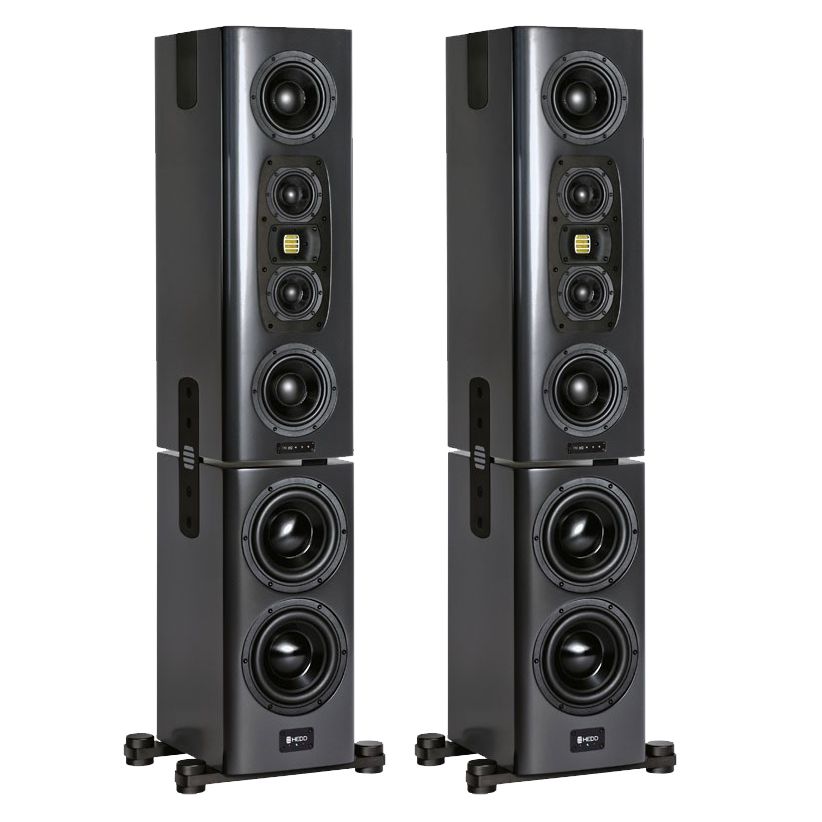

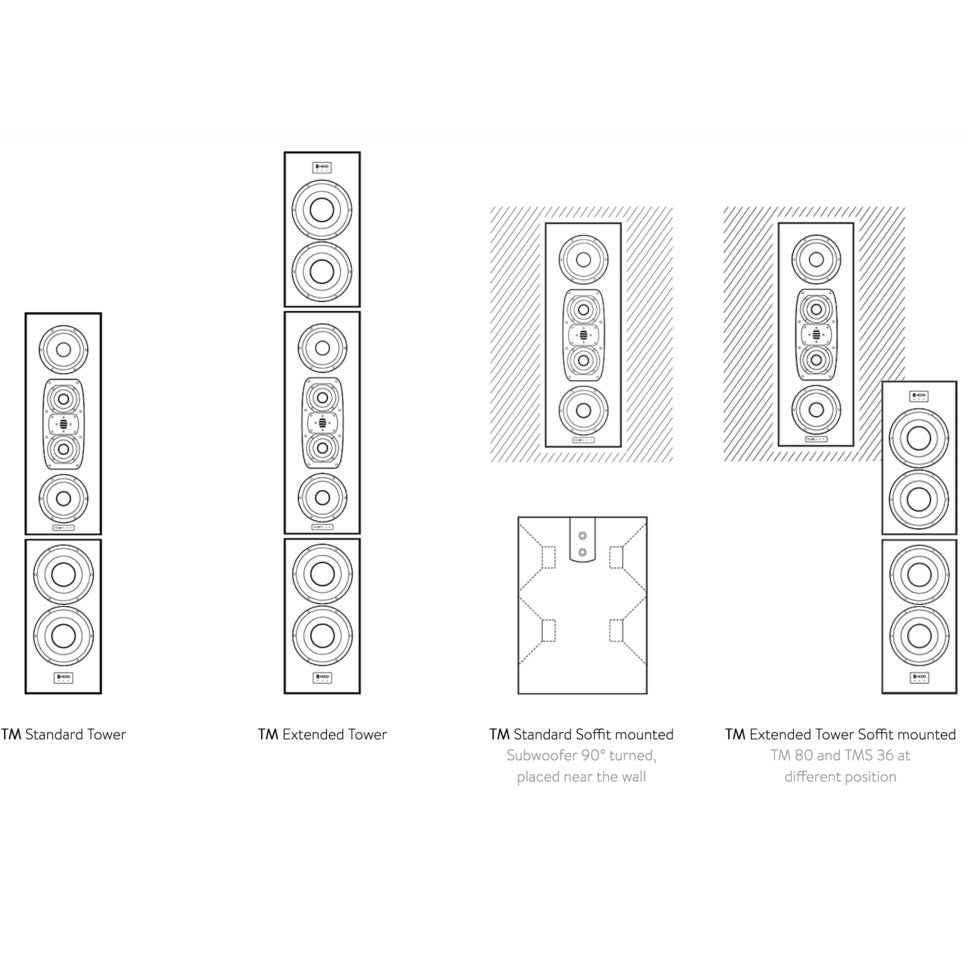

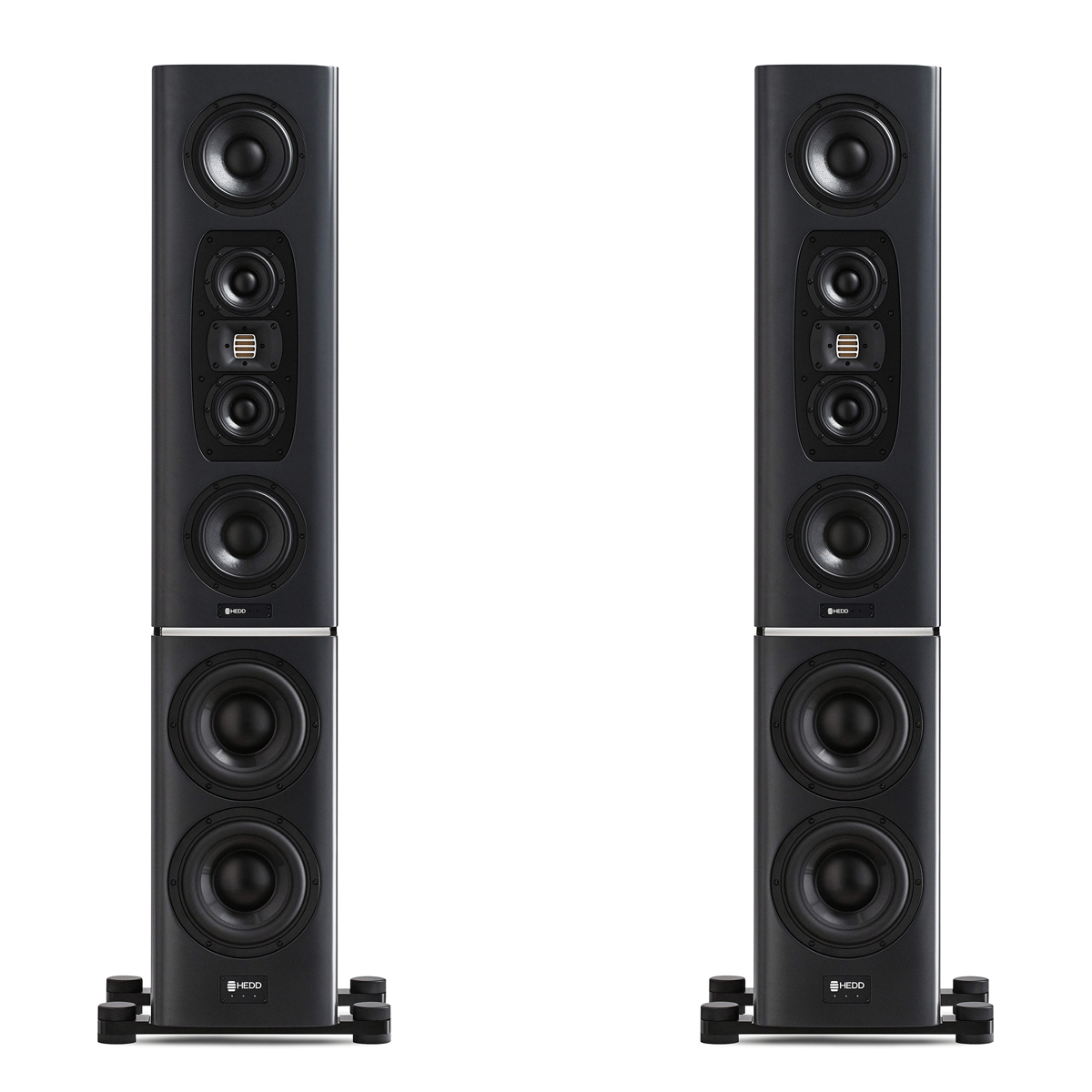

The HEDD TM come in two configurations (standard and extended) and consists of one main unit (TM 80) that can be combined with either 1 or 2 subwoofers per channel. The extended tower includes two TM 80, four TMS 36Other configurations are also possible with soffit mounting or 5.1 configurations. TM 80 units provides a full range of studio monitoring and active audiophile systems, offering an impressive dynamic response to achieve the highest degree of realism and authenticity.

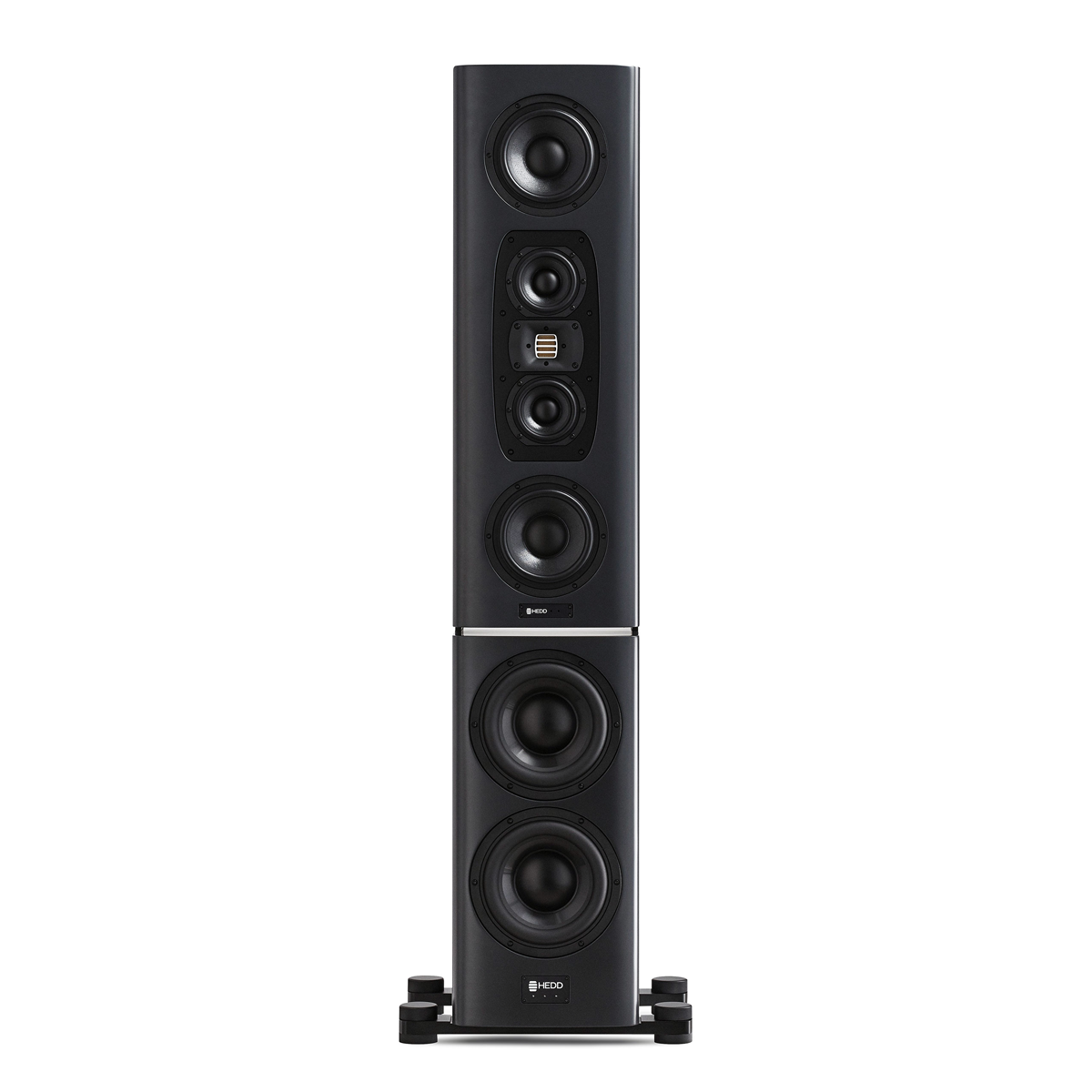

Each of the TM 80 main unit comprises of five divers in a vertically symmetrical alignment using – a quasi d’Appolito configuration with the HEDD Air Motion Transformer as the centrepiece – delivers broad horizontal dispersion but a controlled vertical directivity. Thus unwanted reflexions from the ground or the ceiling are reduced. Each of the speaker elements, (Mains and Subs) use closed cabinet designs for ideal transient audio reproduction.

A Modular Main Monitoring System

This arrangement provides wide horizontal dispersion but tightly controlled vertical directivity. The TM 80 is a 3-way system with each driver powered by a 300W amplifier. Its frequency response ranges from 80Hz all the way up to 50kHz. The TMS 36 subwoofer comprises two / four 9” long-throw woofers, two at the front and/or two at the back with the extended, each powered by an ICEpower 1200 AS2 amp module delivering 300W (1200W in total). This provides ample headroom for a superior transient response while the opposing woofers cancel their impact on the enclosure thus avoiding cabinet resonance.

Main features:

  • HEDD Tower Mains deliver a stunning reproduction quality up to very high SPLs.
  • The modular approach allows different setups with one or two closed box subwoofers per channel.
  • The Tower Mains show advantageous directivity patterns to minimise reflections from the ceiling and the ground.

  • Tech Specs (TM 80):

    • Monitor Type: Studio / Production / Theatre Loudspeaker
    • Power Configuration: 6-way vertical design
    • Bass Driver Size: 7.2" honeycomb Woofer + 1.5" voice coil
    • Midrange Driver Size: 4.7" + 1.25" voice coil
    • Tweeter Size: 2.2"
    • Tweeter Type: Ribbon (HEDD AMT)
    • Power Amplification: 3x 300W (ICEpower)
    • Frequency Response: 80 Hz (-6 dB) - 50 kHz
    • Crossover Frequency:  250 Hz, 2.5 kHz
    • Maximum Peak SPL: ≥120 dB SPL
    • Input gain:  -20 dB … +6 dB
    • Impedance: 10 kΩ
    • Cabinet: Closed box design
    • Power Supply: 110-240 V
    • Warranty: 2 years
    • Power Supply: 100 - 240VAC auto-switching, 50-60Hz
    • Dimensions W x H x D: 280 x 835 x 400 mm
    • Weight: 35 kg each

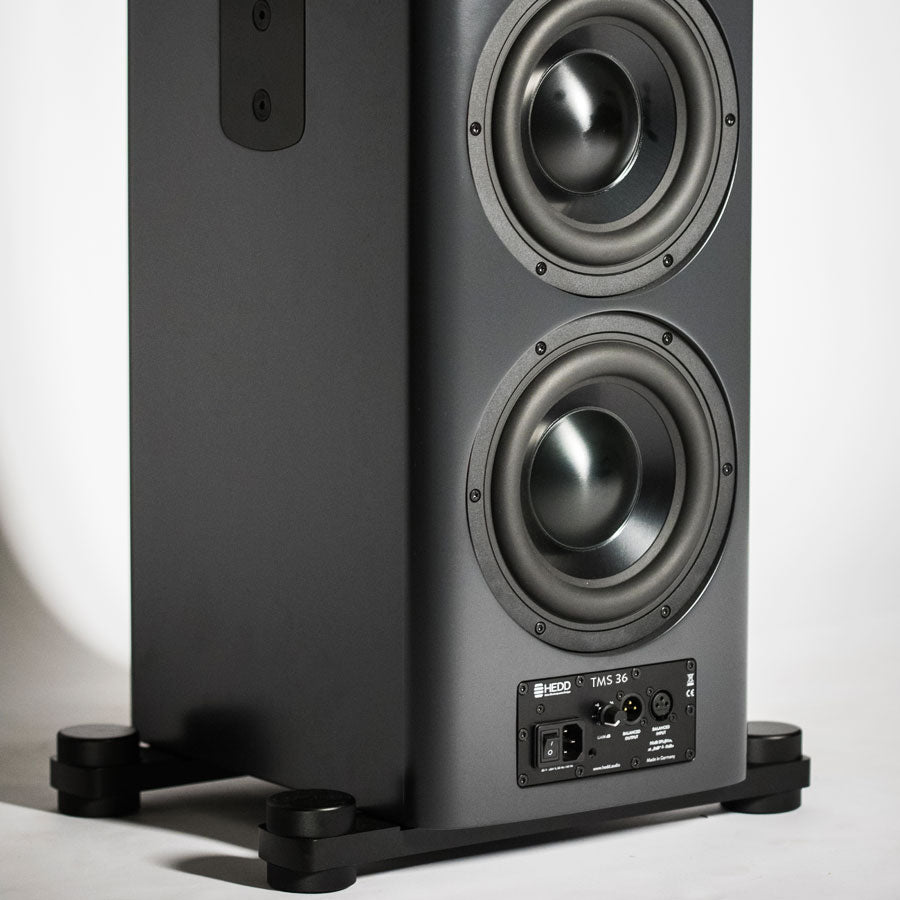

    TMS 36 Specs:

    • Type: Studio subwoofer
    • Powered: Yes
    • Bass Driver: 9" honeycomb Woofer + 2" Voice coil
    • Power Amplification: 2 x 600W
    • Frequency Range: 20 Hz (-3 dB) - 80 Hz (-6 dB)
    • Crossover frequency:  80 Hz (- 6 dB)
    • Maximum Peak SPL: 122dB @1m
    • Impedance: 10 kΩ
    • Input Grain:  -20 dB … +6 dB
    • Cabinet: Closed box design
    • Power Supply: 110-240 V
    • Dimensions (W x H x D): 280 x 580 x 400 mm
    • Weight: 36 kg each

    Pre-order your HEDD Tower Mains (paired/single) from Audiosaurus today.
