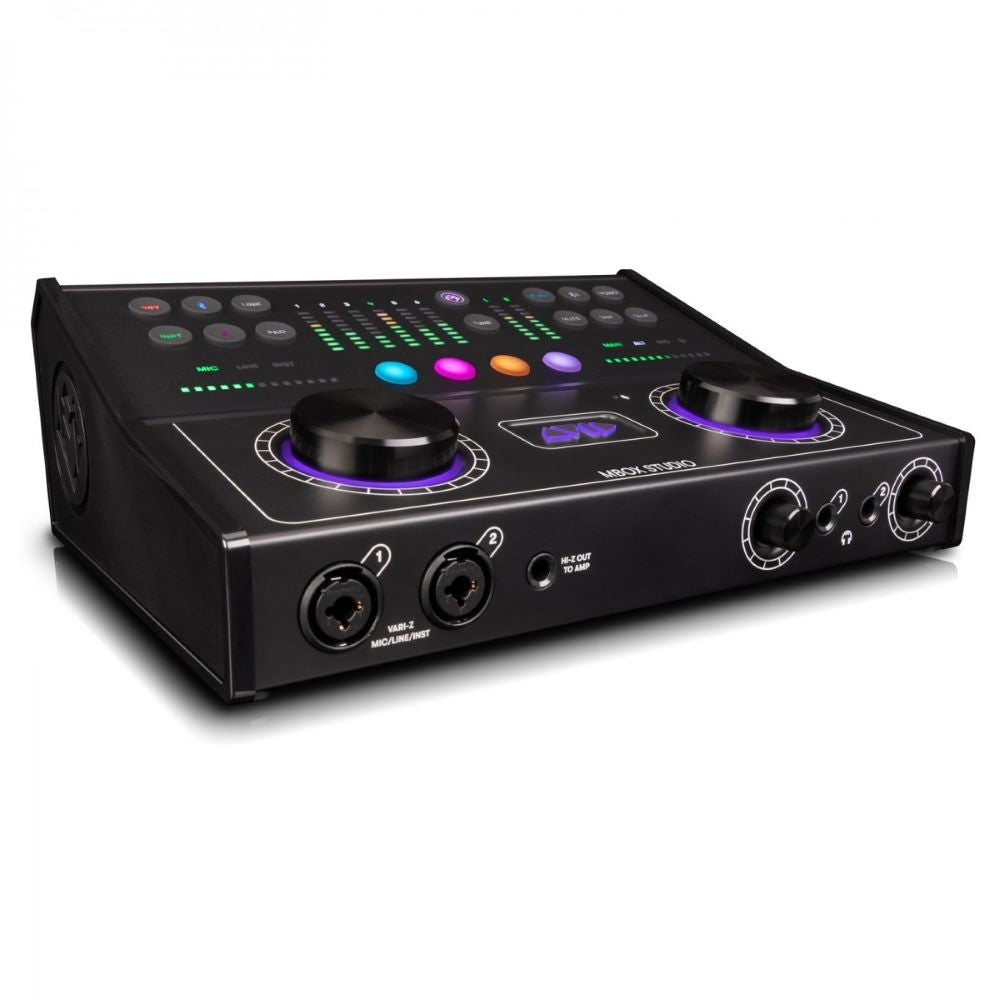

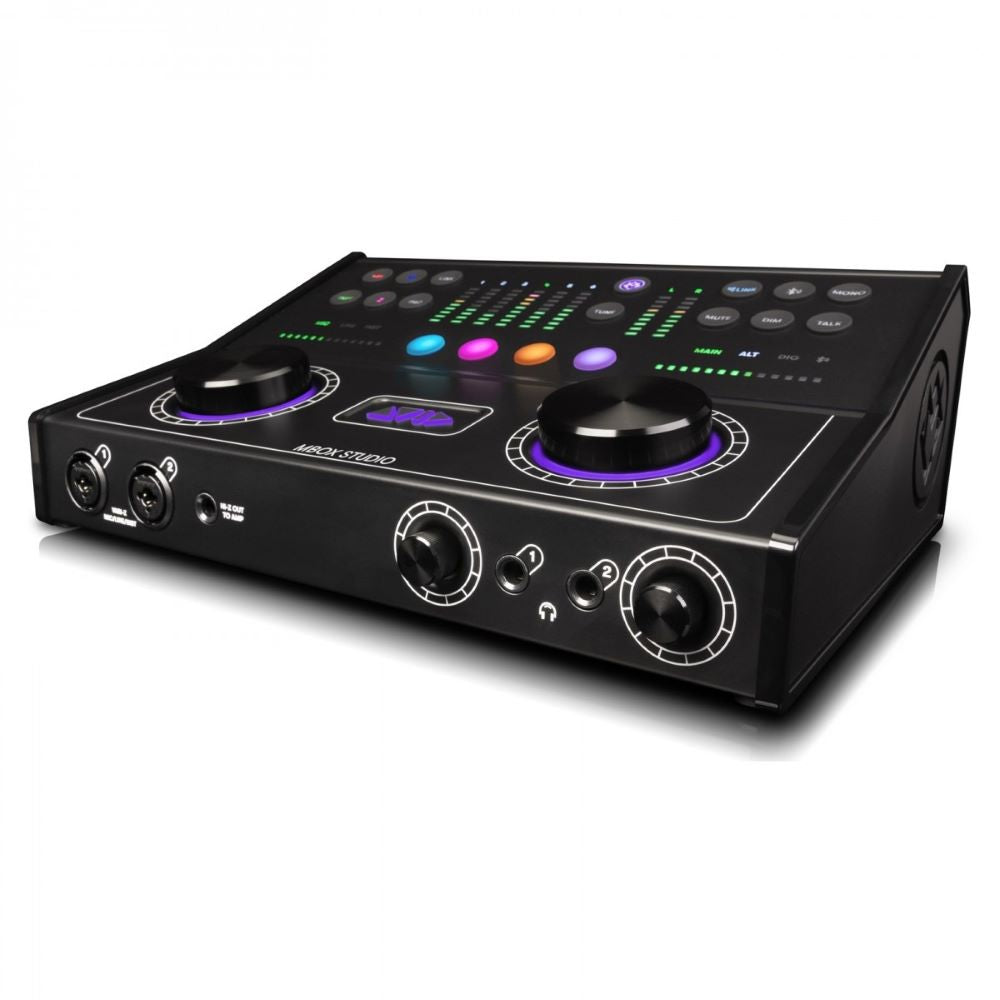

Avid MBOX Studio

MBOX Studio USB interface

MBOX Studio is designed with only the highest-quality components, preamps, and audio converters in its class, enabling you to capture and mix up to 24-bit, 192 kHz audio from input to output. Variable Z opens up a whole range of tonal options. With built-in real-time EQ, delay, and reverb, plus independent cue mixing, you can deliver your best performances with low-latency tracking.

Quickly bring your ideas to life
Easily create, record, edit, and mix music, plus podcast and live stream, without technology getting in the way. Access a full range of functions right from the interface to keep your creativity flowing. Capture and mix music in pristine sound quality with four mic preamps and premium convertors, with the ability to connect eight mics.
Record with mics, instruments, effects, and more with 21 x 22 simultaneous I/O— see more features.

Main features:

• 21-in/22-out simultaneous I/O at up to 24-bit/96kHz (or 10-in/10-out at 176.4/192kHz)
• 4 high-quality mic preamps with variable Z for maximum performance with any microphone
• 2 variable-impedance instrument inputs make connecting your electric guitar or bass a breeze
• 4 additional line-level inputs; 2 impedance-switching effects loops
• Stereo Bluetooth I/O for checking mixes in your car, jamming with your iPhone, connecting your AirPods, and more
• 8 channels of optical ADAT or 2 channels of optical S/PDIF; coax S/PDIF and MIDI I/O

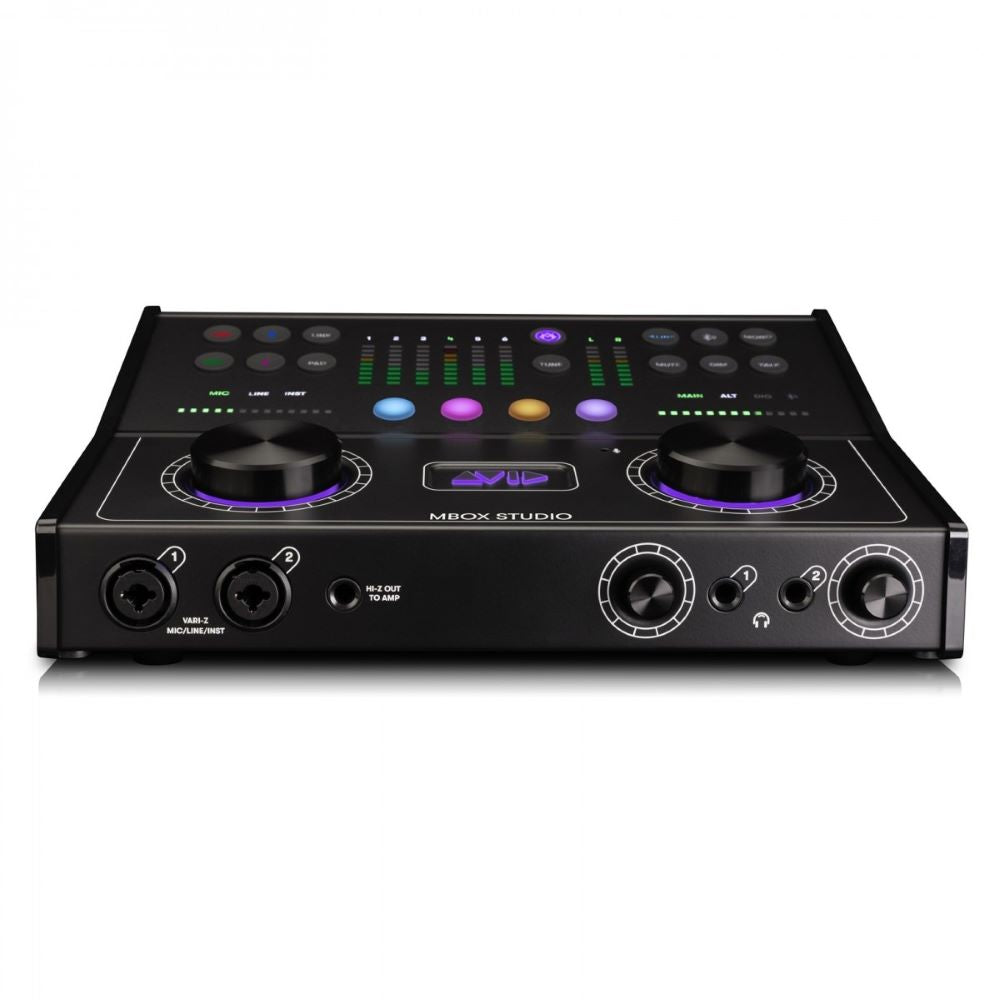

• Impedance-matched, hi-Z output for effortless guitar re-amping
• 2 footswitch/expression pedal inputs
• 2 stereo monitor outputs for fast, easy referencing

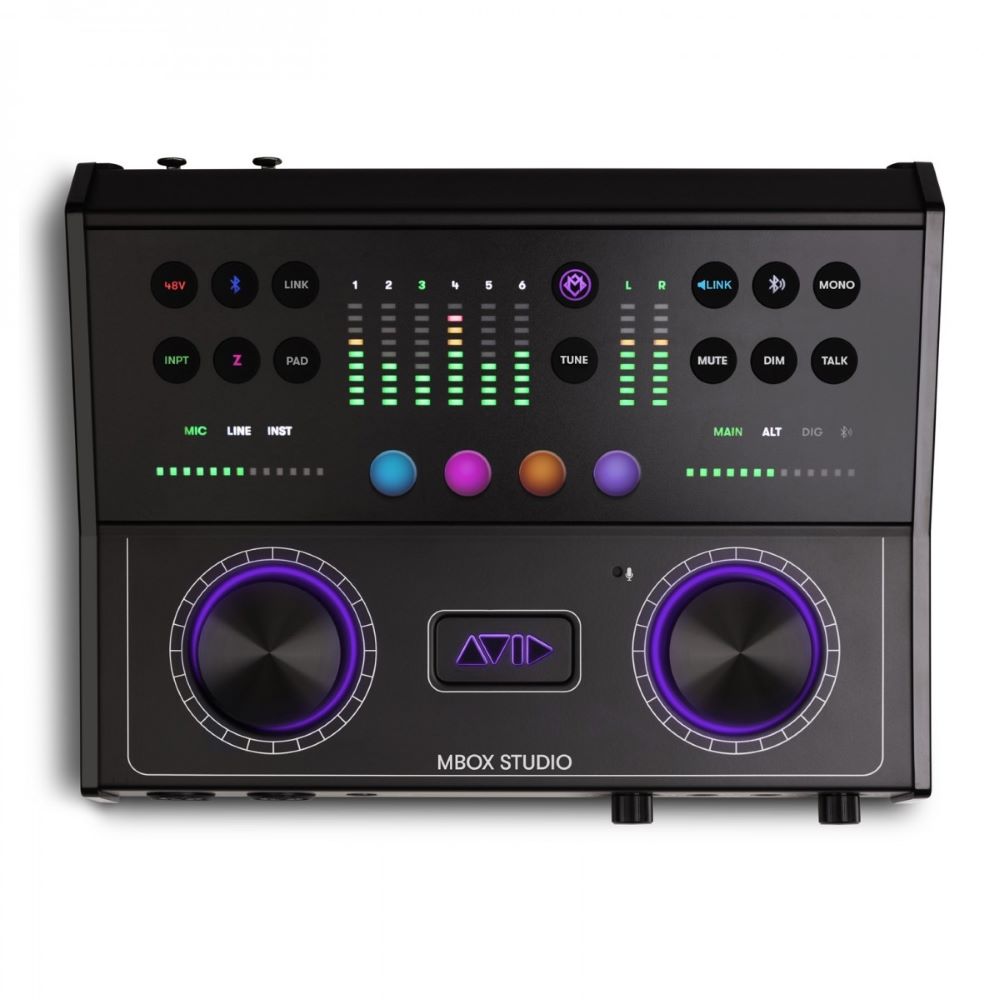

• Top-panel Mono, Mute, and Dim buttons put essential monitoring functions right at your fingertips
• 2 headphone outputs with independent cue mix control
• Integrated talkback makes in-studio communication a walk in the park
• Low-latency monitoring with built-in effects
• Loopback mixing captures dialogue, along with audio from a video game, YouTube, or another source
• 4 user-assignable buttons for oft-used functions

Tech Specs

• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 21 x 22
• Number of Preamps: 4
• Phantom Power: Yes
• A/D Resolution: 24-bit/192kHz

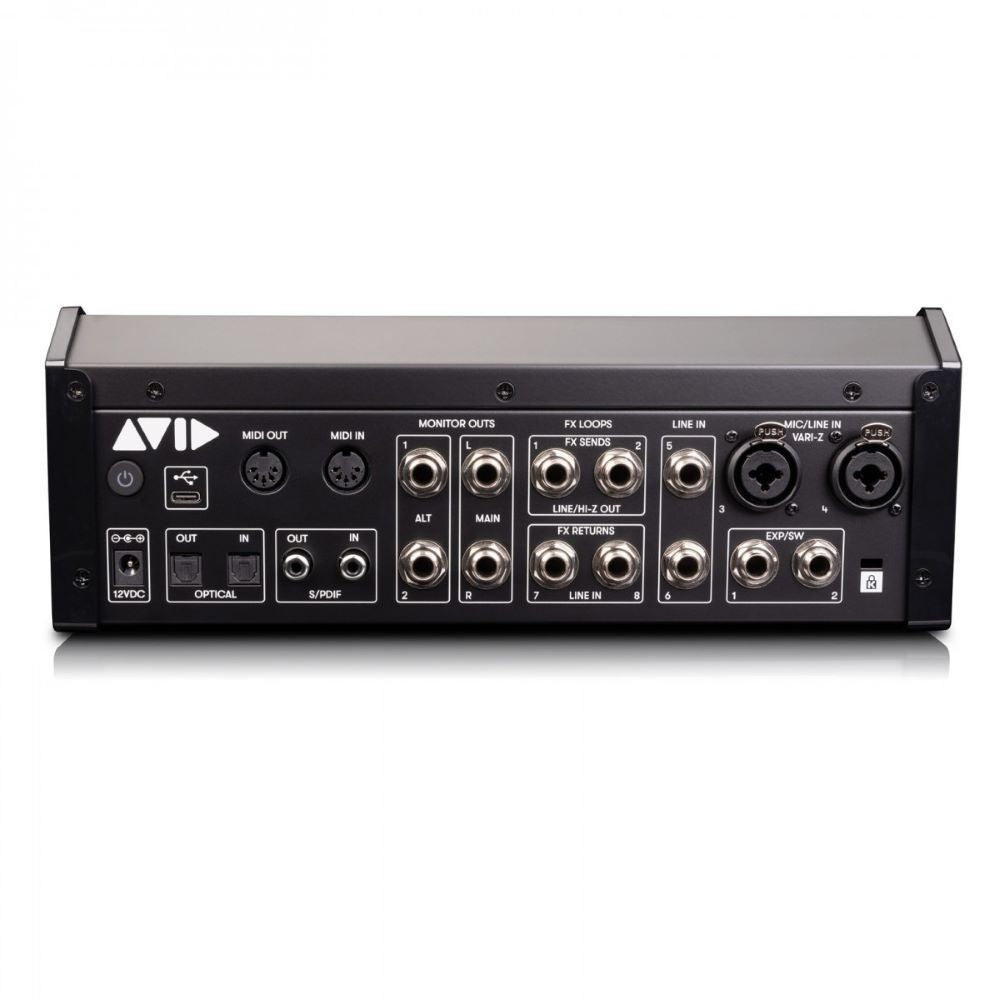

• Analog Inputs: 4 x XLR-1/4" combo (mic/line/Hi-Z), 2 x 1/4" (line in), 2 x 1/4" (return) , 1 x 1/4" (Hi-Z out)
• Analog Outputs: 2 x 1/4" TRS (main), 2 x 1/4" TRS (alt), 2 x 1/4" (send)
• Digital Inputs: 1 x Coax (S/PDIF), 1 x Optical Toslink (ADAT)
• Digital Outputs: 1 x Optical Toslink (ADAT, S/PDIF)
• Inserts: 2 x 1/4" TRS
• Headphones: 2 x 1/4"
• MIDI I/O: In/Out/USB
• USB: 1 x Type C
• Bluetooth: Yes (stereo in/out)
• Other I/O: 2 x 1/4" (remote footswitch)
• Software: Pro Tools Software, Sibelius Artist Annual Subscription, MBOX Studio Ignition Pack
• OS Requirements - Mac: macOS 10.14.6 or later
• OS Requirements - PC: Windows 10 v21H2 or later
• Power Supply: 12V DC power supply (included)
• Dimensions (HxWxD): 105.2 x 288 x 225.3 mm
• Weight: 2.8 kg
