Blackmagic Design Universal Videohub 72

Blackmagic Design Universal Videohub 72

Rack frame lets you add up to 18 BNC SDI or optical fiber SDI interfaces plus a single 72 x 72 crosspoint and power card....

Vendor :Blackmagic Design

Type :Routing And Distribution

Sold Out

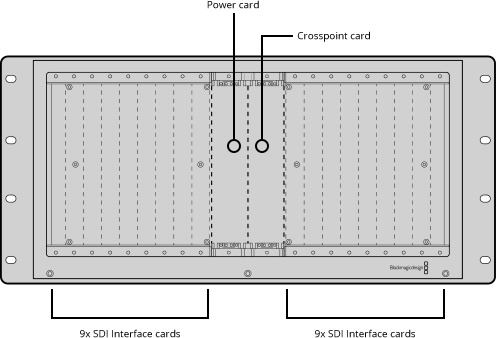

Rack frame lets you add up to 18 BNC SDI or optical fiber SDI interfaces plus a single 72 x 72 crosspoint and power card. Includes removable fan tray and fans.

Connections

SDI Video Output

Up to 72 x SDI/HD-SDI, 3G-SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.

Reference Input

1 x Black burst and Tri-Level Sync for all SD, HD and 2K SDI and optical connections.

Multi Rate Support

Auto detection of SD, HD or 3G-SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.

SDI Video Input

Up to 72 x SDI/HD-SDI, 3G-SDI and ASI. Can be BNC SDI or optical fiber SDI.

Updates

USB 2.0 high speed (480Mb/s) interface.

Device Control

Up to 72 bidirectional Sony? compatible RS-422 deck control ports via breakout cable.

RS-422 Router Control

1 x input for controlling router crosspoint switching.

Router Control

Use either RJ45 Ethernet or Smart Control or Master Control shared over IP network.

Router Configuration

Use either RJ45 Ethernet or USB 2.0 (IP setting only) high speed interface shared over IP network.

Reclocking

On all SDI outputs.

GPI

GPI connector for connecting external alarms.

Universal Videohub 72

Standards

SD Format Support

625/25 PAL and 525/29.97 NTSC.

HD Format Support

1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60.
1080PsF23.98, 24, 25, 29.97, 30.
1080i50, 59.94, 60.
720p23.98, 24, 25, 29.97, 30, 50, 59.94, 60.

SDI Compliance

SMPTE 259M, SMPTE 292M,SMPTE 296M, SMPTE 310M,SMPTE 425M-A, SMPTE 425M-B,ITU-R BT.656 and
ITU-R BT.601.

2K Format Support

2048 x 1556p23.98, 24, 25.

SDI Video Rates

SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Color Precision

4:2:2 and 4:4:4 10-bit.

SDI Audio Sampling

Television standard sample rate of48 kHz and 24-bit.

SDI Color Space

YUV or RGB.

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, 3G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Software

Internal Software Upgrade

Via included firmware updater application.

Software Control

Router control included free for Windows? and Mac OS X?.

Power Requirements

Power Supply

Redundant power supply options are available.

Power Fail Protection

Router connections preserved and restored instantly at power on independently of host computer.

Physical Specifications

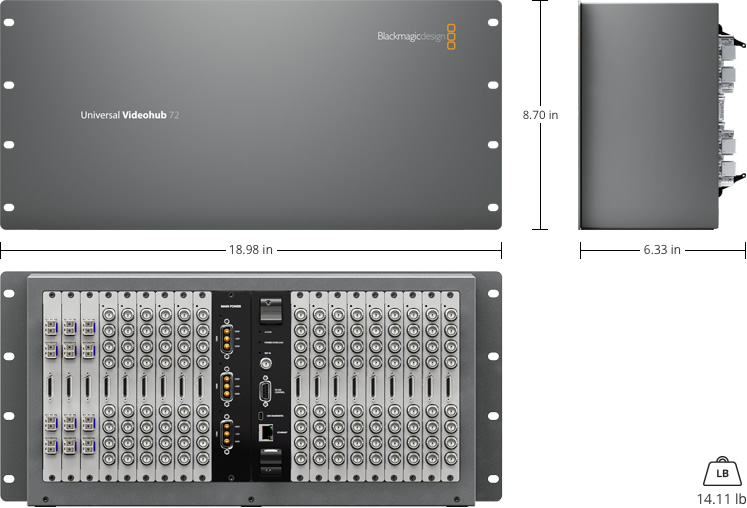

Universal Videohub 72

Physical Installation

5 rack unit size. Less than 6 inches deep.

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Universal Videohub 72

Warranty

3 Year Limited Manufacturer's Warranty.
