Blackmagic Design Smart Videohub 40x40

Blackmagic Design Smart Videohub 40x40

Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing...

Vendor :Blackmagic Design

Type :Routing And Distribution

Sold Out

Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing so that you can quickly route your video by looking at it! Smart Videohub 40x40 fits a massive 80 multi rate 6G-SDI connections in a compact two rack unit size!

Connections

SDI Video Input

40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Output

40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

Reference Input

Black burst and Tri-level sync for SD, HD and 4K.

Reference Output

Reference terminating loop output.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.

Updates

USB or Ethernet.

Router Control

40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Router Configuration

Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only.

RS-422 Router Control

1 x input for controlling router crosspoint switching.

Reclocking

On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.

Smart Videohub 40x40

Standards

SD Format Support

625/25 PAL, 525/29.97 NTSC and525/23.98 NTSC.

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

2K Format Support

2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25.

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 andITU-R BT.601.

SDI Video rates

SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and
6G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

SDI Color Precision

10-bit 4:2:2 and 4:4:4.

SDI Color Space

YUV or RGB.

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Software

Software Control

Router control included free for Windows? and Mac OS X?.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac Icon

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.

Windows Icon

Windows 7 or Windows 8.


Display

Displays

Built-in 5" LCD for video and menu settings.

Physical Installation

Physical Installation

2 rack unit size. Less than 6 inches deep.

Power Requirements

Power Fail Protection

Crosspoint connections preserved and restored instantly at power on.

Power Supply

IEC power cables required. 2 x 90 - 240V AC inputs for full redundancy.

Power Consumption

58 Watts

Physical Specifications

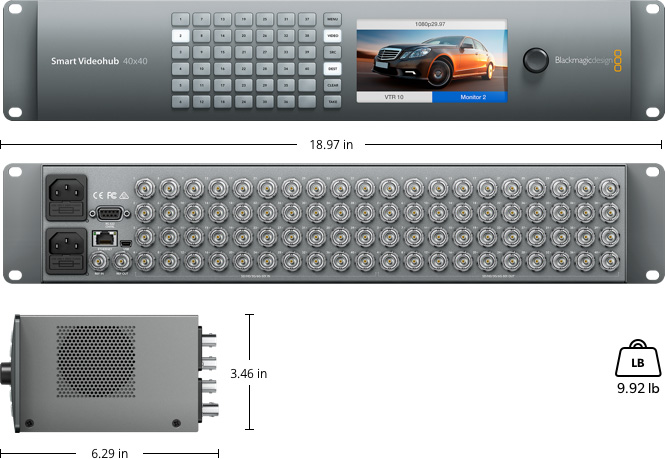

Smart Videohub 40x40

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Smart Videohub 40x40

Software CD

Warranty

12 month Limited Manufacturer's Warranty.
