Smart Videohub 12x12 is the world's most advanced Ultra HD mixed format router with built in control panel and monitoring. Ideal for small workgroups and fly away kits, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.

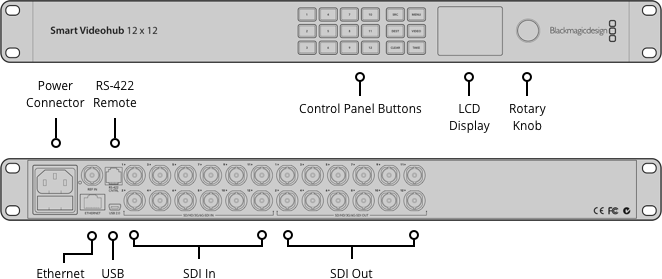

Connections
SDI Video Input
12 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Output
12 x 10 bit SD-SDI, HD-SDI and 6G-SDI.
Reference Input
Blackburst and TriSync for SD, HD and 4K.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
Updates
USB or Ethernet.
Router Control
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for setting IP address only.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.

Standards
SD Format Support
625/25 PAL, 525/29.97 NTSC and525/23.98 NTSC.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
2048 x 1080p23.98, 2048 x 1080p24,2048 x 1080p25, 2048 x 1080PsF23.98,2048 x 1080PsF24, 2048 x 1080PsF25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 4096 x 2160p23.98,4096 x 2160p24, 4096 x 2160p25,4096 x 2160p29.97, 4096 x 2160p30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 andITU-R BT.601.
SDI Video rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and
6G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4 10 bit.
SDI Color Space
YUV or RGB.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Software
Software Control
Router control included free for Windows? and Mac OS X?.
Internal Software Upgrade
Via included updater application.
Operating Systems

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.

Windows 7 or Windows 8.
Display
Displays
Built-in LCD for video and menu settings.
Physical Installation
Physical Installation
1 rack unit size. Less than 6 inches deep.
Power Requirements
Power Fail Protection
Router connections preserved and restored instantly at power on.
Power Supply
IEC power cable required. 90 - 240V AC input.
Power Consumption
24 Watts
Physical Specifications

Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Smart Videohub 12x12
Software CD
Warranty
12 month Limited Manufacturer's Warranty.
