Blackmagic Design Video Assist 4K 7"

Blackmagic Design Video Assist 4K 7"

Introducing Blackmagic Video Assist 4K Blackmagic Video Assist 4K 7” high resolution monitor with Ultra HD recorder! Video Assist 4K features a 7” high resolution screen, two...

Vendor :Blackmagic Design

Type :Professional Cameras

R14,999.00

Add to wishlist

Introducing Blackmagic Video Assist 4K

Blackmagic Video Assist 4K 7” high resolution monitor with Ultra HD recorder!

Video Assist 4K features a 7” high resolution screen, two high speed recorders for non-stop Ultra HD recording, XLR mic inputs, a built in speaker and more! The larger screen is 1920 x 1200, so you can see a full 16:9 image without the status bar covering the picture. Video Assist 4K features the latest high speed UHS-II SD card recorders and can record 1080 HD as well as Ultra HD up to 2160p30 on low cost, readily available SD cards! You also get two extremely low noise professional analog mini XLR connections so you can bypass low quality DSLR audio and connect professional microphones directly.

Now it’s easy to add professional monitoring and recording to any SDI or HDMI camera with Blackmagic Video Assist! You get a super bright touch screen display that’s much larger than the displays found on DSLR cameras. The monitor supports 3D LUTs and includes powerful focus assist and exposure tools that make it easier to accurately set focus, expose and frame shots. Blackmagic Video Assist features high speed SD card recorders for HD or Ultra HD recording in incredible 10‑bit 4:2:2 quality ProRes, DNxHD and DNxHR files in Quicktime and MXF formats. With both 7” Ultra HD and 5” HD models, Blackmagic Video Assist works with any camera that needs better quality monitoring and professional format file recording!

Shoot Better Video See and capture every detail with confidence! Whether it’s a wedding, an indie film, or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality, no matter what type of camera you use. Blackmagic Video Assist works with everything from DSLR’s to older tape based camcorders, and even the latest digital film cameras. When you’re shooting a wedding, there’s only one chance to get it right and if you’re an indie filmmaker, you want your film to look as good as a Hollywood movie when projected at festivals. Blackmagic Video Assist helps you make sure every shot is in focus and gives you professional images with the same recording quality used by major motion pictures and prime time TV shows!

Connections:

SDI Video Inputs

1

SDI Video Outputs

1

SDI Rates

270Mb, 1.5G, 3G, 6G.

HDMI Video Inputs

1

HDMI Video Outputs

1

Analog Audio Inputs

2 x balanced mini XLR with phantom power

Analog Audio Outputs

1 x 3.5 mm headphone jack.

Built in Speaker

Mono

Screen Dimensions

7 inch 1920 x 1200.

SDI Audio Inputs

2 channels embedded via 6G-SDI

SDI Audio Outputs

2 channels embedded via 6G-SDI

HDMI Audio Inputs

2 channels embedded via HDMI 2.0a

HDMI Audio Outputs

2 channels embedded via HDMI 2.0a

Remote Control

1 x 2.5mm LANC for Record Start and Stop.

SD Interface

Dual UHS-II SD slots

Storage Type

Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

Recorder Configuration

Via the device's USB port or the device's user interface.

Computer Interface

1 x Mini-B USB 2.0 connector for initial setup, software updates and Video Assist Utility software control.







Blackmagic Video Assist 4K

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084

SDI Metadata Support

HD RP188

Audio Sampling

Television standard sample rate of 48 kHz and 24‑bit.

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

REC 601, REC 709

Multiple Rate support

SDI and HDMI switches between 270 Mb/s SD, 1.5 Gb/s HD, and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD.

HDMI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

HDMI Color Precision

10-bit

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

2 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording.

Media Type

SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.

Supported Codecs

ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.

Control

Recorder Control

Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.

External Control

LANC, SDI start/stop, timecode run.

Software

Software Included

DaVinci Resolve grading software. SD card for Mac and Windows.

Operating Systems



Mac icon

Mac 10.12 Sierra,
Mac 10.13 High Sierra or later.

Windows Icon

Windows 8.1 or Windows 10.

Power Requirements

Power Supply

1 x External 12V power supply.

LP-E6 Lithium-Ion batteries not included.

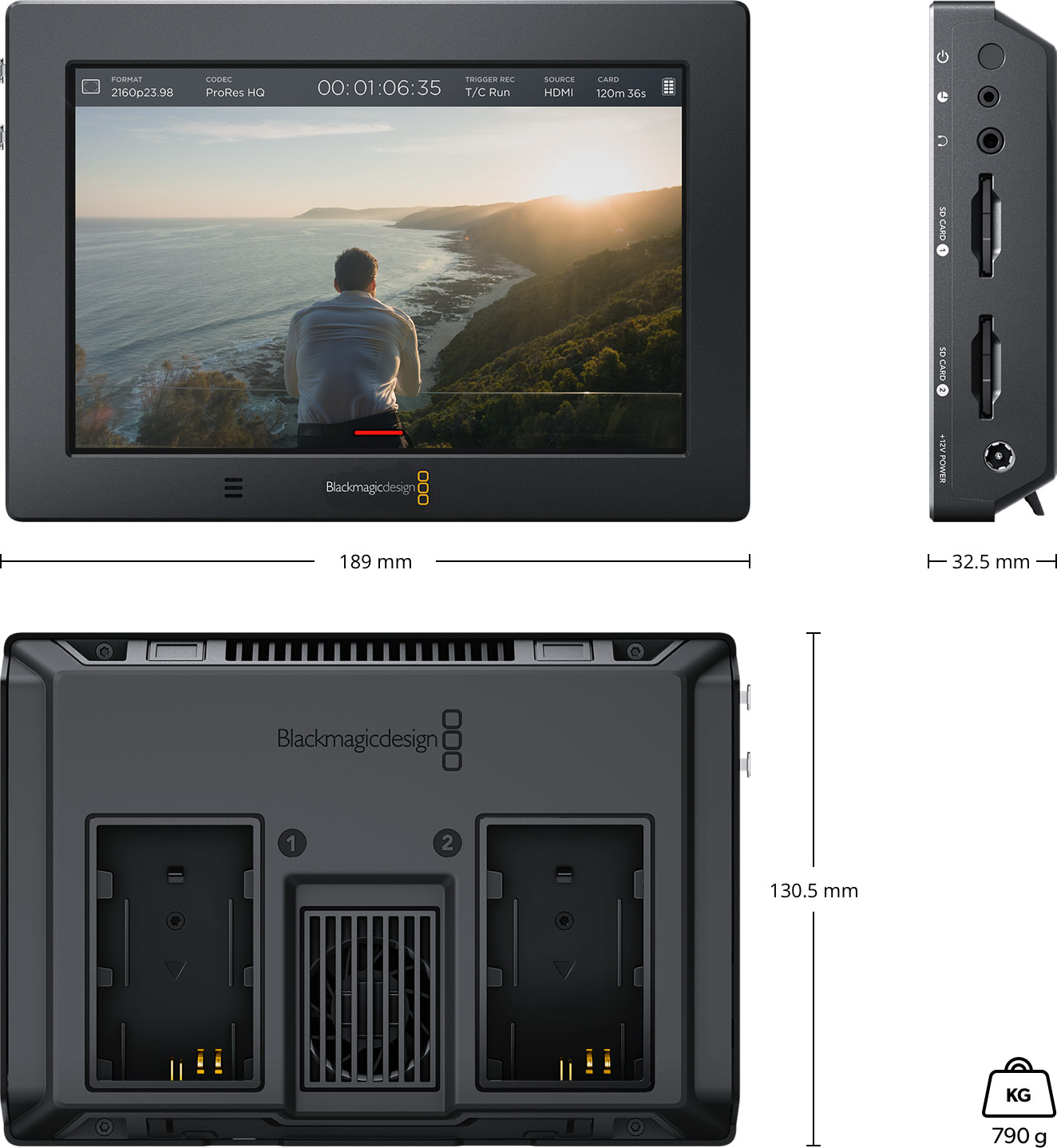

Physical Specifications

Blackmagic Video Assist 4K

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-21° to 45° C (-6° to 113° F)

Relative Humidity

0% to 90% non-condensing

Whats Included

Blackmagic Video Assist 4K

Universal power supply with international adapters

SD card with software and manual
